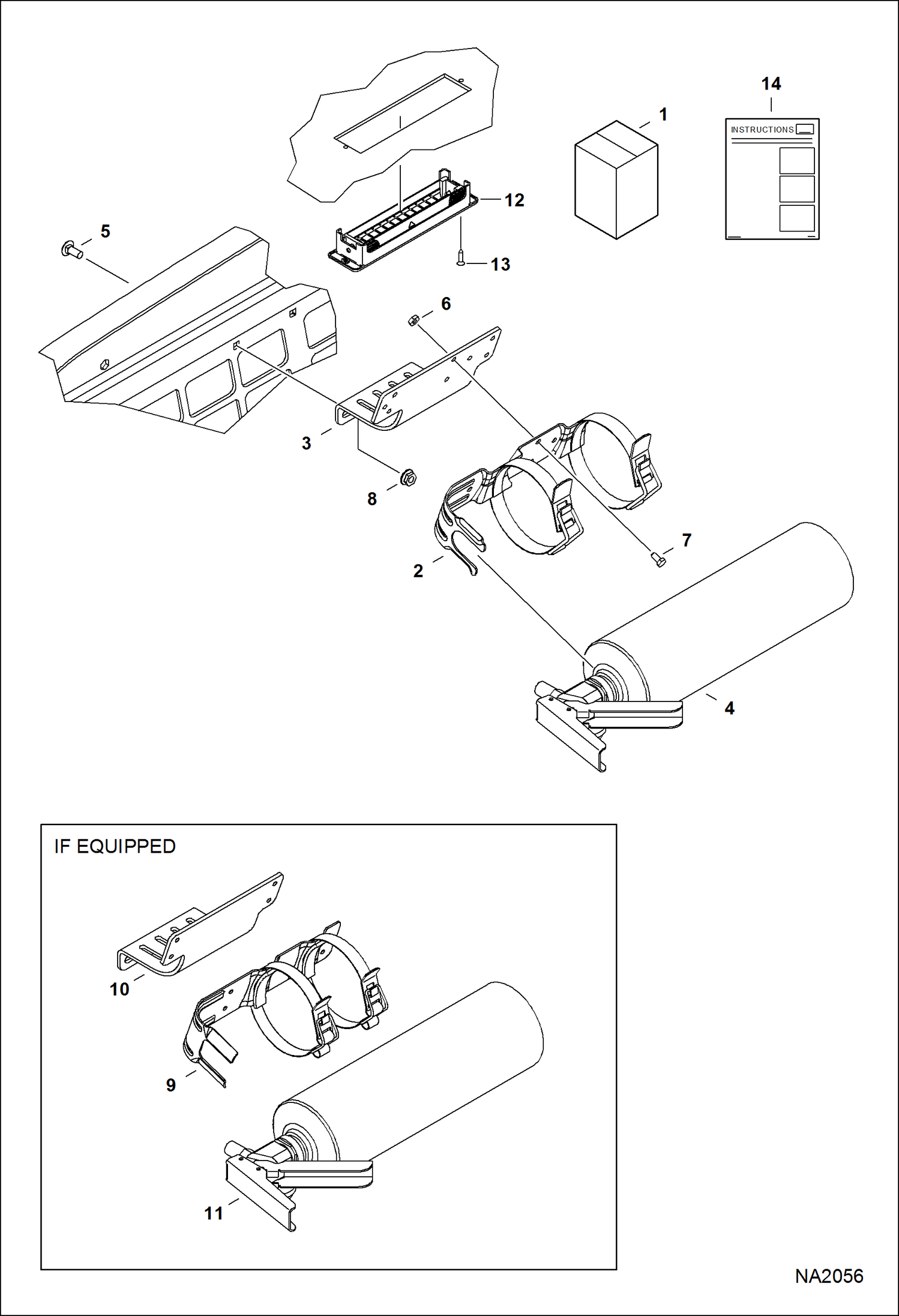

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Fire Extinguisher Kit) (M-Series) Loader

1

KIT, EXTINGUISHER FIRE NLA - Ref. 5-12 - Was 7129307 - A

1

7129307

KIT, EXTINGUISHER FIRE Ref. 2-8 &12

2

7224665

BRACKET, EXTINGUISHER FIRE red - diamond hole pattern - Use W/Ref. 3

3

7223715

BRACKET, MOUNTING Use W/Ref. 2 or 9

4

7224664

EXTINGUISHER, FIRE W/Ref. 2 - Also see Ref. 11

5

10C410

BOLT

6

12D10

NUT

7

45G1006

BOLT

8

55D4

NUT

9

BRACKET NLA - black - rectangle hole pattern - Order Ref. 2 & 3 - Was 6691173 - A

10

BRACKET NLA - rectangle hole pattern - Order Ref. 3 - Was 7166482 - C

11

EXTINQUISHER,FIRE NLA - Order Ref. 4 & reuse Ref. 9 or Also Order Ref. 3 - Was 7168164 - A

12

6987223

INSTRUCTIONS
