Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Fire Extinguisher) Loader

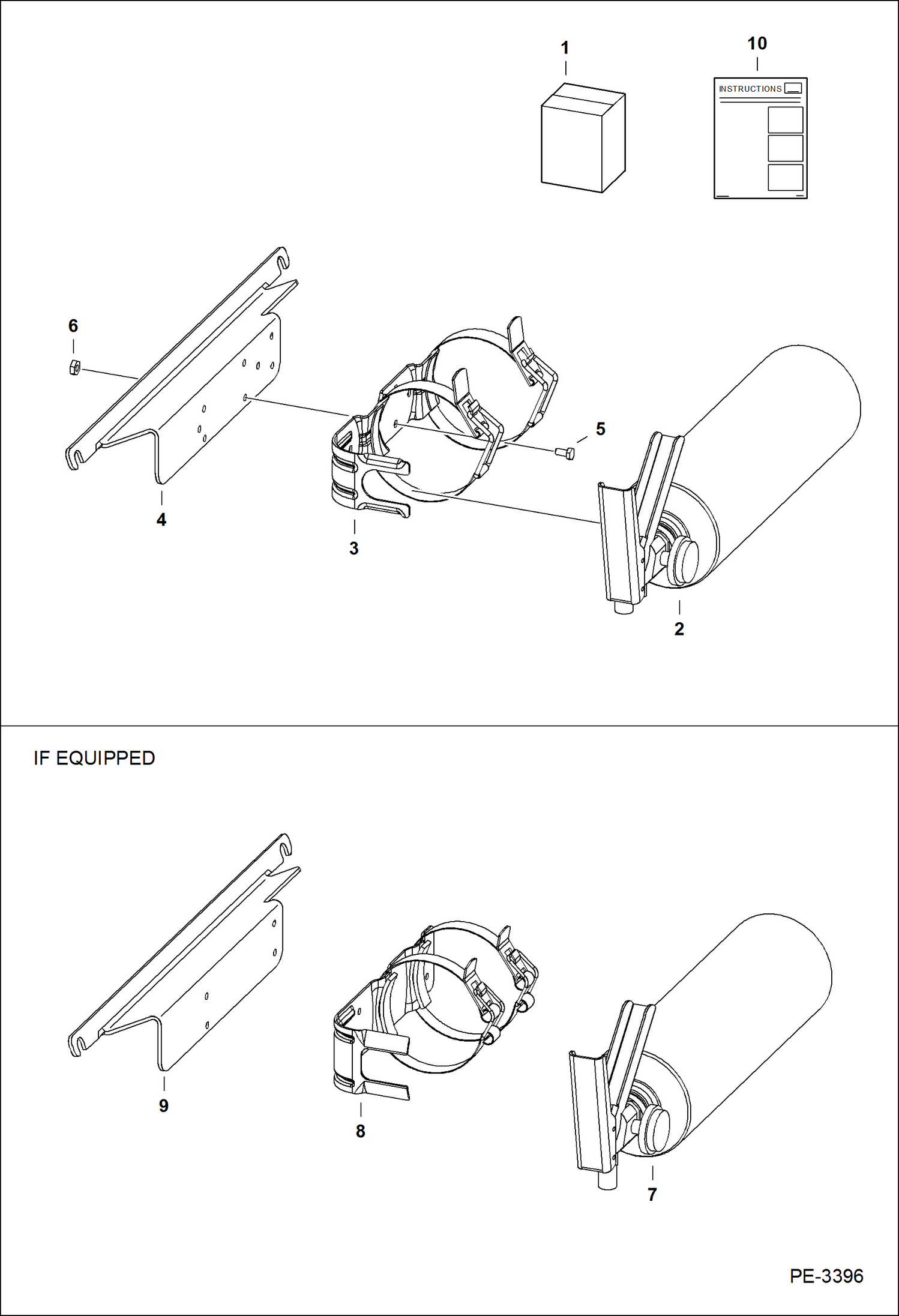

Схема запчастей Bobcat FORESTRY CUTTER - FORESTRY CUTTER (Fire Extinguisher) Loader

Артикул

Название

Примечание

Количество

1

KIT, EXTINGUISHER FIRE NLA - Ref. 5-10 - Was 7147411 - A

1

7147411

KIT, EXTINGUISHER FIRE Ref. 2-6 & 10

2

7224664

EXTINGUISHER, FIRE W/Ref. 3

3

7224665

BRACKET, EXTINGUISHER FIRE red - diamond hole pattern - use W/Ref. 4

4

7223716

BRACKET, MOUNTING

5

45G1006

BOLT

6

12D10

NUT

7

EXTINQUISHER,FIRE NLA - Order Ref. 2 and reuse Ref. 8 or Also Order Ref. 4 - Was 7168164 - A

8

BRACKET NLA - black - rectangle hole pattern - Order Ref. 2 & 3 - Was 6691173 - A

9

BRACKET NLA - rectangular hole pattern - Order Ref. 4 - Was 7143373 - A

10

6901025

INSTRUCTIONS

Выбрано товаров: 11
