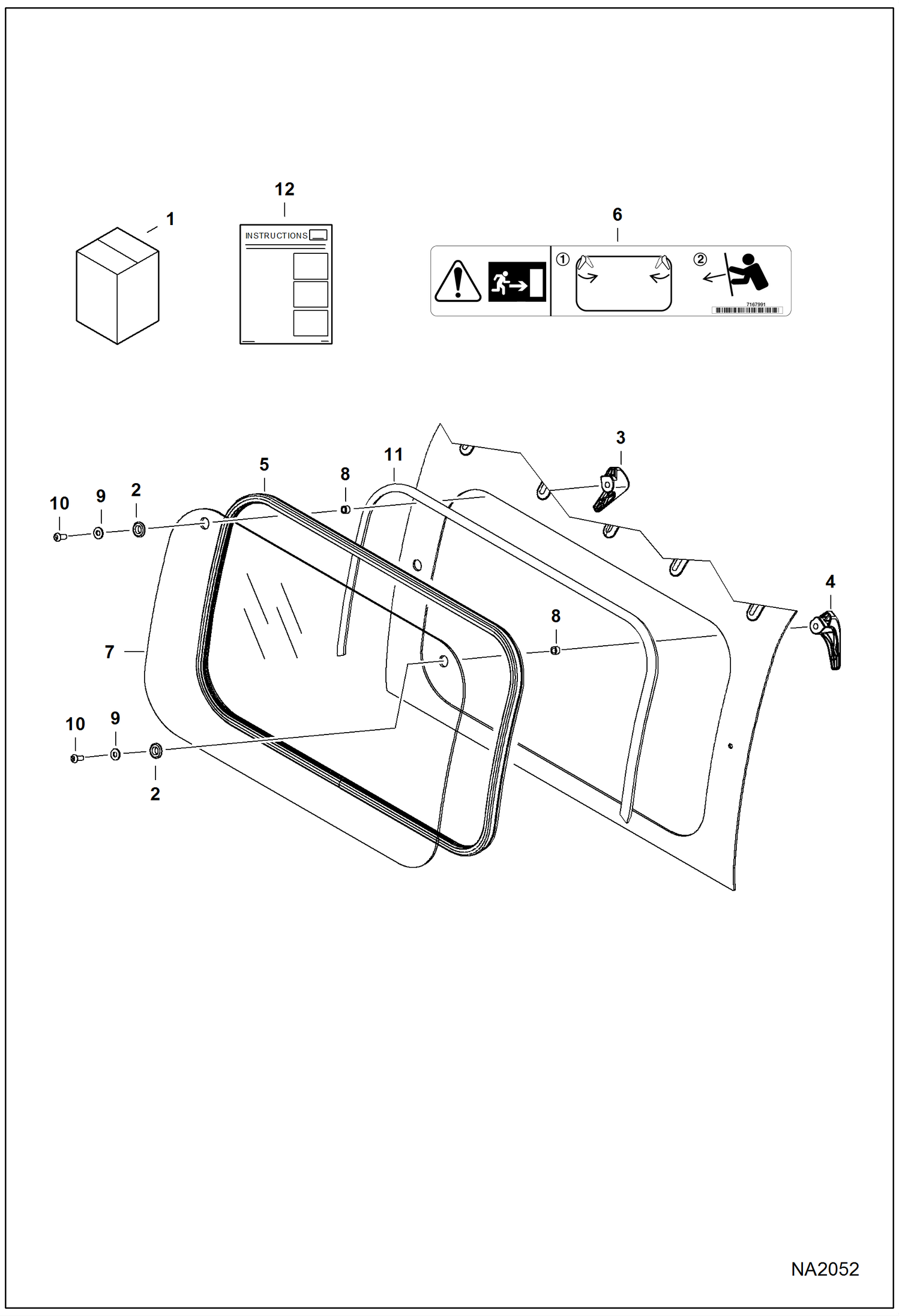

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Rear) (Polycarbonate) (678 mm) (26.7) x (390 mm) (15.37) Cab Opening (M-Series) Loader

1

KIT, WINDOW REAR See Illustration FORESTRY CUTTER/ NA8179 - NLA - polycarbonate - Ref. 2-12 - Order 7214673 rear window kit - Was 7128389 - C

2

7121425

BUSHING

3

7150151

LATCH, WINDOW LEFT

4

7150152

LATCH, WINDOW RIGHT

5

7163988

SEAL, WINDOW REAR

6

7167991

DECAL, EXIT REAR

7

WINDOW, CAB REAR See Illustration FORESTRY CUTTER/ NA8179 - NLA - Order 7214673 rear window kit - Was 7183022 - C

8

7185137

SPACER

9

25E14

WSHR

10

53C516

BOLT

11

6648416

SEAL BULK /FT 1371,6mm (54'') - sold per foot

12

6987229

INSTRUCTIONS
