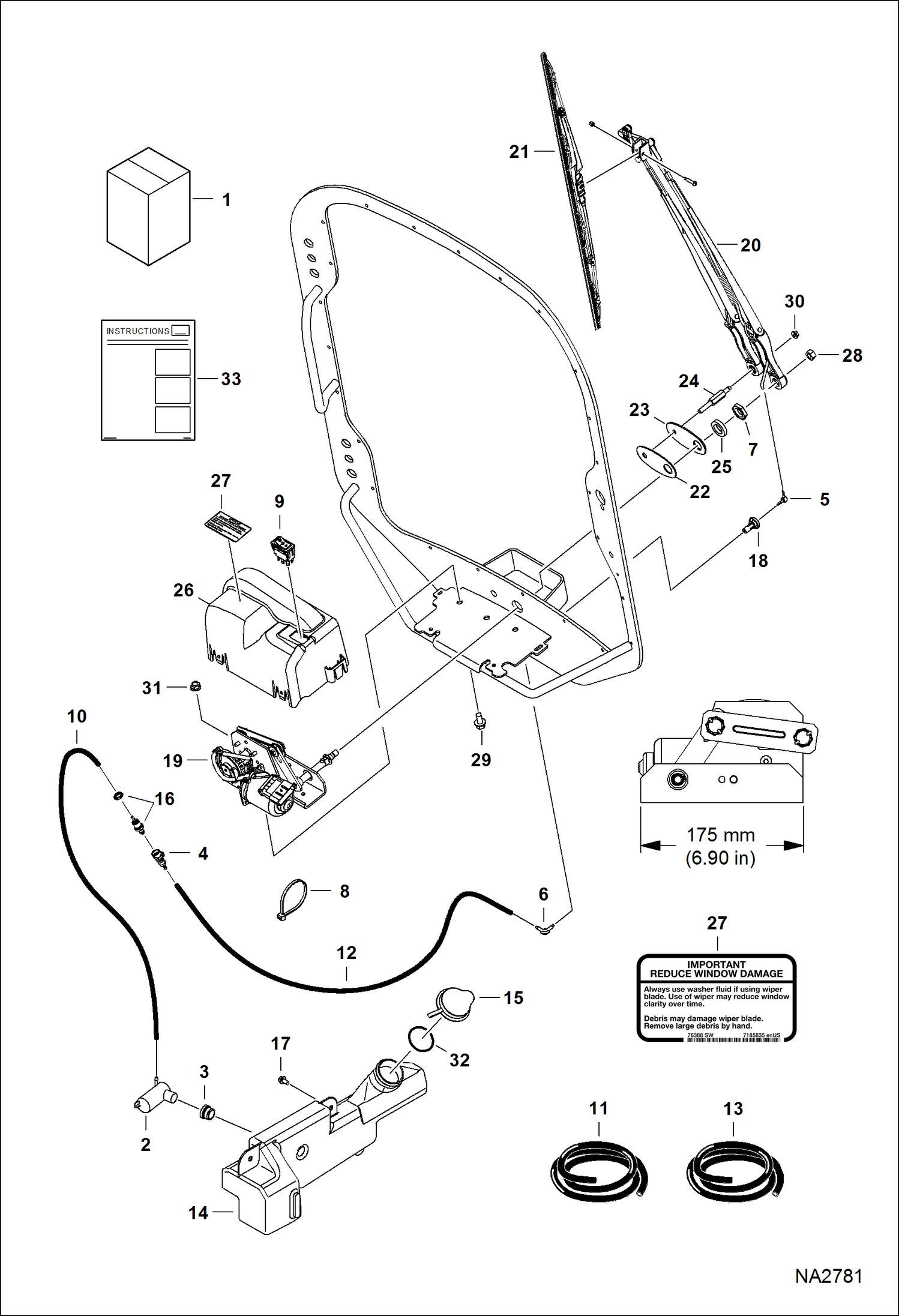

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Wiper Kit) (M-Series) Loader

1

7196560

KIT, FORESTRY WIPER Ref. 2-32

2

6664554

PUMP, WIPER WASHER

3

6666766

GROMMET

4

6675298

COUPLER, BODY

5

6676500

ELBOW

6

6676917

ELBOW

7

6681905

NUT

8

6690690

STRAP, TIE

9

7001709

SWITCH FRONT WIPER

10

HOSE NLA - 48'' (1,219,2 mm) - Order Ref. 11

11

6708310

HOSE, BULK/FT 100 clear - 0.154'' ID - sold per foot

12

HOSE NLA - 31'' (787,4 mm) long - Order Ref. 13

13

6676003

HOSE, BULK/FT black - 0.109'' ID - sold per foor

14

7232658

TANK, WASHER Was 7163259 - A

15

7163263

CAP WASHER BOTTLE

16

7165972

COUPLER INSERT

17

7166190

SCREW THREAD ROLLING

18

7167177

GROMMET WIPER

19

7168952

WIPER MOTOR

20

7168953

ARM WIPER ASSY

21

7168954

BLADE WIPER ASSY

22

7168955

GASKET

23

7168956

PLATE ADAPTOR

24

7168957

PLATE STUD ADAPTOR

25

7180125

SPACER

26

7184333

COVER

27

7185835

DECAL, IMPORTANT

28

2DM10

NUT

29

31C612

BOLT

30

51DM6

NUT

31

97D6

NUT 10

32

7188097

SEAL

33

6990017

INSTRUCTIONS
