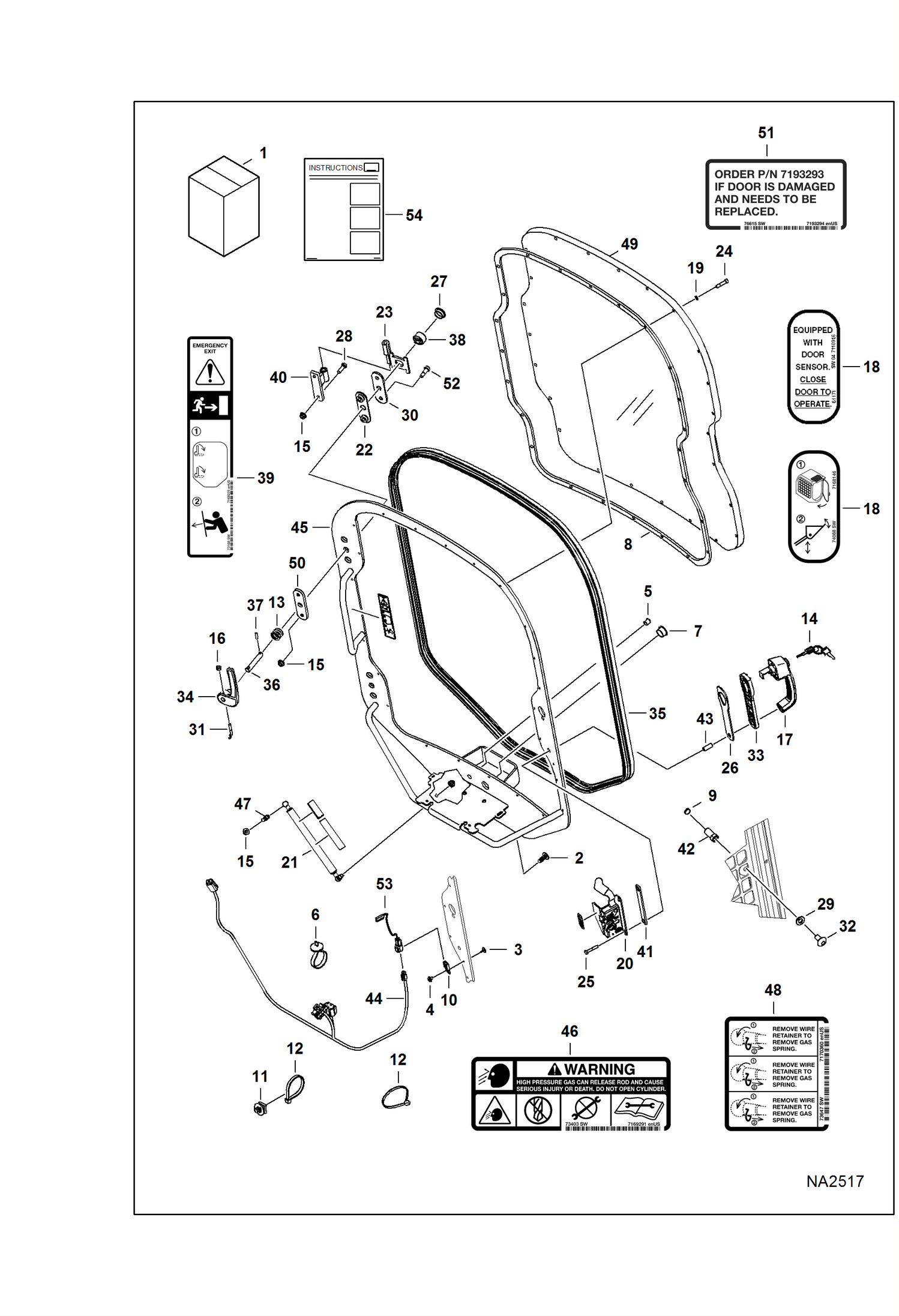

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Forestry Door) (M-Series) Loader

1

7174127

KIT, DOOR FORESTRY Ref. 2-26 & 28-54 - for complete Forestry Applications Kit Order SALES #7174126

2

7019019

RETAINER, HOLDER

3

6665321

RIVET male

4

6665322

RIVET female

5

7019020

PLUG

6

6675734

STRAP, TIE

7

6697942

PLUG, NYLON

8

7171103

SEAL, WINDOW

9

6677192

SENSOR, MAGNETIC

10

6665000

CLIP

11

6690688

TREE MOUNT

12

6690690

STRAP, TIE 203 mm (8'') long - not in kit

12

6624289

STRAP, TIE 387,4 mm (15.25'') long

13

6704453

SPRING

14

6693241

KEY 10 single key W/O ring - Was 6709527 - D

15

97D5

NUT

16

59D4

NUT 5

17

7109662

HANDLE, LATCH DOOR

18

DECAL, SAFETY NLA - door sensor - Was 7110316 - A

18

NLA - EMEA - no-text - Was 7168146 - A

19

7131796

WASHER

20

7109660

LATCH

21

7142371

SPRING GAS DOOR

22

7148289

SEAL DOOR HINGE

23

7193725

HINGE, DOOR CAB Was 7150817 - B

24

38C512

BOLT

25

1CM635

BOLT

26

7160841

SEAL HANDLE DOOR

27

7161429

PLUG

28

17C516

BOLT

29

18EM1224

WASHER

30

7164590

DOOR PLATE

31

17C428

BOLT

32

10C816

BOLT

33

7166205

SPACER HANDLE

34

7186972

LEVER

35

7222790

SEAL, DOOR Was 7167652 - A

36

7167844

SHAFT

37

7167845

PIN

38

7167846

WASHER CAST

39

7168025

DECAL EMERGENCY DOOR

40

7183872

HINGE, MOUNT SWIVEL

41

7180124

SPACER

42

7175151

STRIKER, DOOR

43

7174841

SPACER, HANDLE

44

7171105

HARNESS, DOOR CAB

45

7171104

FRAME, DOOR CAB

46

7169291

DECAL warning

47

7169849

FITTING BALLSTUD

48

7170360

DECAL, SPRING REMOVAL

49

WINDOW, DOOR CAB NSS See Illustration FORESTRY CUTTER/ NA2760 NSS - Was 7171099 - A

50

7171102

PLATE, HINGE

51

7193294

DECAL, SERVICE

52

38C610

BOLT

53

7195485

HARNESS

54

6987489

INSTRUCTIONS
