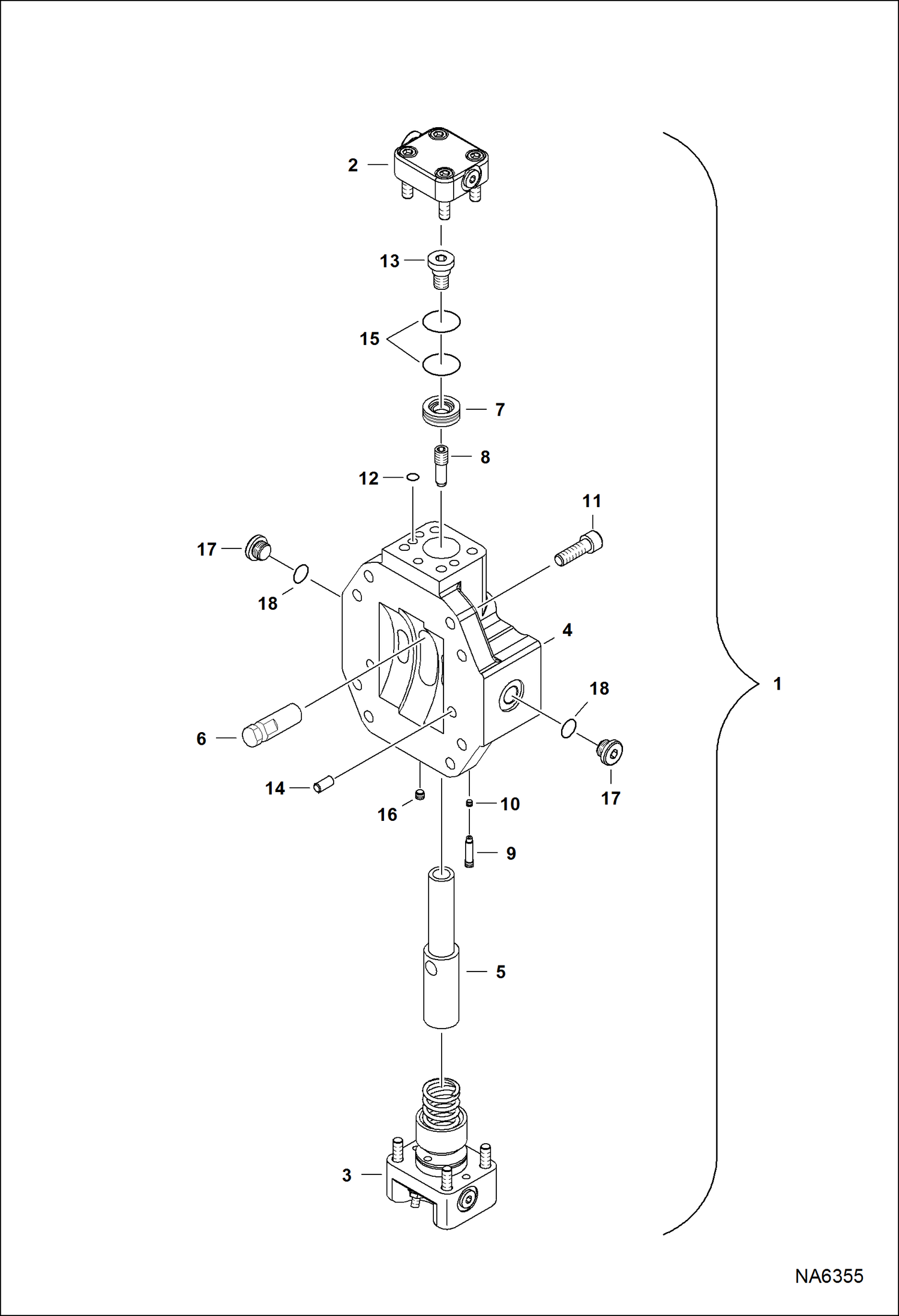

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Motor Control) (FRC50 ATSY) (FRC60 ATV1) Loader

1

7023871

HOUSING, CONTROL MOTOR Ref. 2-18

2

COVER, HOUSING CONTROL MOTOR See Illustration FORESTRY CUTTER/ NA6356

3

HOUSING, MOTOR See Illustration FORESTRY CUTTER/ NA6357

4

7023890

PLATE

5

7023891

PISTON, POSITIONING

6

7023892

TRUNNION, POSITIONING

7

7023885

PISTON, MOTOR W/Ref. 15

8

7023893

PIN

9

7023894

VALVE, CHECK

10

6967749

BUSH Was 7023895 - A

11

7023896

BOLT

12

6682297

O-RING

13

6967755

SCREW Was 7023898 - A

14

6967757

PIN Was 7023899 - A

15

O-RINGS NSS - Order Ref. 7

16

7023900

PLUG

17

6682281

SCREW Was 7023901 - A

18

7024092

O-RING
