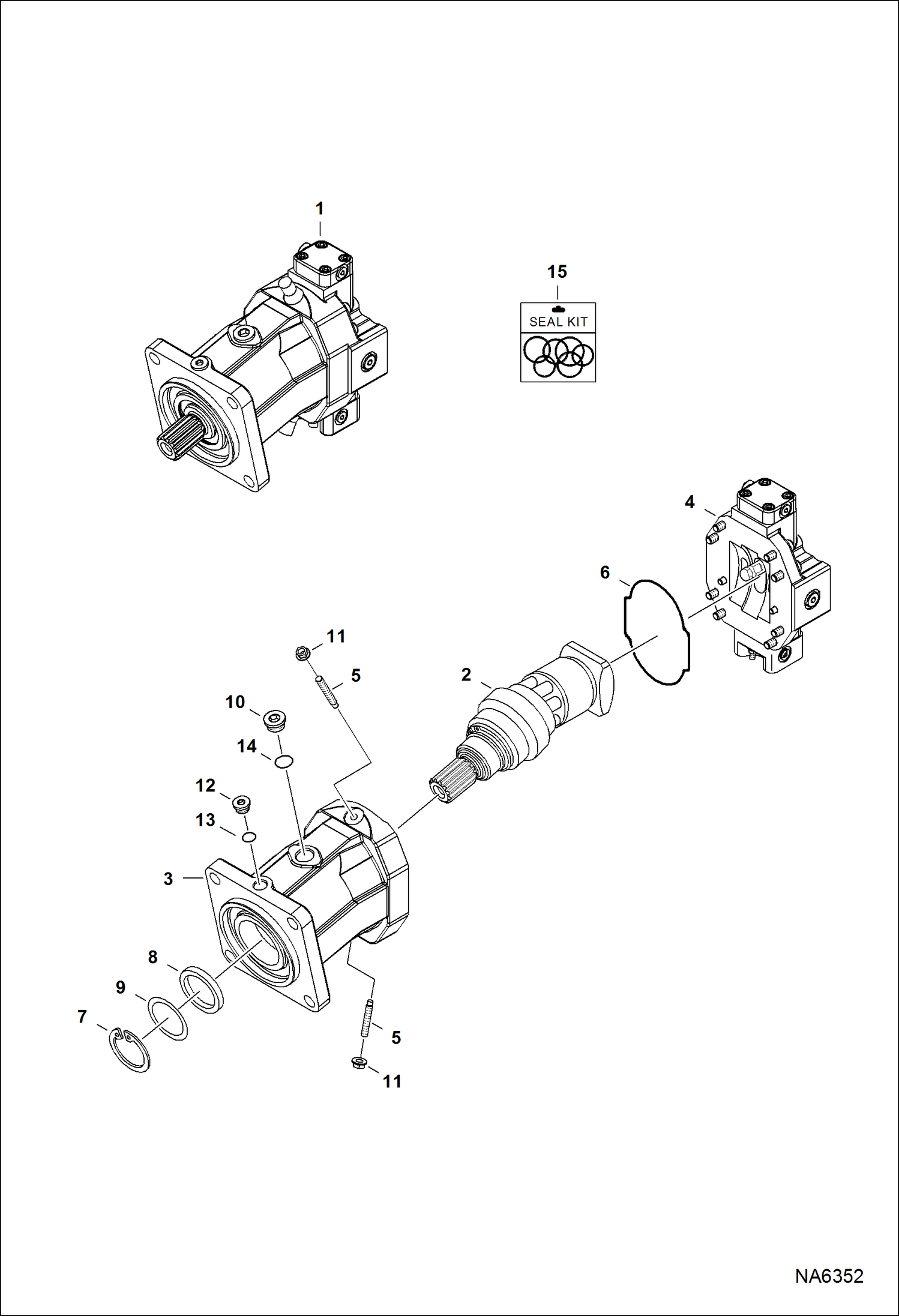

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Motor) (FRC50 ATSY) (FRC60 ATV1) Loader

1

7023870

MOTOR, HYD Ref. 2-14

1

MOTOR, HYD NLA - Ref. 2-14 - Was 7023870REM - A

2

ROTARY GROUP See Illustration FORESTRY CUTTER/ NA6353

3

7023872

HOUSING, MOTOR

4

CONTROL, MOTOR See Illustration FORESTRY CUTTER/ NA6355

5

6682287

SCREW adjustment

6

7023876

O-RING

7

7023874

RING, RETAINING

8

7023921

SEAL, RING

9

7023875

PLATE

10

6692727

SCREW W/Ref. 14

11

6682288

NUT

12

6671843

PLUG Was 7023873 - A

13

7024091

O-RING

14

6682936

O-RING

15

7023922

KIT, SEAL Ref. 6, 8, 14 & (2) each of Ref. 11 & 13
