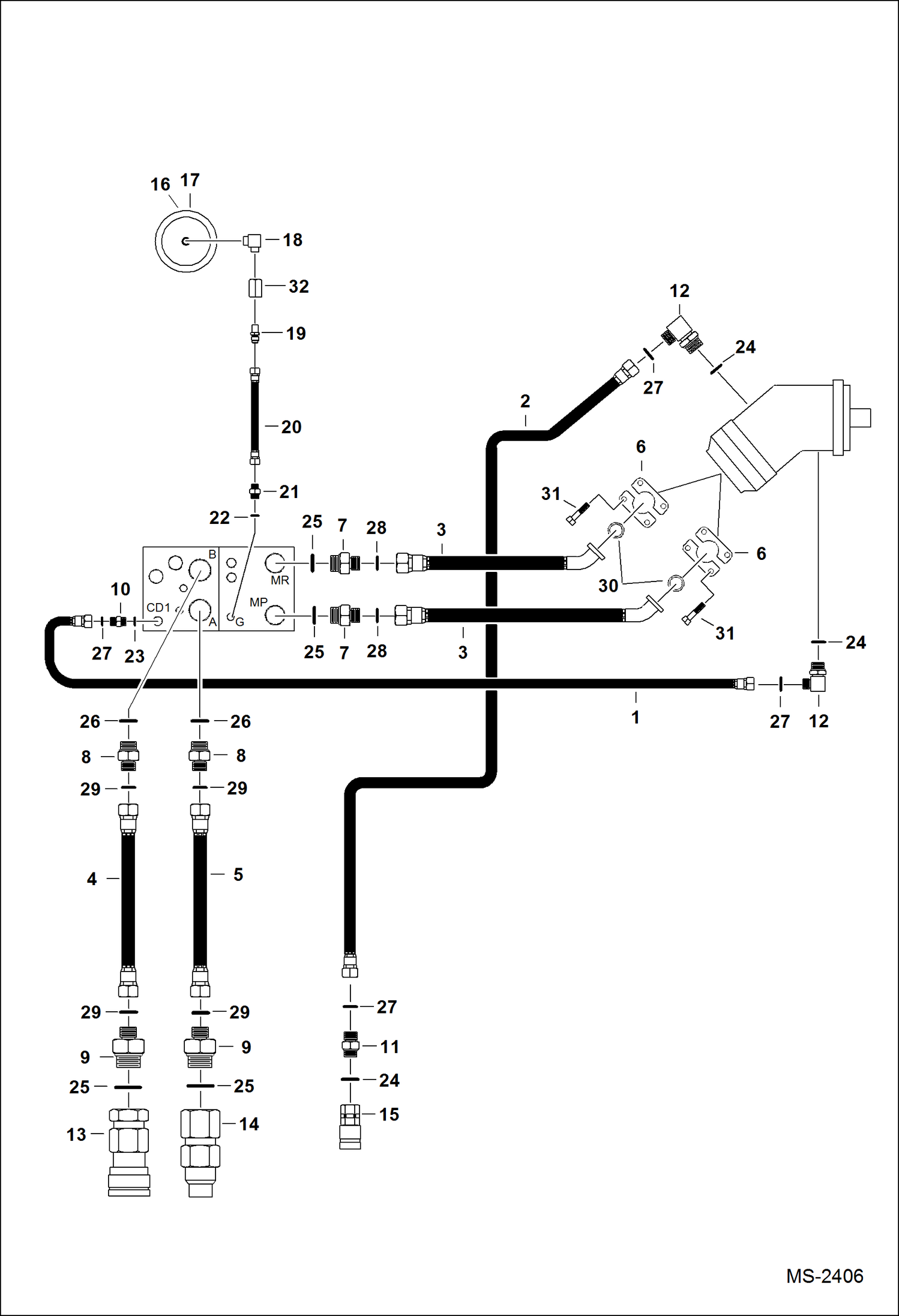

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Hydraulic Circuitry) (FRC50 ADTN) (FRC60 A6ZB) Loader

1

6693040

HOSE for 60'' Forestry Cutter

1

7003509

HOSE for 50'' Forestry Cutter

2

6693039

HOSE for 60'' Forestry Cutter

2

7003508

HOSE for 50'' Forestry Cutter

3

HOSE NLA - for 60'' Forestry Cutter - Order 7000440 hose - Was 6693037 - A

3

7000440

HOSE for 60'' Forestry Cutter

3

7003507

HOSE for 50'' Forestry Cutter

4

6693185

HOSE 86'' (2184 mm) long - both straight ends

4

7017073

HOSE, HYD 86'' (2184 mm) long - one straight end, one 45 degree end

5

6693186

HOSE 88'' (2235 mm) long - both straight ends

5

7017074

HOSE, HYD 88'' (2235 mm) long - one straight end, one 45 degree end

6

6693035

KIT, FLANGE

7

6693187

ADAPTER

8

6693188

ADAPTER

9

6693189

ADAPTER

10

6693031

ADAPTER

11

6693190

ADAPTER

12

6693034

ELBOW

13

6687636

COUPLER, FF FEMALE straight

14

6688454

COUPLER, FF MALE straight

15

6667805

COUPLER, FF FEMALE straight - case drain

16

6692632

GAUGE, PRESSURE

17

6692605

GASKET For pressure gauge - 4''

17

7028395

DAMPER rubber - For pressure gauge - 6 1/8''

18

6693195

ELBOW

19

6693196

ADAPTER

20

6692627

HOSE

21

6692628

ADAPTER

22

79K4

O RING 10

23

79K6

O RING 10

24

79K8

O RING 10

25

79K12

O RING 10

26

79K16

O RING 10

27

58K012

O-RING 10

28

58K018

O-RING 10

29

58K21

O RING 10

30

58K214

O RING 10

31

17C624

BOLT 5

32

7003476

SNUBBER

33

VALVE See Illustration FORESTRY CUTTER/ MS2377

34

7029552

RING, RETAINING large

35

7029551

RING, RETAINING small
