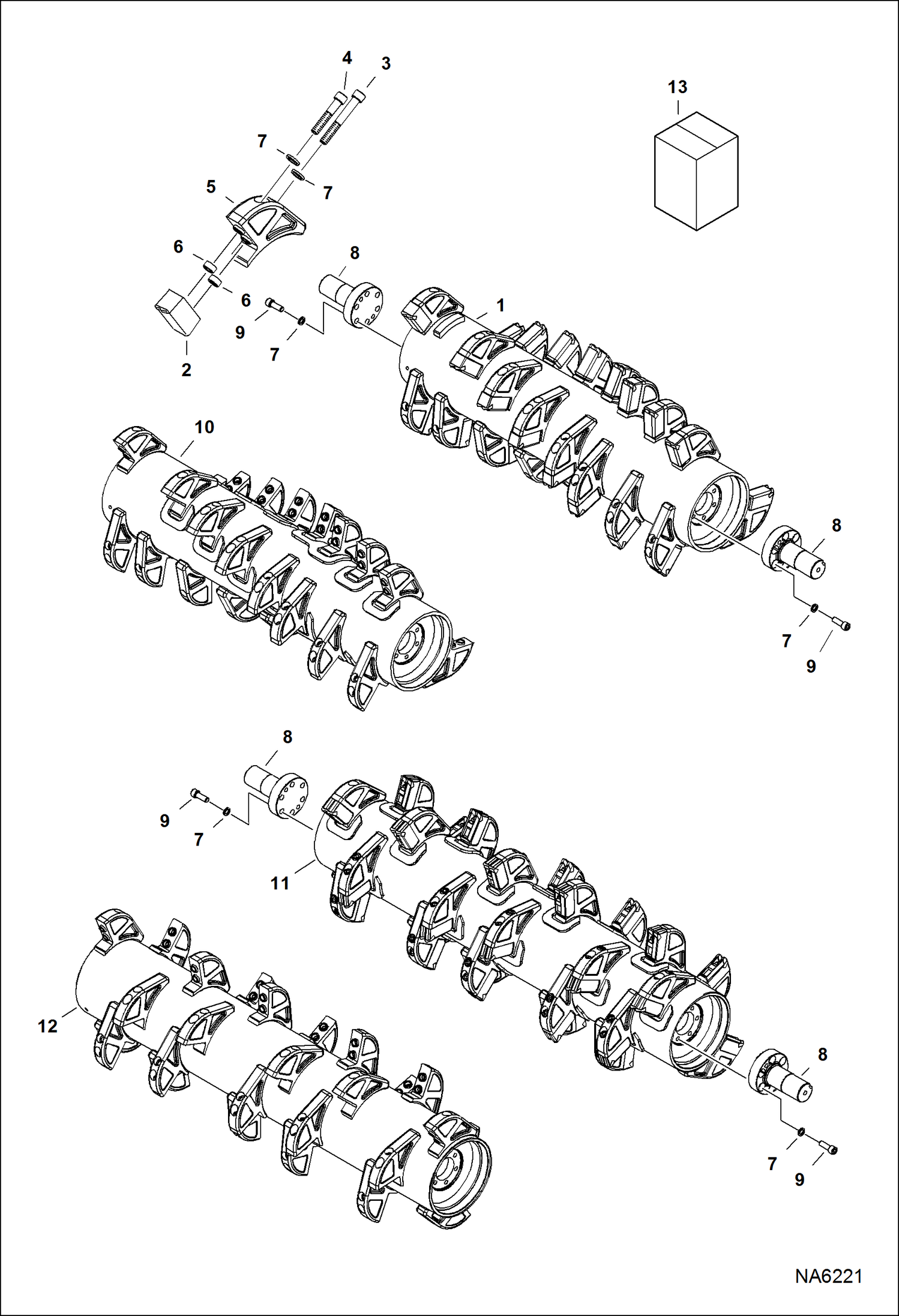

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Rotor Assembly) (103 mm) (4.0625) Tool Holder (FRC50 ADTN) (FRC60 A6ZB) Loader

1

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA6328 - NLA - 50'' - Ref. 2-10 - Order 7023552 rotor assy & (2) of 7023554 flange - Was 7003503 - A

2

TOOL NLA - Order Ref. 13 - Was 6692660 - B,D

3

6692571

BOLT 102 mm (4.00'') long - grade 8

4

7020616

BOLT 82,6 mm (3.25'') long - grade 8 - Was 6692570 - A

5

6692569

HOLDER weld-on - W/Ref. 6 - (24) for 50'', (30) for 60''

6

6698139

BUSHING pressed into Ref. 5

7

WASHER NLA - two piece gray - Was 6692607 - A

7

7020618

WASHER one piece black - Was 7010329 - A

8

6692609

SHAFT

9

6692608

BOLT

10

ROTOR NLA - 50'' - W/Ref. 5 & 6 - Order Ref. 1 - Was 7017877 - A

11

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA6329 - NLA - 60'' - Ref. 2-9 & 12 - Order 7023575 rotor assy & (2) of 7023554 flange - Was 7010514 - A

12

7015283

ROTOR NLA - 60'' - W/Ref. 5 & 6 - Order Ref. 11 - Was 7015283 - A

13

6987407

KIT, TOOL ASSY Ref. 2, 3, 4 & (2) of Ref. 7 - (24) for 50'', (30) for 60''
