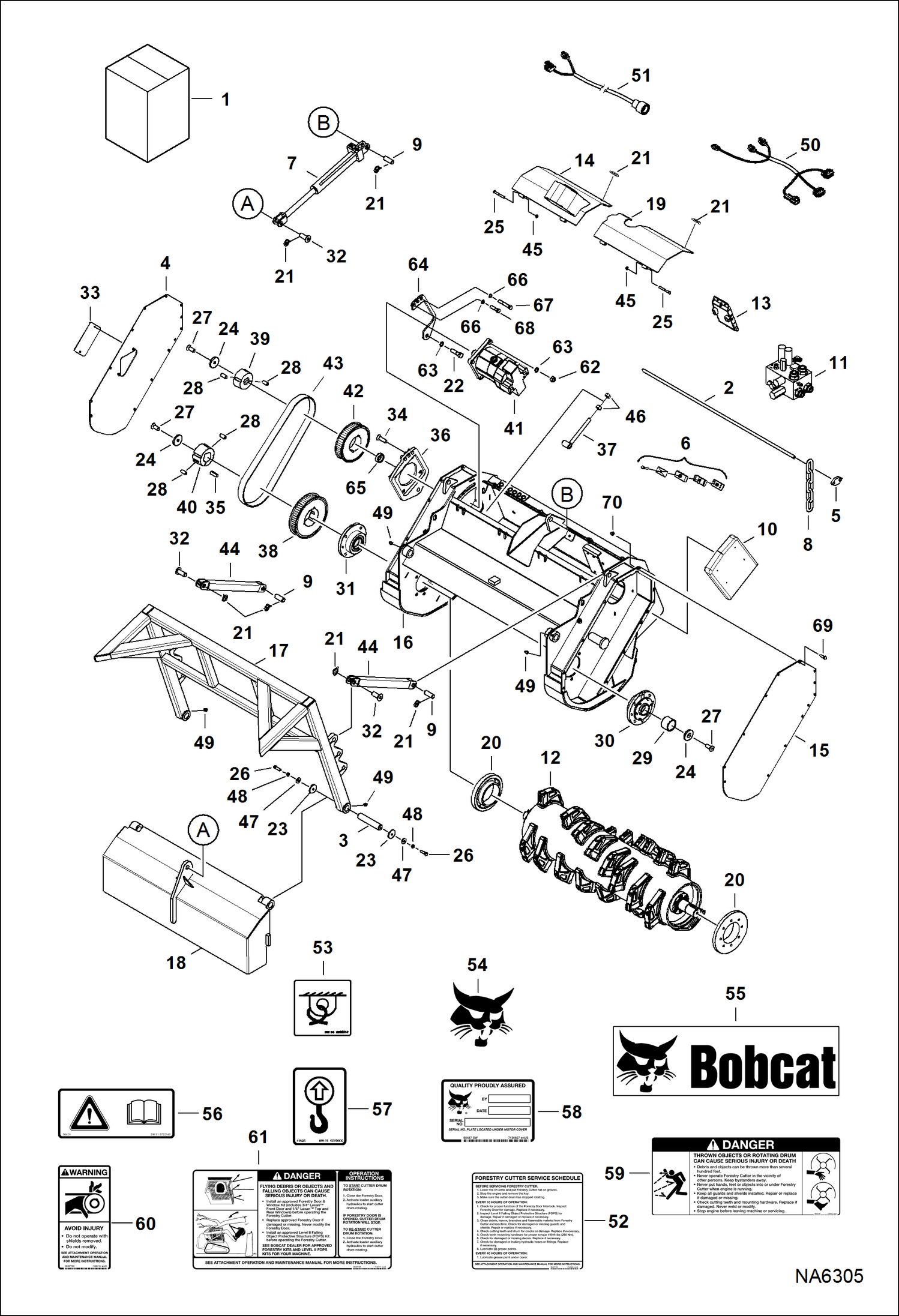

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Main Frame) (FRC50 ATSY) Loader

1

FORESTRY CUTTER SALES #7204123 - 50''

2

7020402

ROD

3

7020403

PIN Use W/ gate option & push bar

4

7020404

COVER, BELT

5

7020405

RETAINER, HOLDER

6

6693194

CLAMP

7

CYLINDER, GATE See Illustration FORESTRY CUTTER/ NA2840

8

7013174

CHAIN

9

7003504

PIN

10

7020407

HOLDER, MANUAL

11

VALVE See Illustration FORESTRY CUTTER/ NA2844

12

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA6328

13

6678675

CONTROLLER, ACD

14

7020411

COVER, MOTOR See Illustration FORESTRY CUTTER/ NA6339 - Ref. 19 & 22-27 - RH - W/pressure gauge & fittings

15

7020412

COVER, BELT

16

7023553

FRAME, MAIN ASSY

17

7020414

BAR

18

7020415

GATE

19

7020416

COVER, MOTOR LH

20

7023554

FLANGE, ROTOR

21

7020418

PIN

22

7023574

BOLT

23

6692588

WASHER

24

6692589

WASHER

25

7020419

BOLT

26

7020420

BOLT

27

7020422

BOLT

28

7020423

SCREW, SET

29

6692591

SPACER

30

BEARING ASSY See Illustration FORESTRY CUTTER/ B26528 - floating

31

BEARING ASSY See Illustration FORESTRY CUTTER/ B26527 - fixed

32

6692593

PIN

33

6692594

COVER, ACCESS

34

7023572

BOLT

35

6692597

KEY BH056-18

36

7023564

MOUNT, MOTOR ASSY

37

6692599

TENSIONER

38

7023555

PULLEY

39

7023557

BUSHING

40

7023558

BUSHING

41

MOTOR See Illustration FORESTRY CUTTER/ NA6352

42

7023556

PULLEY

43

7023559

BELT, DRIVE

44

6692606

BAR

45

7020424

NUT

46

7020425

NUT

47

7020426

WASHER

48

7020427

WASHER

49

7020428

FITTING, GREASE

50

7135123

HARNESS

51

6725368

HARNESS 7-pin

52

7210797

DECAL, SERVICE

53

6595014

DECAL tie down

54

6700191

DECAL, LOGO BOBCAT HEAD

55

6731332

DECAL logo

56

6732148

DECAL op manual

57

6809609

DECAL

58

7136627

DECAL quality

59

7136715

DECAL danger

60

7136716

DECAL warning

61

7136717

DECAL danger

62

7023565

NUT

63

7023566

WASHER

64

7023568

MOUNT, MOTOR ASSY inner

65

7023569

SPACER

66

7020618

WASHER

67

7023570

BOLT

68

7023571

BOLT

69

7023867

BOLT

70

7023866

NUT
