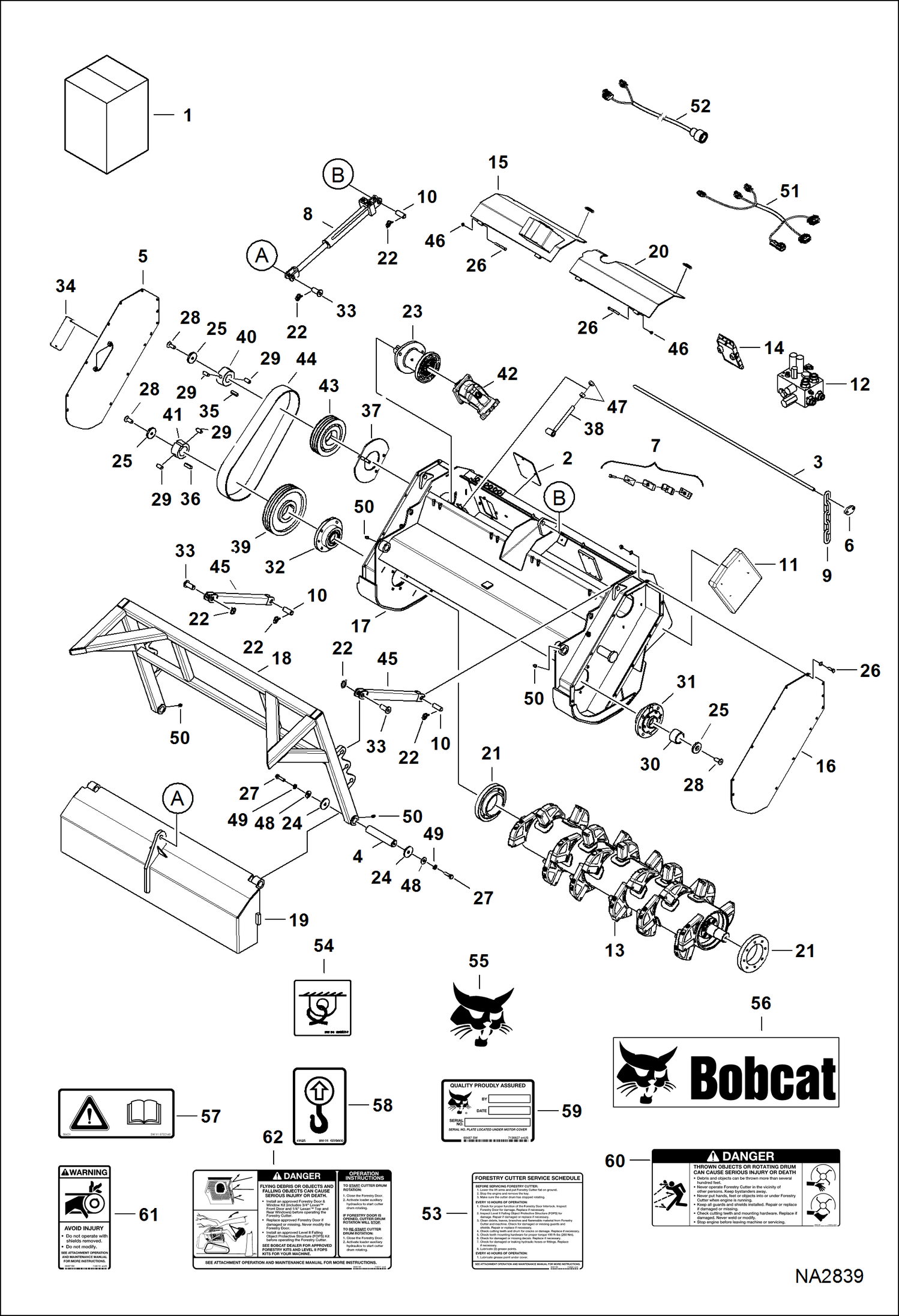

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Main Frame) (FRC60 ANR5) Loader

1

FORESTRY CUTTER SALES #7194305 - 60''

2

7020434

COVER, ACCESS

3

7020433

ROD

4

7020403

PIN Use W/ gate option & push bar

4

6693022

PIN Use W/ push bar only

5

7020404

COVER, BELT

6

7020405

RETAINER, HOLDER

7

6693194

CLAMP

8

CYLINDER, GATE See Illustration FORESTRY CUTTER/ NA2840

9

7013174

CHAIN

10

7003504

PIN

11

7020407

HOLDER, MANUAL

12

VALVE See Illustration FORESTRY CUTTER/ NA2844

13

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA2835

14

6678675

CONTROLLER, ACD Was 7020410 - A

15

7020431

COVER, MOTOR See Illustration FORESTRY CUTTER/ NA2829 - Ref. 19 & 22-27 - RH - W/pressure gauge & fittings

16

7020412

COVER, BELT

17

7020432

FRAME, MAIN ASSY

18

7020430

BAR

19

7020429

GATE

20

7020614

COVER, MOTOR LH

21

7020417

SEAL, DUST

22

7020418

PIN

23

BEARING ASSY See Illustration FORESTRY CUTTER/ NA2838

24

6692588

WASHER

25

6692589

WASHER

26

7020419

BOLT

27

7020420

BOLT

28

7020422

BOLT

29

7020423

SCREW, SET

30

6692591

SPACER

31

BEARING ASSY See Illustration FORESTRY CUTTER/ B26528 - floating

32

BEARING ASSY See Illustration FORESTRY CUTTER/ B26527 - fixed

33

6692593

PIN

34

6692594

COVER, ACCESS

35

6692596

KEY

36

6692597

KEY

37

6692598

RETAINER

38

6692599

TENSIONER

39

7010318

PULLEY

40

6692601

BUSHING

41

6692602

BUSHING

42

MOTOR See Illustration FORESTRY CUTTER/ B26593

43

6692604

PULLEY

44

6692574

BELT

45

6692606

BAR

46

7020424

NUT

47

7020425

NUT

48

7020426

WASHER

49

7020427

WASHER

50

7020428

FITTING, GREASE

51

7135123

HARNESS

52

6725368

HARNESS 7-pin

53

7136960

DECAL service

53

7210797

DECAL, SERVICE

54

6595014

DECAL tie down

55

6700191

DECAL, LOGO BOBCAT HEAD

56

6731332

DECAL logo

57

6732148

DECAL op manual

58

6809609

DECAL

59

7136627

DECAL quality

60

7136715

DECAL danger

61

7136716

DECAL warning

62

7136717

DECAL danger
