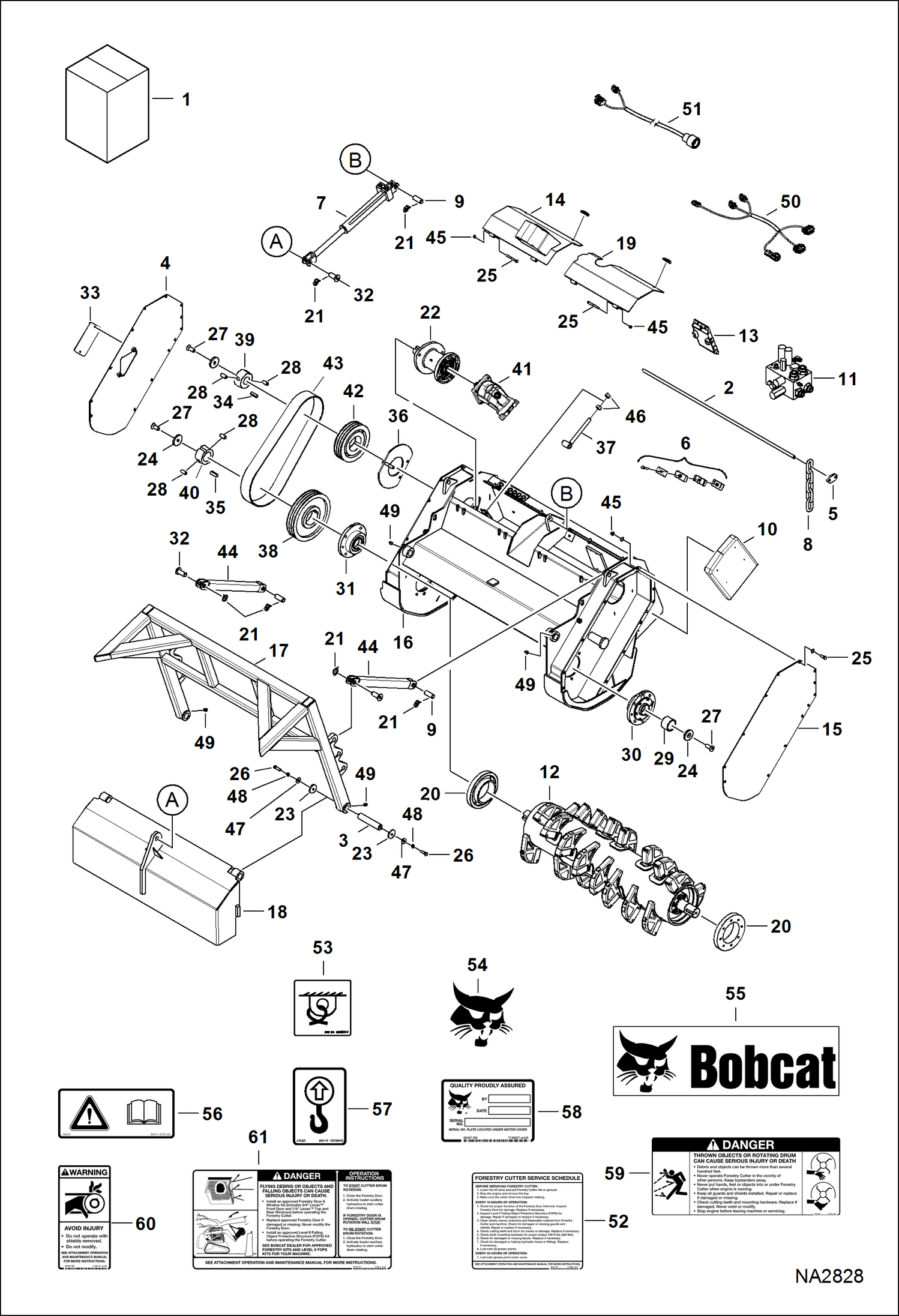

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Main Frame) (FRC50 ANR6) Loader

1

FORESTRY CUTTER SALES #7194306 - 50''

2

7020402

ROD

3

7020403

PIN Use W/ gate option & push bar

3

6693022

PIN Use W/ push bar only

4

7020404

COVER, BELT

5

7020405

RETAINER, HOLDER

6

6693194

CLAMP

7

CYLINDER, GATE See Illustration FORESTRY CUTTER/ NA2840

8

7013174

CHAIN

9

7003504

PIN

10

7020407

HOLDER, MANUAL

11

VALVE See Illustration FORESTRY CUTTER/ NA2844

12

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA2835

13

6678675

CONTROLLER, ACD Was 7020410 - A

14

7020411

COVER, MOTOR See Illustration FORESTRY CUTTER/ NA2829 - Ref. 19 & 22-27 - RH - W/pressure gauge & fittings

15

7020412

COVER, BELT

16

7020413

FRAME, MAIN ASSY

17

7020414

BAR

18

7020415

GATE

19

7020416

COVER, MOTOR LH

20

7020417

SEAL, DUST

21

7020418

PIN

22

BEARING ASSY See Illustration FORESTRY CUTTER/ NA2838

23

6692588

WASHER

24

6692589

WASHER

25

7020419

BOLT

26

7020420

BOLT

27

7020422

BOLT

28

7020423

SCREW, SET

29

6692591

SPACER

30

BEARING ASSY See Illustration FORESTRY CUTTER/ B26528 - floating

31

BEARING ASSY See Illustration FORESTRY CUTTER/ B26527 - fixed

32

6692593

PIN

33

6692594

COVER, ACCESS

34

6692596

KEY

35

6692597

KEY

36

6692598

RETAINER

37

6692599

TENSIONER

38

7010318

PULLEY

39

6692601

BUSHING

40

6692602

BUSHING

41

6692603

MOTOR See Illustration FORESTRY CUTTER/ B26593

42

6692604

PULLEY

43

6692574

BELT

44

6692606

BAR

45

7020424

NUT

46

7020425

NUT

47

7020426

WASHER

48

7020427

WASHER

49

7020428

FITTING, GREASE

50

7135123

HARNESS

51

6725368

HARNESS 7-pin

52

7136960

DECAL service

52

7210797

DECAL, SERVICE

53

6595014

DECAL tie down

54

6700191

DECAL, LOGO BOBCAT HEAD

55

6731332

DECAL logo

56

6732148

DECAL op manual

57

6809609

DECAL

58

7136627

DECAL quality

59

7136715

DECAL danger

60

7136716

DECAL warning

61

7136717

DECAL danger
