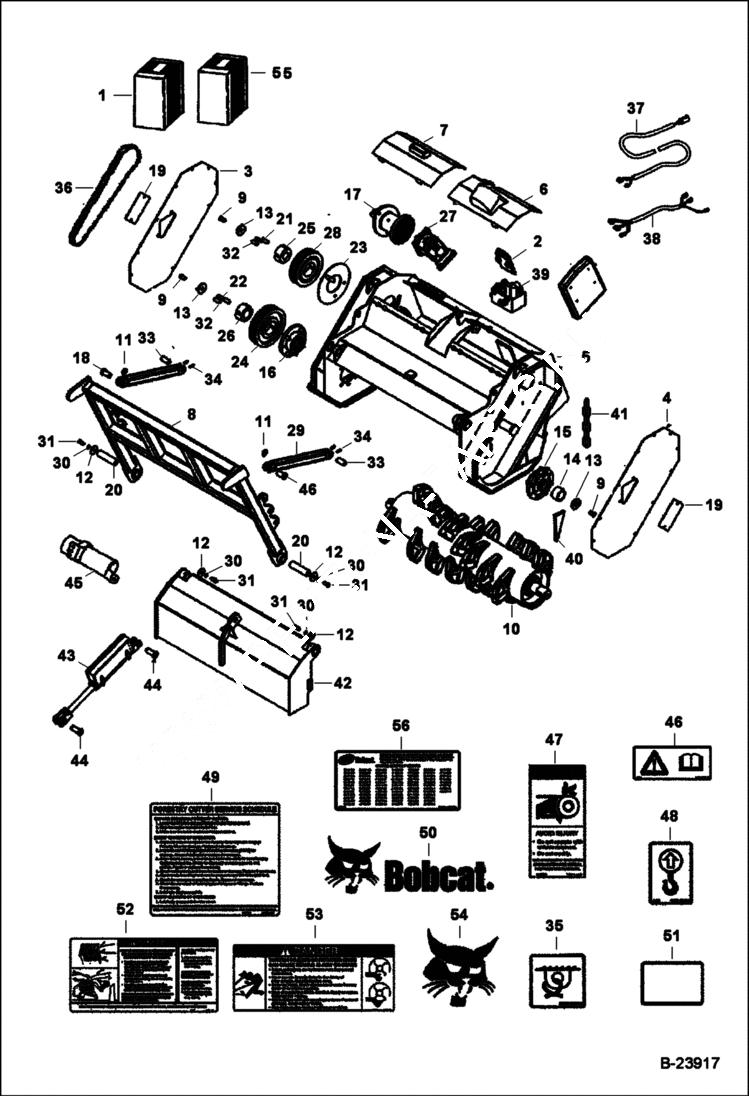

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Main Frame) (FRC50 ADTN) Loader

1

FORESTRY CUTTER SALES #7163799 - FRC50

2

6678675

CONTROLLER, ACD

3

6692579

COVER

4

6692581

COVER

5

7003500

FRAME, MAIN ASSY

6

7003502

COVER, MOTOR W/O pressure gauge

7

7003501

COVER, MOTOR

8

6692585

BAR

9

6692590

BOLT

10

ROTOR, ASSY See Illustration FORESTRY CUTTER/ NA6221

11

6905719

CLICK PIN

12

6692588

WASHER

13

6692589

WASHER

14

6692591

SPACER

15

BEARING ASSY See Illustration FORESTRY CUTTER/ B26528 - floating

16

BEARING ASSY See Illustration FORESTRY CUTTER/ B26527 - fixed

17

BEARING See Illustration FORESTRY CUTTER/ B26529

18

6692593

PIN

19

6692594

COVER, ACCESS

20

6692595

PIN

21

6692596

KEY 1/2 x 1/2 x 2.00

22

6692597

KEY 5/8 x 5/8 x 2.00

23

6692598

RETAINER

24

PULLEY NLA - 10.9'' dia. - Order 7010318 pulley - Was 6692600 - D

24

7010318

PULLEY 12.5'' dia.

25

6692601

BUSHING

26

6692602

BUSHING

27

6692603

MOTOR See Illustration FORESTRY CUTTER/ B26593

28

6692604

PULLEY 9.25'' dia.

29

6692606

BAR

30

4E8

WASHER lock

31

17C824

BOLT 5

32

7003505

BOLT

33

7003504

PIN

34

14J1824

ROLL PIN

35

6595014

DECAL tie down

36

6692574

BELT

37

6725368

HARNESS 7-Pin

38

7135123

HARNESS ACD to valve

39

VALVE ASSY NLA - Use 7196485 - Was 6691567 - A

40

6698277

TINE lower - weld-on

41

7013174

CHAIN 12'' (305 mm) long - Was 7114335 - B,D

42

DOOR, GATE KIT See Illustration FORESTRY CUTTER/ B23575

43

CYLINDER See Illustration FORESTRY CUTTER/ B23575

44

6693021

PIN

45

7108147

CONTAINER, MANUAL W/ 6686517 tube

46

6732148

DECAL

47

7136716

DECAL warning

48

6809609

DECAL

49

7136960

DECAL service

50

6809831

DECAL, LOGO BOBCAT AND HEAD

51

7136627

DECAL quality approval

52

7136717

DECAL danger

53

7136715

DECAL danger

54

6700191

DECAL, LOGO BOBCAT HEAD

55

KIT, FORESTRY APPLICATIONS SALES #7131810 - Includes 7137797 forestry door kit, 7137796 forestry debris kit, 6718924 FOPS kit & 6725898 fire extinguisher kit
