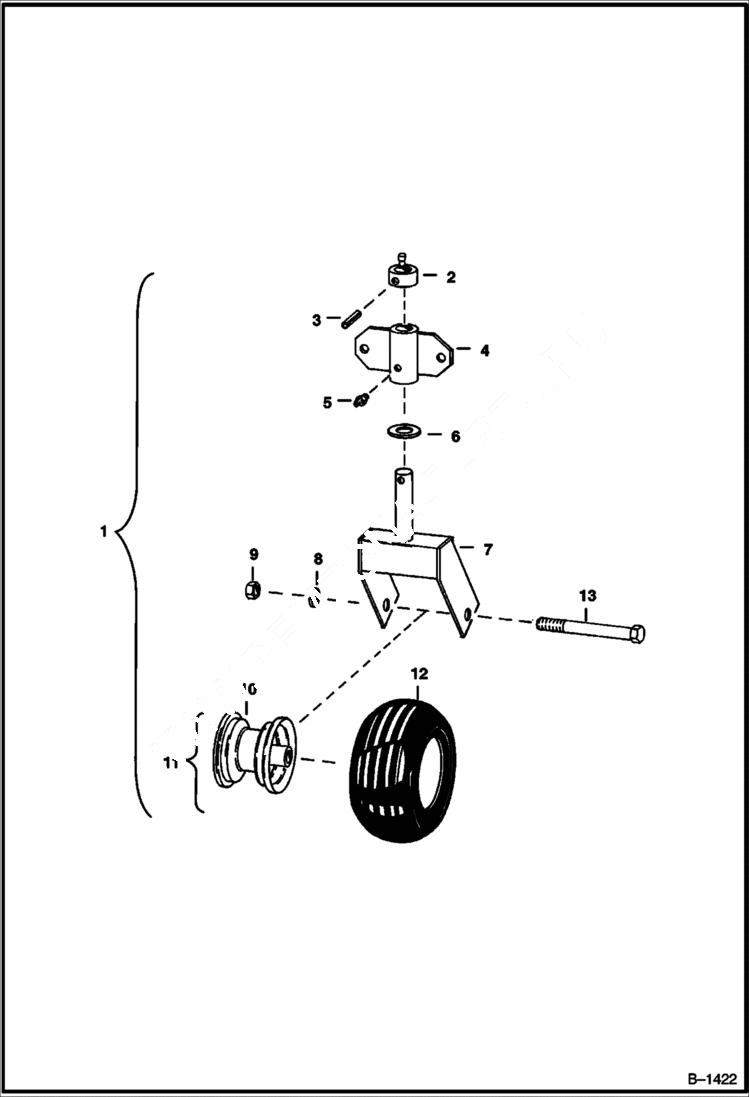

Запчасти Bobcat FLAIL MOWER FLAIL MOWER (Caster Wheel) Loader

1

WHEEL NLA - caster - Ref. 2-13 - Order components - Was 6541722 - A

2

6502825

COLLAR wheel stabilizer

3

742953

ROLL PIN

4

6505451

HOUSING bearing

5

6518200

FITTNG, GREASE 10

6

25E31

WASHER

7

6541723

FORK caster wheel

8

654069

BUSHING

9

81D6

NUT

10

6519210

HUB wheel

11

6541811

WHEEL Ref. 10 & 12

12

6519211

TIRE 3:50 x 9:00 - 2 ply

13

17C896

BOLT
