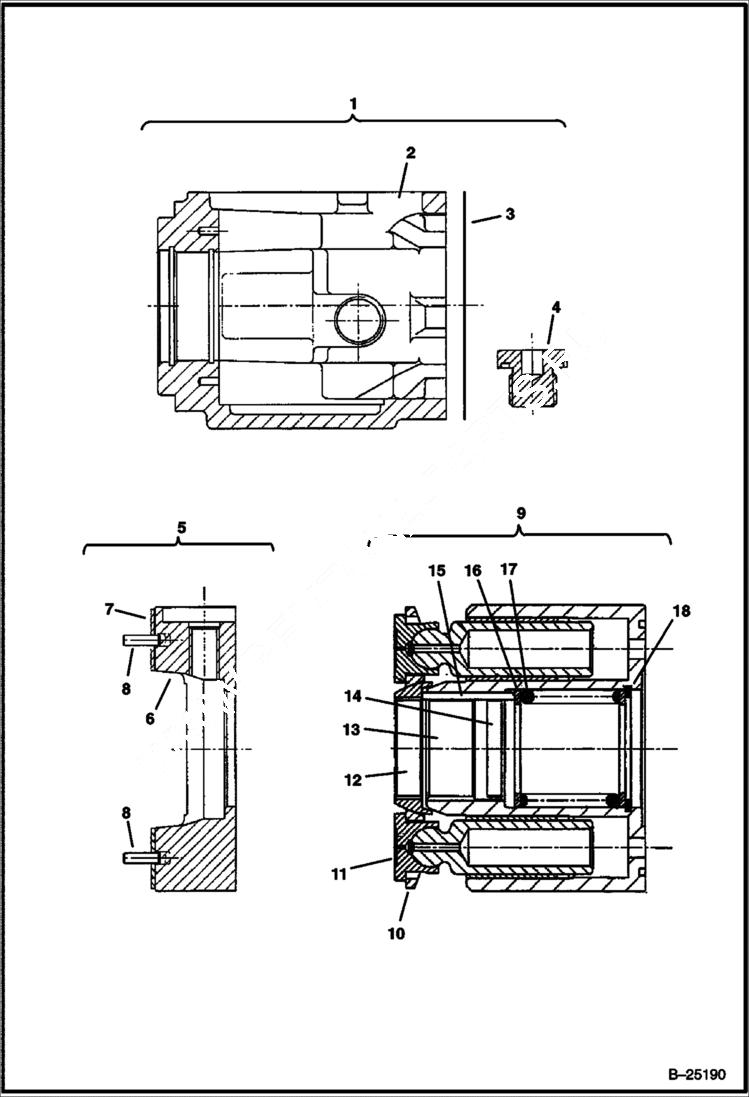

Запчасти Bobcat FLAIL CUTTER FLAIL CUTTER (Motor) (Seppi) (FC155) (FC175) (FC200) Loader

1

6688595

KIT housing - W/Ref. 2-4

2

HOUSING NSS - Order Ref. 1

3

6688601

GASKET distributor

4

6688602

PLUG

5

6688136

KIT cam plate - W/Ref. 6-8

6

PLATE NSS - Order Ref. 5

7

6688137

BUSHING bronze

8

6688138

PIN

9

6688135

KIT rotating group - W/Ref. 10-18

10

PLATE NSS - Order Ref. 9

11

PISTON NSS - Order Ref. 9

12

BALL JOINT NSS - Order Ref. 9

13

BLOCK NSS - Order Ref. 9

14

RETAINER NSS - Order Ref. 9

15

PIN NSS - Order Ref. 9

16

WASHER NSS - Order Ref. 9

17

SPRING NSS - Order Ref. 9

18

SNAP RING NSS - Order Ref. 9
