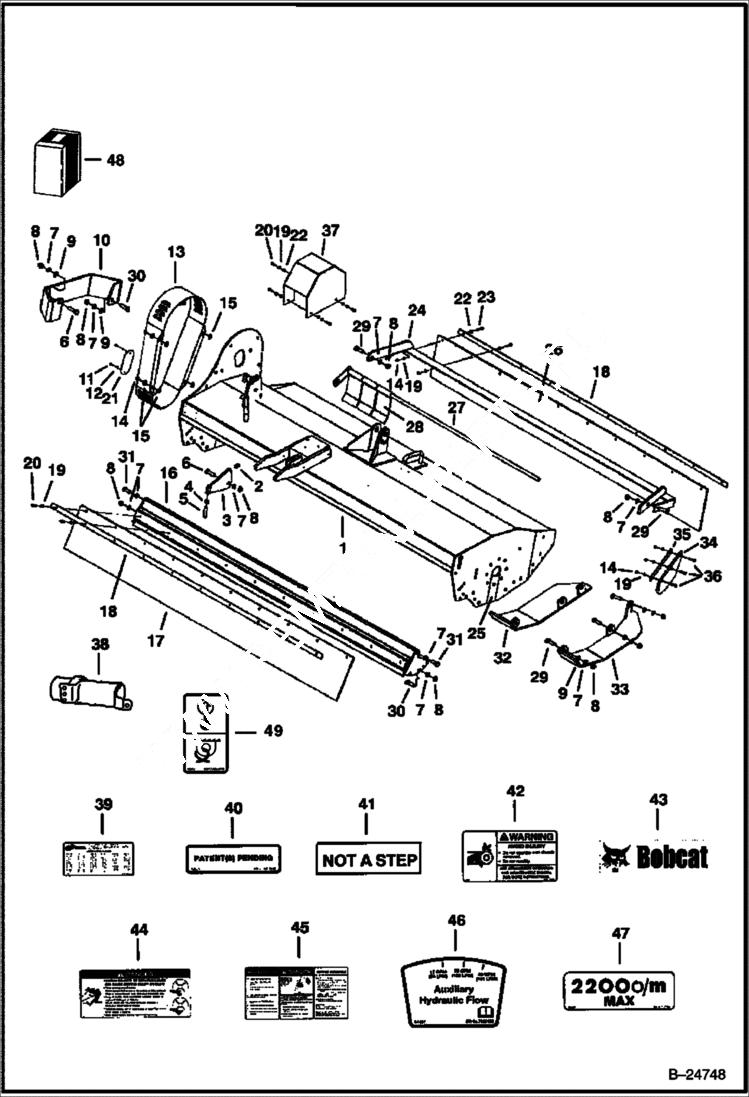

Запчасти Bobcat FLAIL CUTTER FLAIL CUTTER (Main Frame) (FC175) (FC200) Loader

1

6687541

FRAME FC175

1

6687542

FRAME FC200

2

6687543

COUPLER

3

6687544

LEVER

4

6687545

NUT

5

6687546

BOLT

6

1CM1450

BOLT Was 4CM1450 - A

7

6EM140

WASHER

8

53DM14

NUT

9

15EM140

WASHER

10

6687547

GUARD

11

26GM5010

SCREW

12

6EM50

LOCK-WSHR

13

6687548

COVER

14

53DM8

NUT

15

17EM80

WASHER

16

6687549

COVER FC175

16

6687550

COVER FC200

17

6687551

GUARD FC175

17

6687552

GUARD FC200

18

6687553

STRIP FC175

18

6687554

STRIP FC200

19

6EM80

WASHER, SPRING

20

1CM825

BOLT

21

6687567

COVER

22

1EM80

WASHER

23

1CM835

BOLT

24

6687555

BRACKET FC175

24

6687556

BRACKET FC200

25

6687568

PLATE

26

6687557

GUARD FC175

26

6687558

GUARD FC200

27

6687559

GUARD FC175

27

6687560

GUARD FC200

28

6687561

GUARD metal

29

1CM1445

BOLT

30

1CM1440

BOLT

31

1CM1435

BOLT

32

6687562

SKID SHOE

33

6687563

SKID SHOE

34

6687564

GUARD

35

6687565

STRIP

36

1CM830

BOLT

37

6687566

COVER

38

7108147

CONTAINER, MANUAL W/ 6686517 tube

39

DECAL NLA - patent - Was 6557224 - C

40

DECAL PATENT PEND NLA - Was 6810666 - C

41

6657351

DECAL, STEP

42

6734443

DECAL, WARNING

43

6731332

DECAL logo - Was 6815489 - B

44

7100705

DECAL warning

45

7100706

DECAL danger

46

7106129

DECAL aux flow

47

7107788

DECAL max RPM

48

7107875AR

TRANSLATION KIT

48

7107875BR

TRANSLATION KIT

48

7108031AR

DECAL KIT

48

7108031BR

DECAL KIT

48

7108031JP

DECAL KIT

49

6815993

DECAL, LIFT tie down
