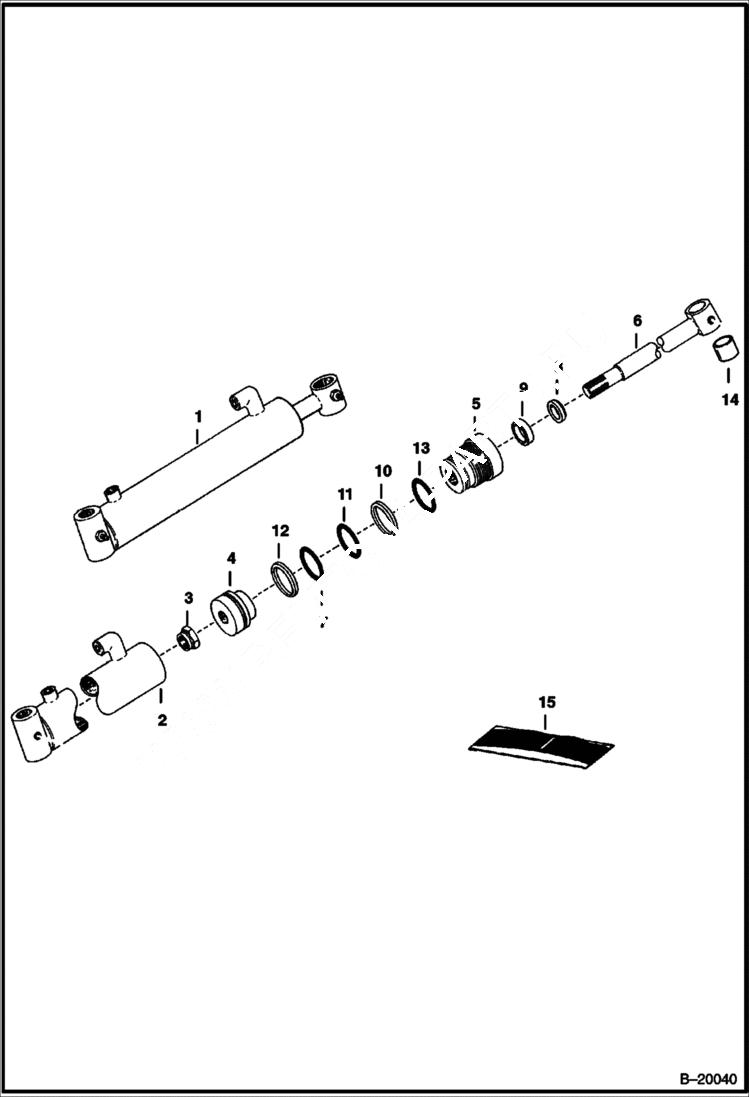

Запчасти Bobcat FIFTH WHEEL FIFTH WHEEL (Cylinder) (W/1 (25,4 mm) Rod) Loader

1

CYLINDER See Illustration FIFTH WHEEL/ TS1018 NLA - Ref. 2-12 - Order 6530564 Cyl. & 1-6577936 Tube for Industrial Grapple - Was 6593343 - A

2

6592028

CASE

3

92D12

NUT Was 86D000012B - B

4

6558196

PISTON

5

6538595

HEAD, CYL HYD Was 6504933 - A

6

6587333

ROD W/Ref. 14 - Was 6593344 - B

7

25K30118

O RING 10

8

6665208

SEAL wiper

9

6665184

SEAL u-cup

10

73K224

RING back-up

11

25K40124

O RING 10

12

6516231

SEAL

13

82K136

O-RING Was 58K136 - B

14

6547652

BUSHING

15

6587790

SEAL KIT Ref. 3 & 7 - 13 - Was 6504960 - A
