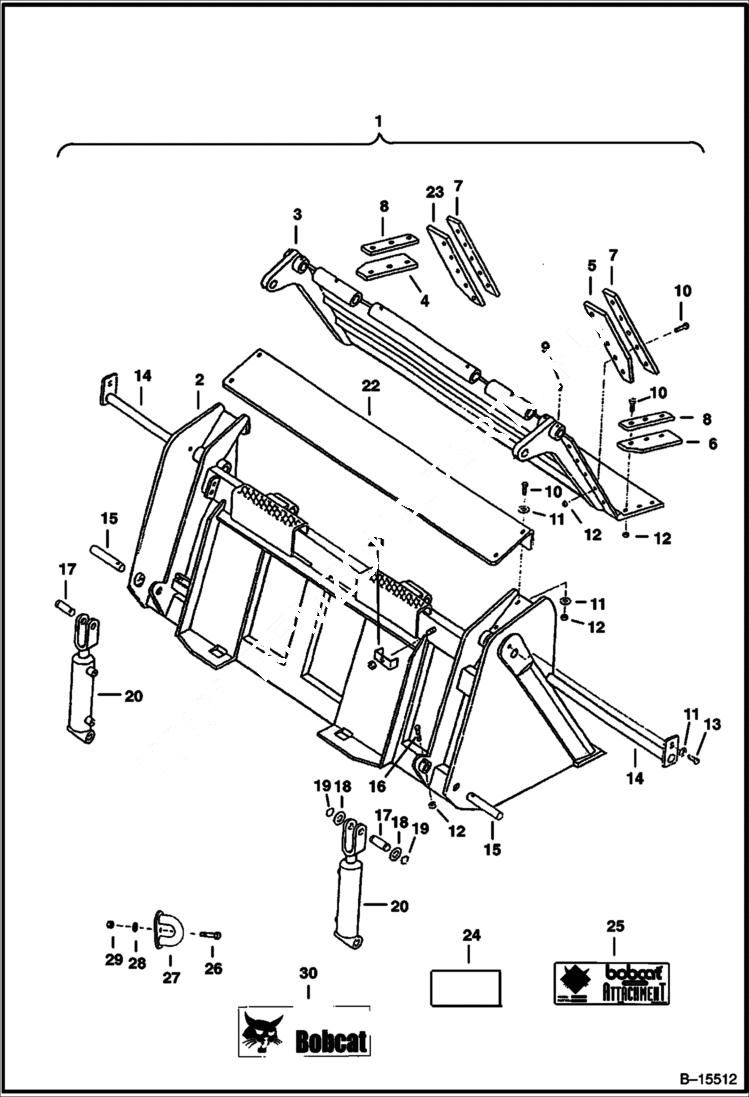

Запчасти Bobcat EJECTOR BUCKET EJECTOR BUCKET - 62, 68 & 74 (1575, 1727 & 1880mm) Loader

1

BUCKET ASSY SALES - 62''(1575mm) - W/Ref. 2-25 - SALES #6674857

1

BUCKET ASSY SALES - 68''(1727mm) - W/Ref. 2-25 - SALES #6674858

1

BUCKET ASSY SALES - 74''(1880mm) - W/Ref. 2-25 - SALES #6674859

2

6674860

BUCKET 62''(1575mm)

2

6674861

BUCKET 68''(1727mm)

2

6674862

BUCKET 74''(1880mm)

3

6674863

PLATE 62''(1575mm)

3

6674864

PLATE 68''(1727mm)

3

6674865

PLATE 74''(1880mm)

4

6674869

STRIP wiper

5

6674868

STRIP wiper

6

6674867

STRIP wiper

7

6674878

PLATE

8

6674877

PLATE

9

10H35

FITTING, GREASE 10

10

17C616

BOLT 5

11

25E18

WASHER

12

85D6

NUT, 5 Was 87D000006B - A

13

17C620

BOLT

14

6674872

PIN

15

6674871

PIN

16

17C632

BOLT 5

17

6674870

PIN

18

6573567

WASHER Was 6674990 - A

19

21J16

SNAP RING Was 6674991 - A

20

6674980

CYLINDER

21

6674876

HOSE CLAMP

22

6674873

SHIELD 62''(1575mm)

22

6674874

SHIELD 68''(1727mm)

22

6674875

SHIELD 74''(1880mm)

23

6674866

STRIP

24

DECAL NLA - Ejector Bucket - Was 6674981 - A

25

DECAL NLA - Bobcat approved attachment - Order Ref. 30 - Was 6715943 - A

26

37C648

BOLT

26

37C656

BOLT

26

37C664

BOLT

27

6706160

GUIDE

28

872229

WASHER

29

85D6

NUT, 5

30

6727324

DECAL, LOGO BOBCAT AND HEAD R.H.
