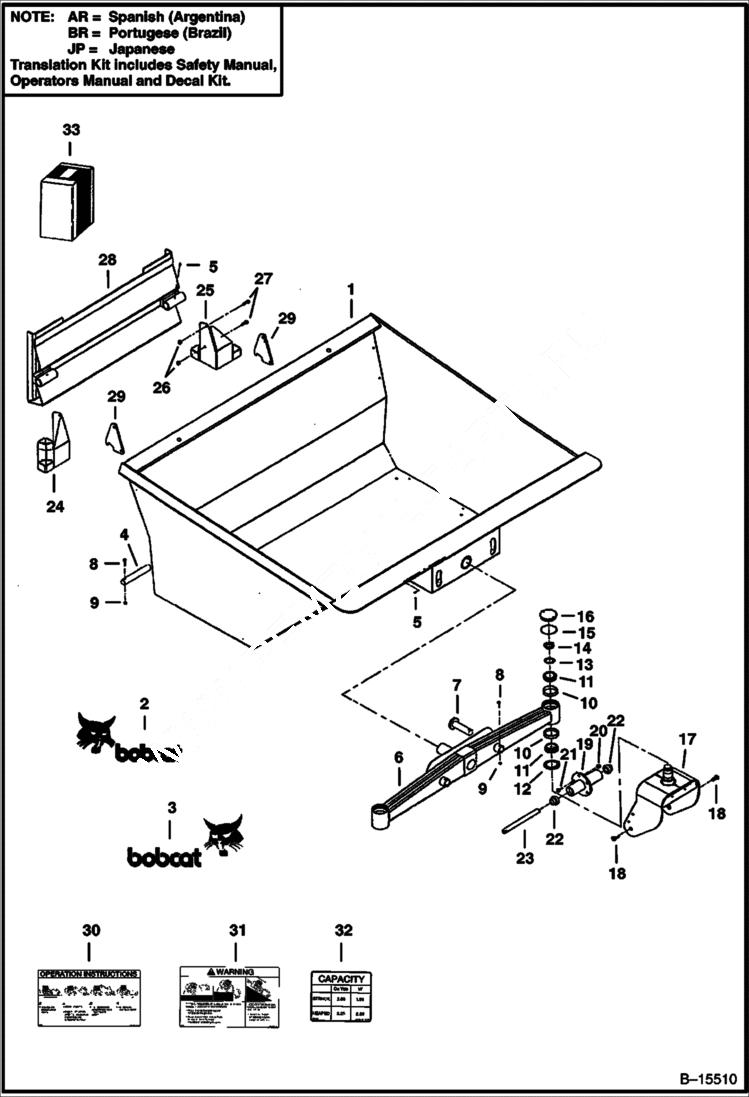

Запчасти Bobcat DUMPING HOPPER DUMPING HOPPER - Model 25 Loader

1

6675019

HOPPER

2

6729098

DECAL RH - 424 mm (16.7'') x 195 mm (7.7'') - Was 6703645 - B

3

6729099

DECAL LH logo - 424 mm (16.7'') x 193 mm (7.6'') - Was 6703646 - B

3

6809831

DECAL, LOGO BOBCAT AND HEAD Use on RH & LH sides - 602 mm (23.7'') x 185 mm (7.3'')

4

6729135

PIN Was 6675018 - A

5

6675017

GREASE ZERK

6

6675016

AXLE, FRONT ASSY

7

6675015

PIN

8

17C840

BOLT Was 17C000640B - B

9

61D8

NUT 5 Was 61D000006B - B

10

6675014

RACE

11

6675013

BEARING

12

6675012

SEAL

13

26H8

LOCKWASHR

14

24H8

NUT

15

76K151

O-RING 10

16

6675011

CAP

17

6675010

YOKE

18

6675009

BOLT

19

6728412

WHEEL HUB See Illustration TIRES & RIMS - Dumping Hopper/ B17527 for tire and rim - Was 6675008 - A

20

6561152

NUT

21

6679105

STUD Was 6506362 - A

22

6675007

BEARING

23

6675006

AXLE

24

6675005

STEP R.H.

25

6675004

STEP L.H.

26

61D8

NUT 5

27

17C820

BOLT

28

6728752

PLATE Bob-Tach - Was 6675003 - A

29

6675002

BRACKET shipping

30

6717602

DECAL operation

31

6717616

DECAL warning

32

6717623

DECAL capacity

33

6719517AR

KIT Translation - see note

33

6719517BR

KIT Translation - see note

33

6719518AR

KIT Decal - see note

33

6719518BR

KIT Decal - see note

33

6719518JP

KIT Decal - see note
