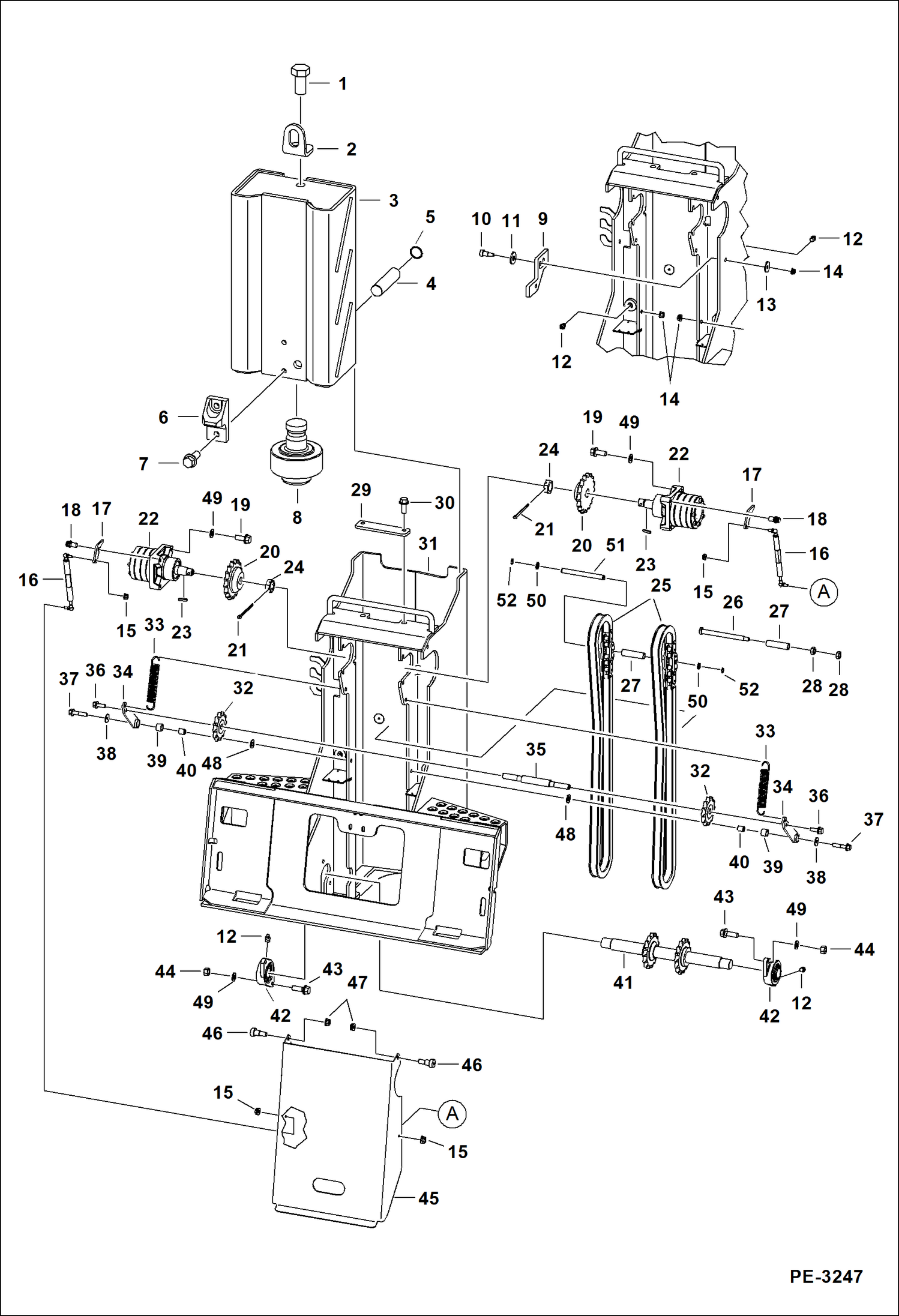

Запчасти Bobcat DROP HAMMER DROP HAMMER (Main Frame) (A78D) Loader

1

17C2448

BOLT

2

7101066

HOOK

3

500033SUB

WEIGHT ASSY

4

6959091

PIN

5

6685286

RING retaining

6

7127479

LATCH

7

31C1232

SCREW

8

7127480

TOOL

9

7129731

PLATE weight lock

10

38C810

BOLT

11

25E22

WASHER

12

10H25

FITTING, GREASE 5

13

6737388

WASHER

14

97D6

NUT 10

15

55D5

NUT

16

7157893

GAS SPRING Was 6682586 - A

17

7127514

MOUNT

18

93G812

BOLT

19

31C820

BOLT

20

7126621

SPROCKET

21

1F424

PIN

22

6686333

MOTOR See Illustration DROP HAMMER/ B25298

23

6689066

KEY

24

5200255

NUTCASTLE

25

6685287

CHAIN SET set of 2 chains

26

PIN NLA - Order Ref. 50-52 - Was 7102041 - A

27

6958958

ROLLER

28

7D8

NUT 5

29

7100654

STOP

30

35C820

BOLT

31

7131701

MAIN FRAME

32

7121769

SPROCKET

33

7134220

SPRING

34

7121865

ARM

35

7121805

SHAFT

36

31C616

SCREW

37

31C632

BOLT Was 31C628 - B

38

27E6

WASHER 5

39

6689113

BEARING fiber

40

7121866

BUSHING

41

7121717

SHAFT

42

6676594

BEARING

43

31C828

BOLT Was 31C824 - B

44

83D8

NUT 5 Was 63D8 - B

45

7127474

COVER

46

38C1008

BOLT

47

85D8

NUT, 5 Was 61D10 - B,D

48

6693406

WASHER

49

6693407

WASHER

50

25E25

WASHER 10

51

7153984

PIN

52

22J10

SNAP RING
