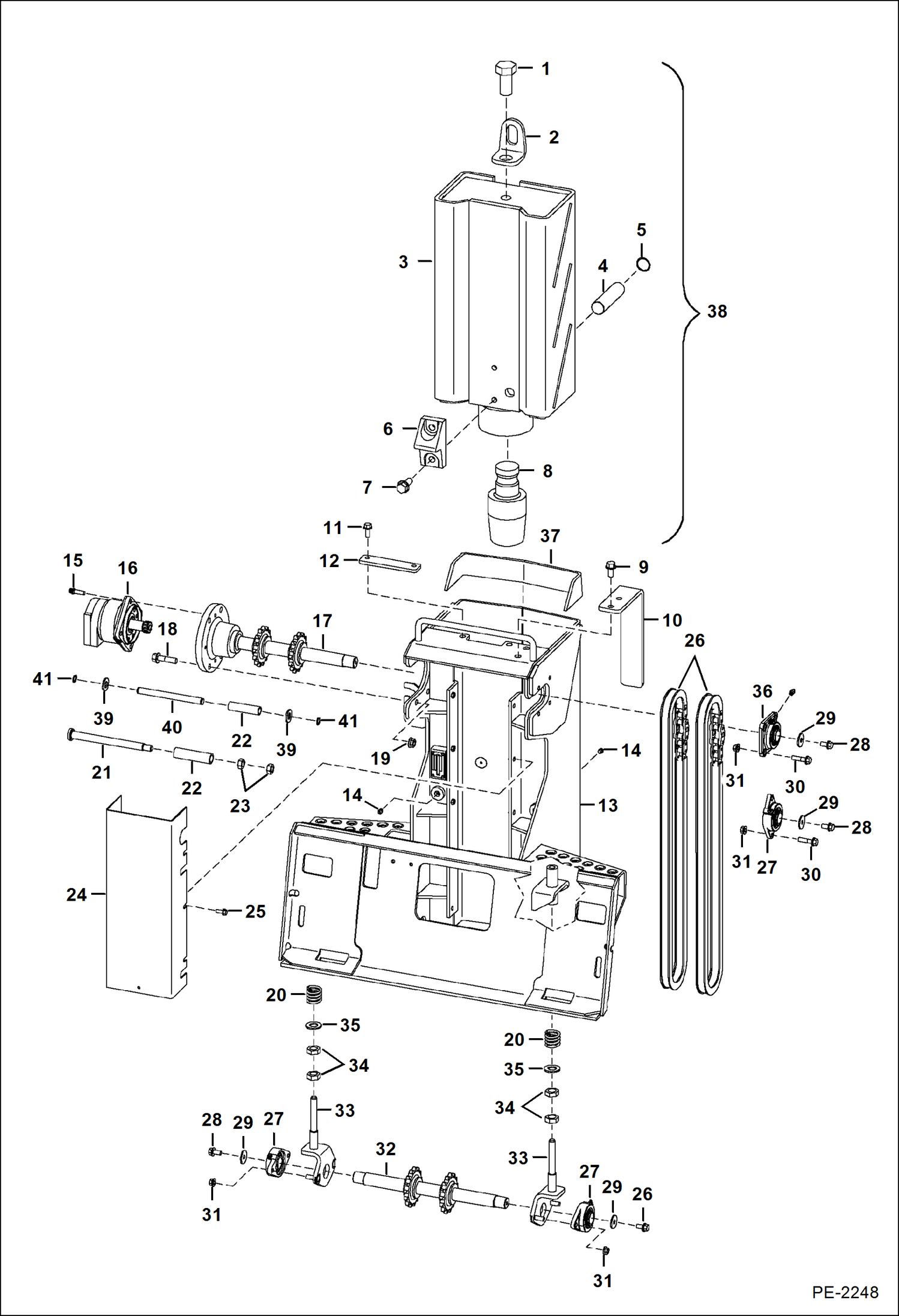

Запчасти Bobcat DROP HAMMER DROP HAMMER (Main Frame) (0058) Loader

1

17C2448

BOLT

2

7101066

HOOK

3

WEIGHT NSS - Order Ref 38 - Was 6959036 - A

4

6959091

PIN

5

6685286

RING retaining

6

6959282

LATCH

7

31C1232

SCREW

8

6959032

TOOL

9

35C1020

BOLT Was 35C001028B - B

10

7101061

STOP weight

11

35C820

BOLT

12

7100654

STOP latch

13

7100243

MAIN FRAME

14

10H25

FITTING, GREASE 5

15

93G824

BOLT

16

MOTOR See Illustration DROP HAMMER/ B17123

17

SHAFT ASSY See Illustration DROP HAMMER/ B24238

18

31C1040

BOLT

19

55D10

NUT

20

7101069

SPRING

21

PIN NLA - Order Ref. 39-41 - Was 7102041 - A

22

6958958

ROLLER

23

7D8

NUT 5

24

7100527

GUARD

25

49C616

BOLT Was 35C000616B - B

26

6685287

CHAIN SET set of 2 chains

27

6676594

BEARING 2 bolt - See Serviceletter #5152 dated March 21 2006

28

35C816

BOLT

29

6905688

WASHER

30

BOLT NLA - Order 31C832 bolt - Was 35C832 - A

31

55D8

NUT

32

6958899

SHAFT ASSY lower

33

6958919

PLATE

34

7D16

NUT

35

25E31

WASHER

36

7117720

BEARING 4 bolt - See Serviceletter #5152 dated March 21 2006

37

7117128

EXTENSION weld on - See Serviceletter #5152 dated March 21 2006

38

500033SUB

WEIGHT ASSY W/Ref. 1-5 & 8 - Was 500021SUB - A

39

25E25

WASHER 10

40

7153984

PIN

41

22J10

SNAP RING
