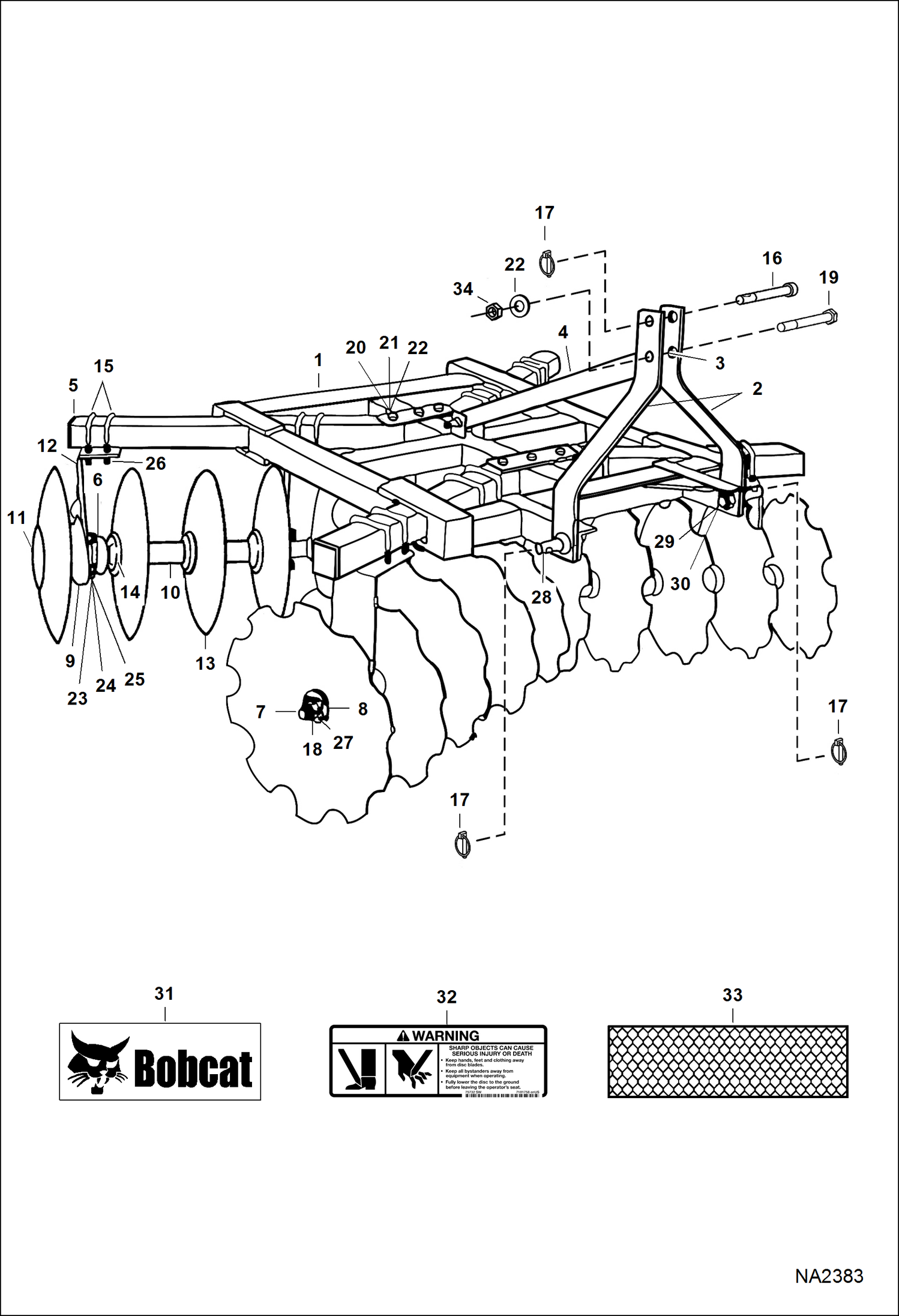

Запчасти Bobcat DISC DISC (3DH84 AHYP) Компактные тракторы

1

DISC 3PT 84'' SALES #7181772 - Ref. 2-33

2

7010647

ARM, 3PT

3

7010648

SPACER

4

7010649

BRACKET lift arm brace - (2-pk)

5

7010650

CAP, END plastic - (4-pk)

6

7010651

BEARING

7

7010652

AXLE, DISC

8

7010653

WASHER axle

9

7010654

SPACER 3.62'' long

10

7010655

SPACER 7.50'' long

11

7010656

WASHER bumper

12

7010657

MOUNT, BEARING

13

7010658

BLADE, DISC notched

13

7010659

BLADE, DISC plain

14

7010660

SPACER 2.38'' long

15

7010661

U-BOLT

16

7010897

PIN, LINK TOP

17

6560382

PIN, LOCK

18

61D16

LCKNUT

19

17C1280

BOLT

20

17C1288

BOLT

21

61D12

NUT

22

23E12

WASHER Was 4E12 - A

23

37C824

BOLT carriage

24

59D8

NUT 5

25

27E8

WASHER 10

26

59D10

NUT

27

59D16

NUT

28

7107590

PIN 3 point lower

29

25E29

WSHR

30

60D14

NUT

31

7181757

DECAL, LOGO

32

7181758

DECAL, WARNING

33

7140920

DECAL, REFLECTIVE red

34

85D12

NUT, 5
