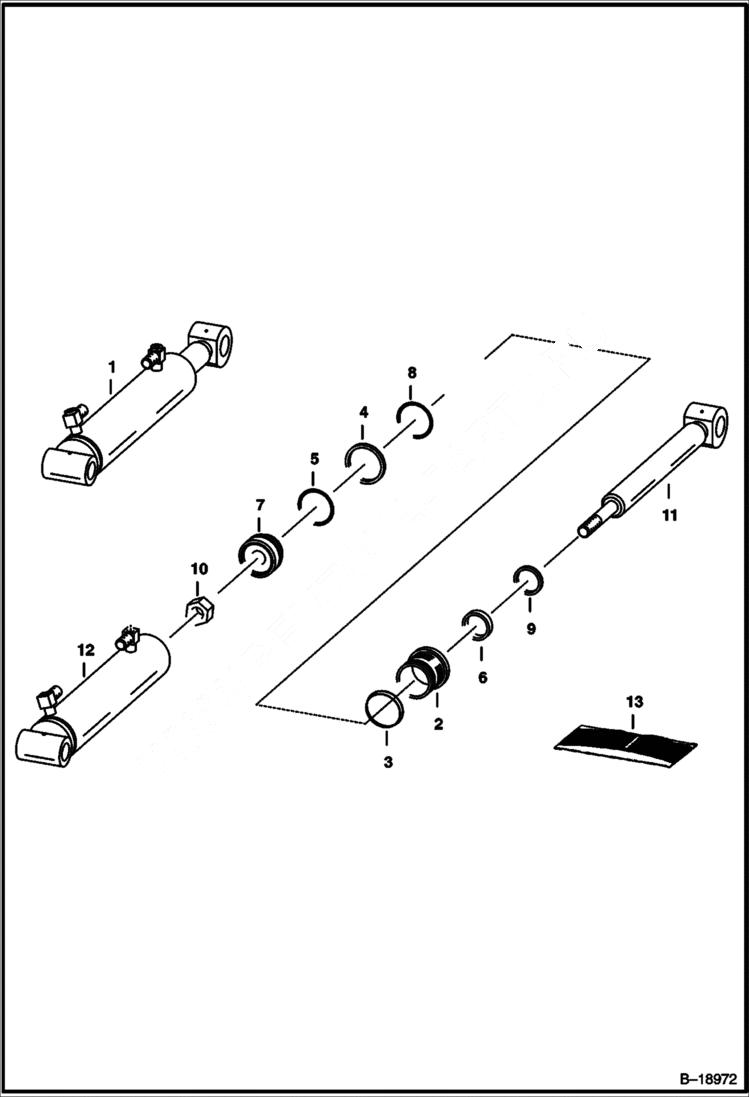

Запчасти Bobcat DISC DISC (Cylinder) (HD80 7184) Loader

1

6677402

CYLINDER

2

6677614

HEAD

3

O-RING NSS

4

SEAL NSS - rod

5

RING NSS - backup

6

RING NSS - wear

7

6677615

PISTON

8

SEAL NSS - piston

9

O-RING NSS

10

60D12

NUT

11

6677613

ROD

12

6677616

CASE

13

6677617

SEAL KIT Ref. 3-6, 8 & 9
