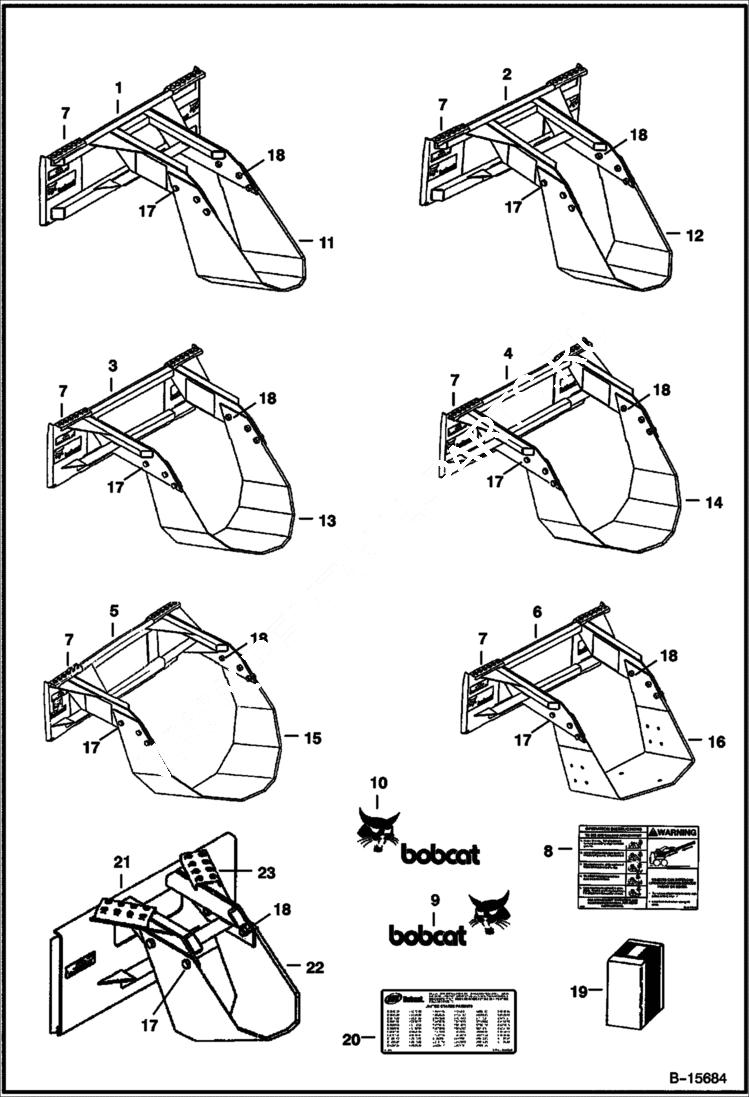

Запчасти Bobcat DIGGERS DIGGERS Loader

1

DIGGER SALES #6719754 - 12'' wide

2

DIGGER SALES #6719755 - 16'' wide

3

DIGGER SALES #6719756 - 25'' wide

4

DIGGER SALES #6719757 - 30'' wide

5

DIGGER SALES #6719758 - 36'' wide

6

DIGGER NLA - 25'' square - Was Sales #6719759 - A

7

6569838

STEP

8

6719704

DECAL,WARNING See Illustration DIGGERS/ NA6225

8

7130152

DECAL, WARNING See Illustration DIGGERS/ NA6225 - no-text

9

6727323

DECAL, LOGO BOBCAT AND HEAD Was 6567987 - B

10

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6567988 - B

10

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

11

6725102

BLADE 305 mm (12'') wide

12

6725112

BLADE 406 mm (16'') wide

13

6725114

BLADE 635 mm (25'') wide

14

6725118

BLADE 762 mm (30'') wide

15

6725121

BLADE 914 mm (36'') wide

16

6725117

BLADE 635 mm (25'') wide

17

17C1224

BOLT

18

61D12

NUT

19

6719938AR

KIT translation

19

6719938BR

KIT translation

19

6719939AR

KIT decal

19

6719939BR

KIT decal

19

6719939JP

KIT decal

20

DECAL NLA - patent - Was 6557224 - C

21

DIGGER SALES #7100915 - 12S - MT50, MT52, 463

22

7100922

BLADE, 12S 305 mm (12'') wide

23

6905990

STEP
