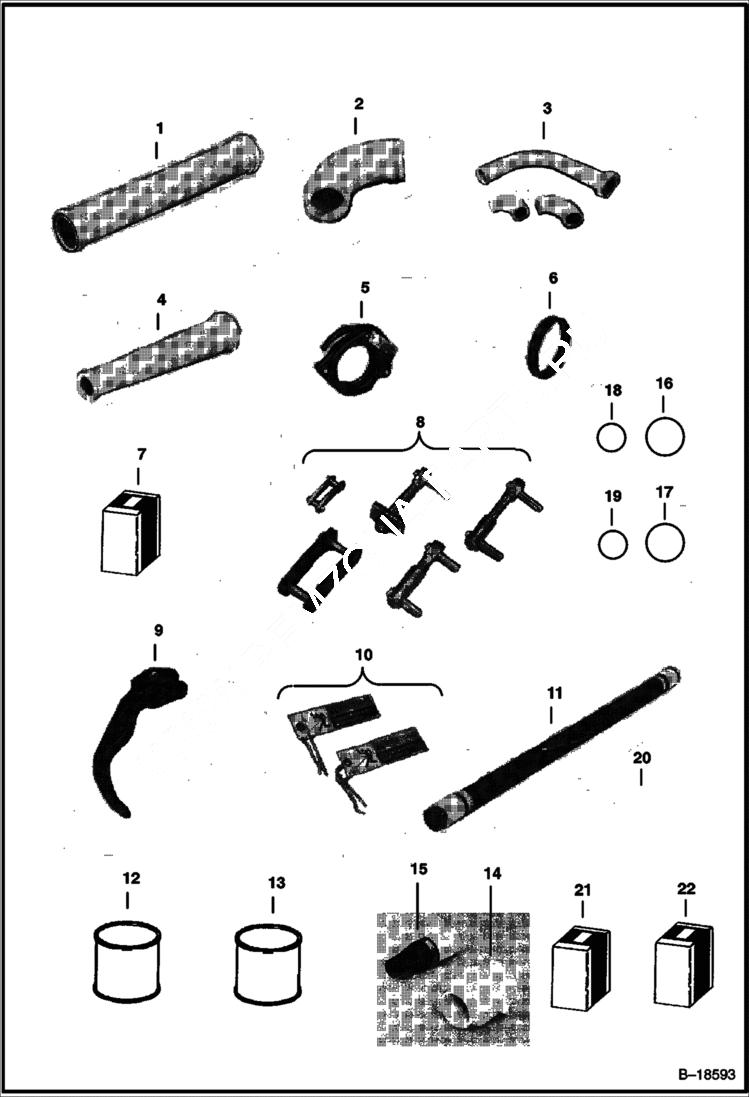

Запчасти Bobcat CONCRETE PUMP CONCRETE PUMP ACCESSORIES Loader

1

6676181

TUBE placing - 3'' dia, 10 ft. long

2

6676182

ELBOW 90 degree, 5'' dia

3

6676183

ELBOW 90 degree, reducer, 5''-3'' dia.

4

6676184

REDUCER 5''-3'' dia. - 49'' long

4

6676185

REDUCER 5''-3'' dia. - 28'' long

4

6676186

REDUCER 3''-2'' dia. - 36'' long

5

6676187

COUPLING 2'' dia.

5

6676188

COUPLING 3'' dia.

5

6676189

COUPLING 5'' dia.

6

6676190

GASKET 2'' dia.

6

6676191

GASKET 3'' dia.

6

6676192

GASKET 5'' dia.

7

6676193

GASKET KIT 2'' - contains 100 of 6676190

7

6676194

GASKET KIT 3'' - contains 100 of 6676191

7

6676202

GASKET KIT 5'' - contains 100 of 6676192

8

6676206

COUPLING KIT 2'' - with links & pins

8

6676207

COUPLING KIT 3'' - with links & pins

8

6676208

COUPLING KIT 5'' - with links & pins

9

6676209

HANDLE KIT 2'' - with handle & pin

9

6676210

HANDLE KIT 3'' - with handle & pin

9

6676211

HANDLE KIT 5'' - with handle & pin

10

6676212

SAFETY PIN KIT 2'' - with pin & warning label

10

6676213

SAFETY PIN KIT 3'' - with pin & warning label

10

6676214

SAFETY PIN KIT 5'' - with pin & warning label

11

6676215

HOSE 2'' dia. - 25 ft. long

11

6676216

HOSE 3'' dia. - 12 ft. long

11

6676217

HOSE 3'' dia. - 25 ft. long

11

6676218

HOSE 3'' dia. - 6 ft. long

12

6676219

PRIMER 5 gal. pail with (60) 8oz. bags

12

6676220

PRIMER pallet of 36 pails

13

CLEAN CRETE NLA - 5 gal. pail concentrate - Was 6676221 - A

14

6677344

NOZZLE shotcrete - 2''

15

6677345

TIP replacement - 2''

16

6677926

CLEANOUT BALL hard sponge - 3'' dia

17

6677927

CLEANOUT BALL soft sponge - 3'' dia

18

6678848

CLEANOUT BALL hard sponge - 2'' dia

19

6678847

CLEANOUT BALL soft sponge - 2'' dia

20

6678894

VALVE ball

21

KIT, SYSTEM DELIVERY NLA - 3'' - Order components - (1) each of Ref. 2, 4 (6676184 reducer), 11 (6676218 hose) & 17, (2) of Ref. 5 (6676189 coupling), (3) each of Ref. 1 (6676181 tube), Ref. 11 (66762

22

KIT SALES - 2'' - delivery shotcrete - W/qty. (4) of 6676187 coupling, (1) of 6676188 coupling, (3) of 6676215 hose, (1) of 6676186 reducer, (1) of 6677344 nozzle, (1) of 6678894 ball valve & (1) of 6
