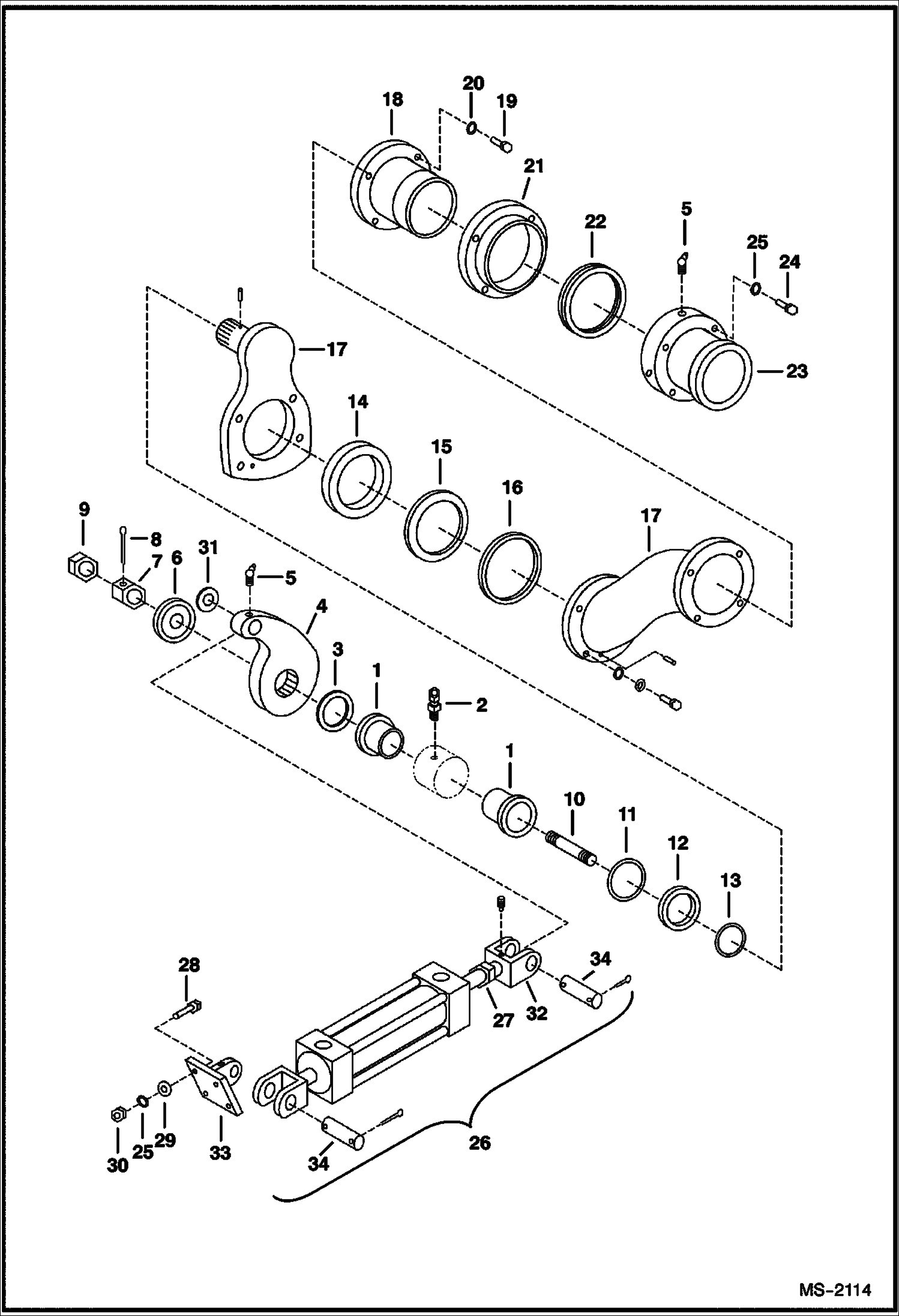

Запчасти Bobcat CONCRETE PUMP CONCRETE PUMP - S/N PREFIX 2354 Shuttle Assembly Loader

1

6688732

BUSHING

2

6688747

ADAPTER

3

6688748

WASHER

4

6688749

LEVER

5

11H15

GREASE FITTING

6

6688750

PLATE

7

62D16

NUT

8

1F532

COTTER PIN

9

6688751

NUT

10

6688752

STUD

11

6688753

O-RING

12

6688754

SEAL

13

6688755

O-RING

14

6688727

RING

15

6688731

RING

16

6688756

RING

17

6688757

KIT

18

6688758

TUBE

19

17C1032

BOLT

20

4E10

WASHER

21

6688759

FLANGE

22

6688733

SEAL

23

6688760

TUBE

24

17C852

BOLT 5

25

4E8

WASHER

26

6688761

CYLINDER See Illustration SHUTTLE CYLINDER/ B25299 shuttle

27

6688762

NUT

28

17C840

BOLT

29

27E8

WASHER 10

30

59D8

NUT 5

31

27E16

WASHER

32

6689078

CLEVIS

33

6689079

MOUNT

34

6689080

PIN
