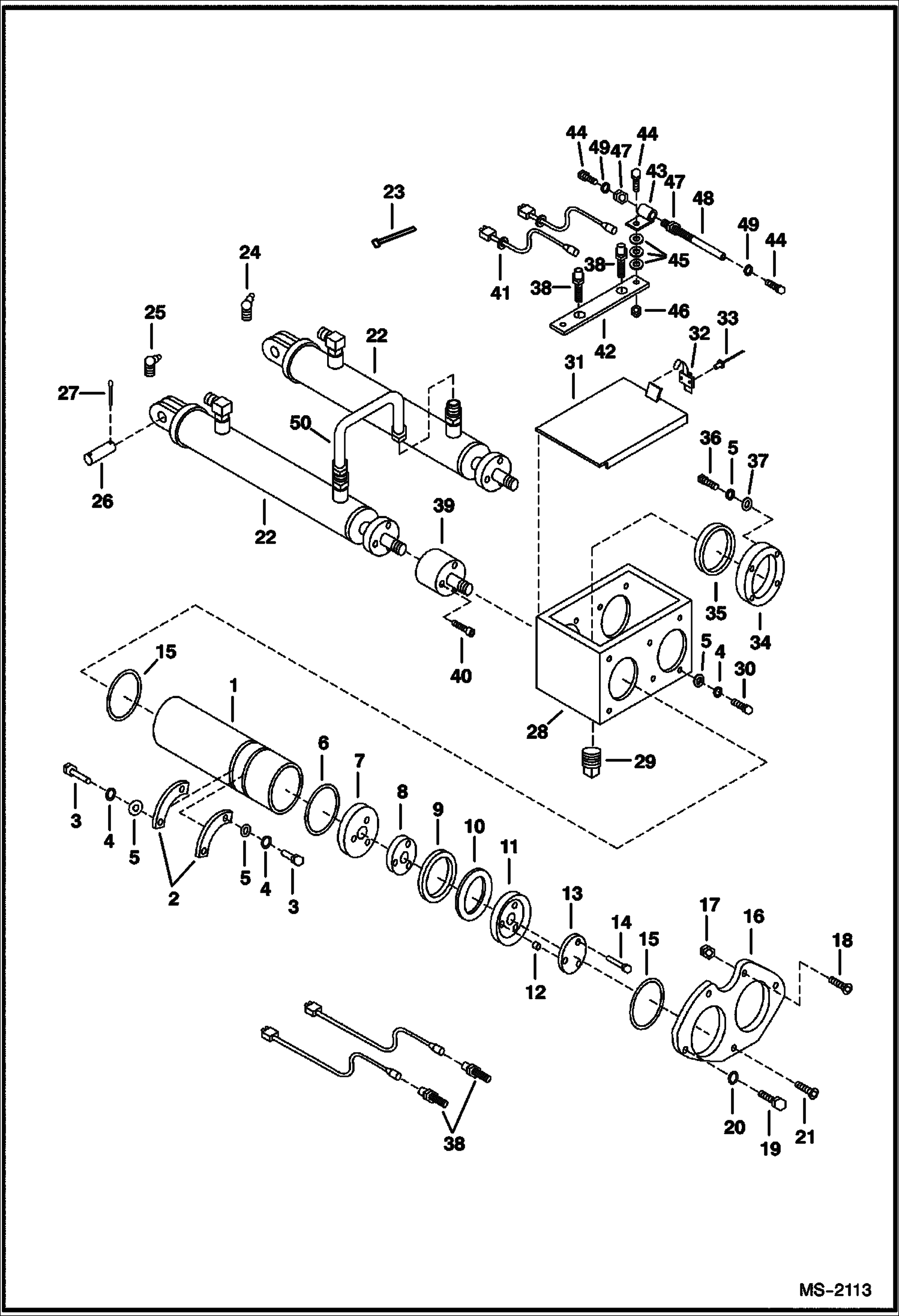

Запчасти Bobcat CONCRETE PUMP CONCRETE PUMP - S/N PREFIX 2354 Pumping Assembly Loader

1

6688734

CYLINDER

2

6688763

STOP

3

17C616

BOLT 5

4

4E6

WASHER

5

27E6

WASHER 5

6

6688736

ORING

7

6688764

PLATE

8

6688765

PLATE

9

6688737

RING felt

10

6688738

RING bronze

11

6688735

CUP

12

6688766

SPACER

13

6688767

PLATE

14

17C652

BOLT

15

6688739

ORING

16

6688726

PLATE wear

17

59D10

NUT

18

6688730

BOLT

19

6688728

BOLT

20

23E12

WASHER Was 4E12 - A

21

6688729

BOLT

22

6688768

CYLINDER

22

6689073

SEAL KIT for 6688768 cylinder

23

6624289

STRAP, TIE

24

11H15

GREASE FITTING

25

12H15

FITTING, GREASE 5

26

6688769

PIN

27

1F524

PIN

28

6688770

HOUSING

29

6688771

PLUG

30

17C628

BOLT

31

6688772

COVER

32

6688773

LATCH

33

6688774

RIVET

34

6688775

FLANGE

35

6688740

SEAL

36

18C616

BOLT 5

37

6688776

SEAL

38

6688741

SWITCH

39

6688777

EXTENSION

40

73G648

BOLT

41

6688778

GROMMET

42

6688779

PLATE

43

6688780

CLAMP

44

17C416

BOLT

45

25E15

WASHER

46

59D5

NUT 5

47

61D8

NUT 5

48

6688781

SHAFT

49

4E5

WASHER

50

7108713

TUBELINE
