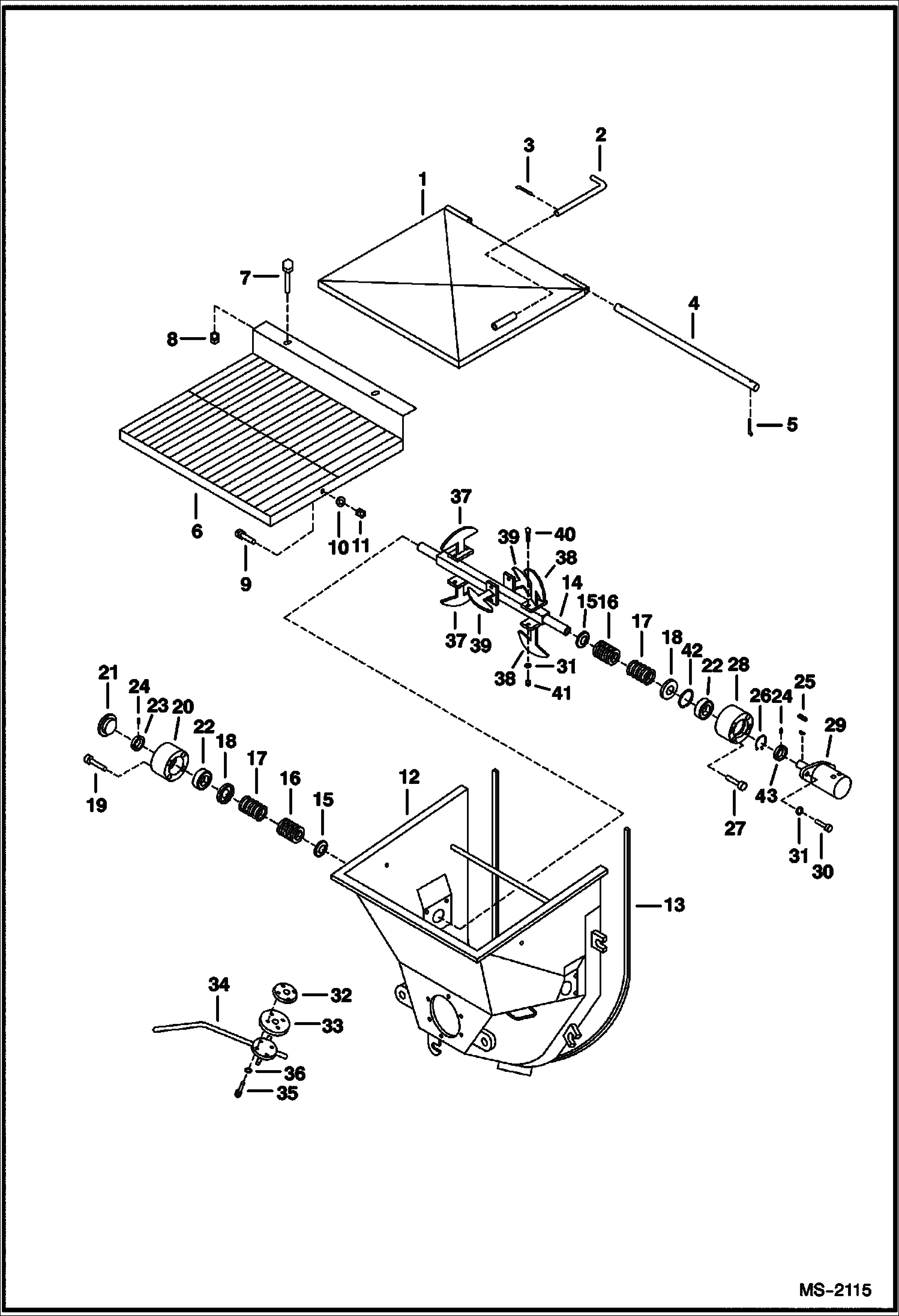

Запчасти Bobcat CONCRETE PUMP CONCRETE PUMP - S/N PREFIX 2354 Hopper & Agitator Loader

1

6688583

COVER hopper

2

6688585

PIN

3

1F524

PIN

4

6688584

SHAFT

5

1F416

PIN

6

6688582

GRATE hopper

7

17C764

BOLT

8

61D7

NUT

9

17C632

BOLT 5

10

27E6

WASHER 5

11

59D6

NUT

12

6688782

HOPPER

13

6688783

BRACE

14

SHAFT NLA - Order 6693512 shaft, 7J5104 Key, 6693513 spacer, 6693514 bolt, 6693515 mount & 6693516 collar - Was 6688784 - A

14

6693512

SHAFT

15

6688721

RING follower

16

6688720

RING packing

17

6688785

SPRING

18

6688786

BASE

19

73G828

BOLT

20

6688787

HOUSING

21

6688788

COVER

22

6688722

BEARING

23

6688725

COLLAR

24

15G606

SCREW

25

7J3104

KEY, SQ 1/4 X 1-1/4

25

7J5104

KEY

26

SNAP RING NLA - Order 6693512 shaft, 7J5104 Key, 6693513 spacer, 6693514 bolt, 6693515 mount & 6693516 collar - Was 6688789 - A

26

6693513

SPACER

27

73G840

BOLT

27

6693514

BOLT

28

MOUNT NLA - Order 6693512 shaft, 7J5104 Key, 6693513 spacer, 6693514 bolt, 6693515 mount & 6693516 collar - Was 6688790 - A

28

6693515

MOUNT

29

6688724

MOTOR

30

73G820

BOLT

31

4E8

WASHER

32

6688791

COVER

33

6688723

PLUG

34

6688792

HANDLE

35

17C628

BOLT

36

4E6

WASHER

37

6688793

BLADE L.H. - long

38

6688794

BLADE R.H. - long

39

6688795

BLADE center - short

40

17C852

BOLT 5

41

62D8

NUT

42

6688796

SNAP RING

43

COLLAR NLA - Order 6693512 shaft, 7J5104 Key, 6693513 spacer, 6693514 bolt, 6693515 mount & 6693516 collar - Was 6688725 - A

43

6693516

COLLAR
