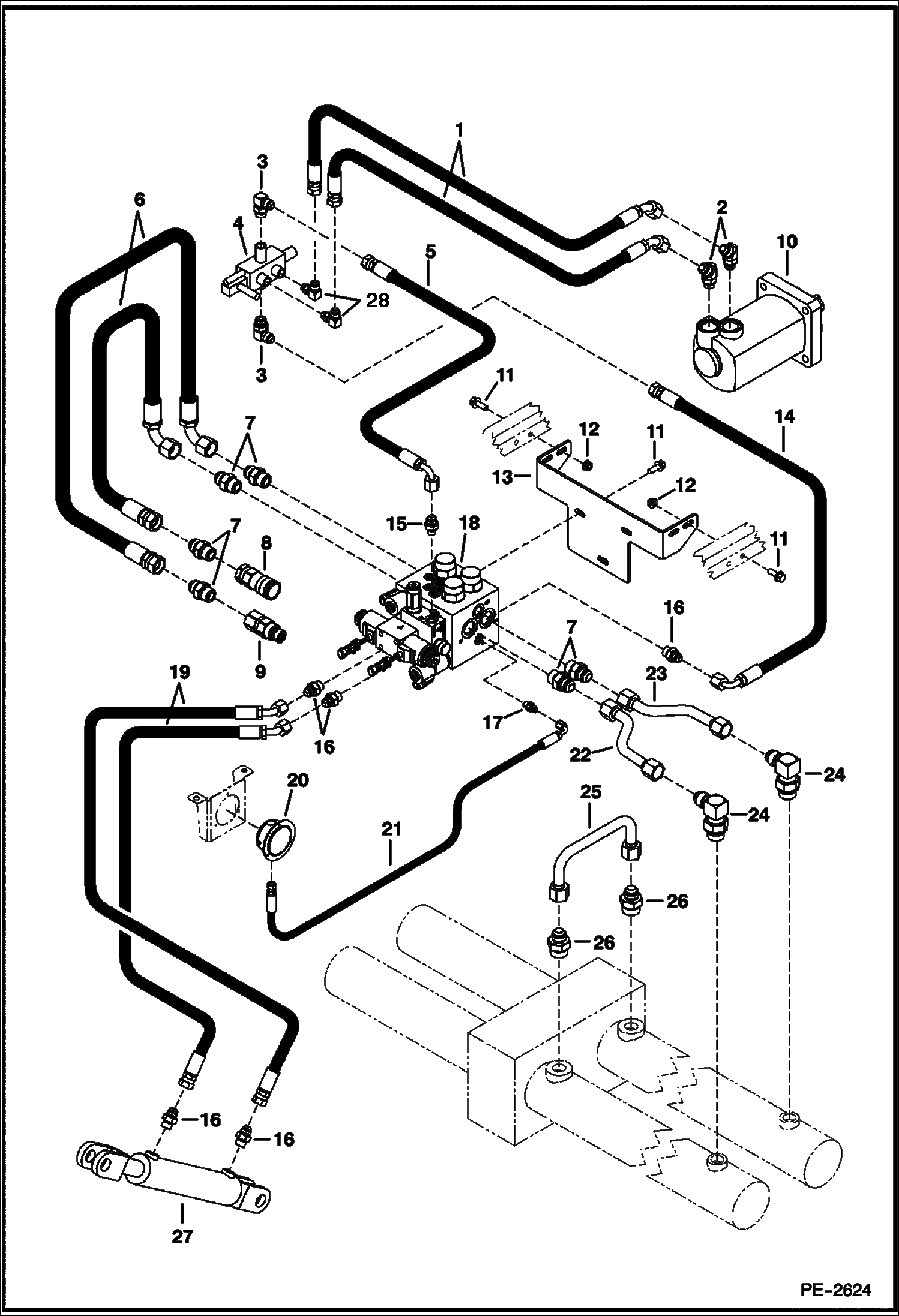

Запчасти Bobcat CONCRETE PUMP CONCRETE PUMP - S/N PREFIX 2354 Hydraulic Circuitry Loader

1

7108705

HOSE

2

18KB0810

FITTING, HYD ELBOW

3

17KB0808

FITTING, HYD ELBOW

4

6688742

VALVE See Illustration REMIX SELECTOR VALVE/ B25294 agitator

5

7108707

HOSE

6

6906004

HOSE

7

15KB1212

FITTING, HYD CONNECTOR

8

6687636

COUPLER, FF FEMALE straight

9

6688454

COUPLER, FF MALE straight

10

6688724

MOTOR See Illustration REMIX MOTOR/ B25293

11

35C616

BOLT 5

12

55D6

NUT

13

6905944

MOUNT

14

7108706

HOSE

15

15KB0806

FITTING, HYD CONNECTOR

16

15KB0808

FITTING, HYD CONNECTOR

17

15KB0404

FTG HYD S Connector

18

6687111

VALVE ASSY See Illustration CONTROL VALVE/ MS2094

19

7108709

HOSE

20

6688579

GAUGE

21

7108708

HOSE

22

7108714

TUBELINE

23

7108715

TUBELINE

24

17KB1216

FITTING, HYD ELBOW

25

7108713

TUBELINE

26

15KB1216

FITTING, HYD CONNECTOR

27

6688761

CYLINDER See Illustration SHUTTLE CYLINDER/ B25299 shuttle

28

17KB0806

FITTING, HYD ELBOW
