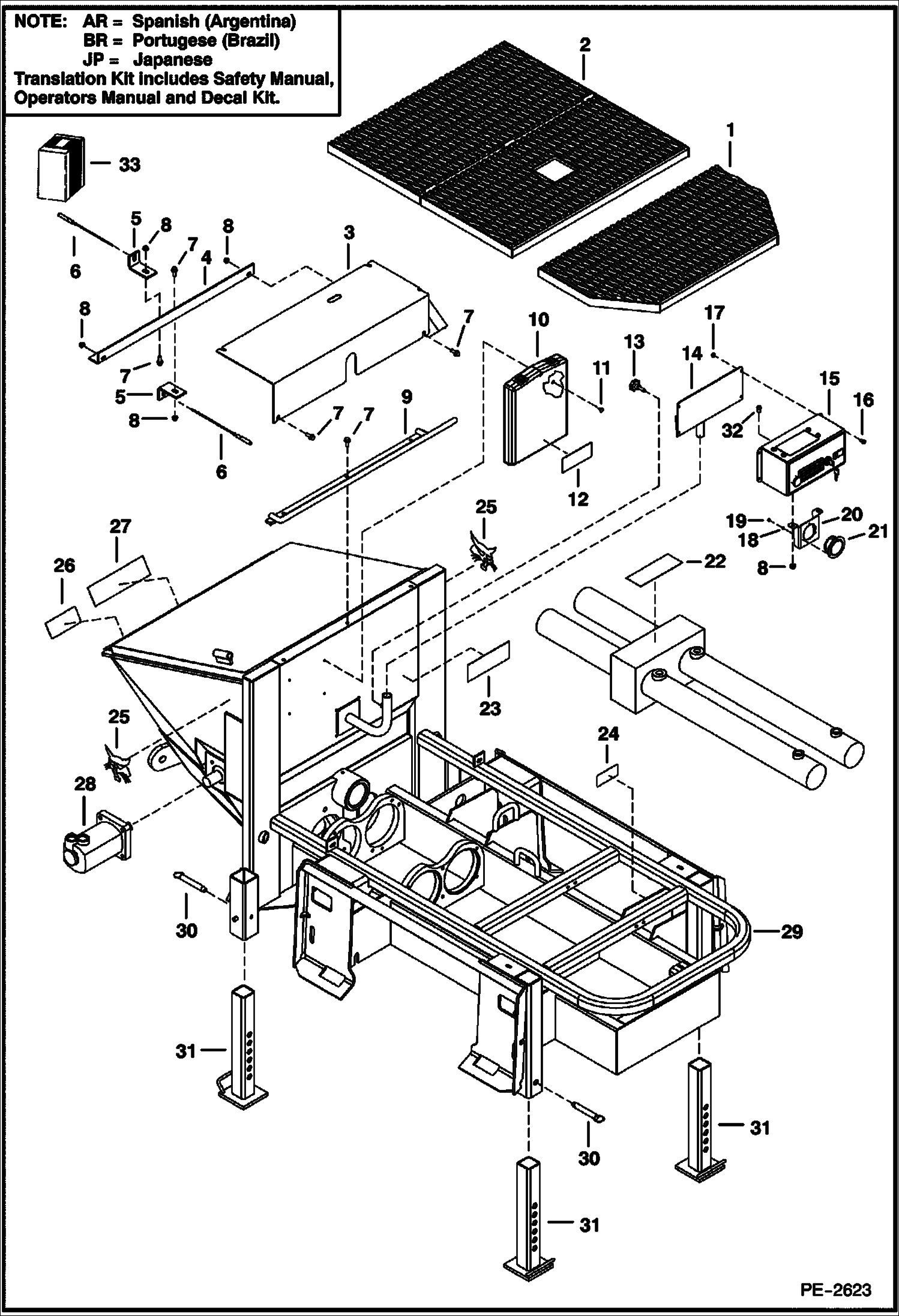

Запчасти Bobcat CONCRETE PUMP CONCRETE PUMP - S/N PREFIX 2354 Main Frame Loader

1

7112762

COVER

2

7112763

COVER

3

7108689

GUARD

4

7108690

BAR

5

7108692

BRACKET

6

7108711

SWITCH proximity

7

35C616

BOLT 5

8

55D6

NUT

9

6906032

HANDLE

10

6675615

BOX

11

6657352

RIVET

12

6717648

DECAL, BOX MANUAL

13

6674309

HANDLE

14

6905930

MOUNT

15

7109821

CONSOLE See Illustration CONTROL CONSOLE/ PE2622

16

35C408

BOLT

17

55D4

NUT

18

17EM35

WASHER

19

14D5

NUT

20

6905985

MOUNT

21

6688579

GAUGE

22

6905982

DECAL warning

23

6905983

DECAL warning

24

DECAL NLA - patent - Was 6557224 - C

25

6700191

DECAL, LOGO BOBCAT HEAD

26

6905980

DECAL warning

27

6905981

DECAL warning

28

MOTOR See Illustration REMIX MOTOR/ B25293

29

7108700

FRAME

30

6689568

PIN Was 6906008 - B,D

31

6689567

STAND Was 6905928 - B,D

32

25G612

SCREW

33

7108728AR

TRANSLATION KIT

33

7108728BR

TRANSLATION KIT

33

6906041AR

DECAL KIT

33

6906041BR

DECAL KIT

33

6906041JP

DECAL KIT
