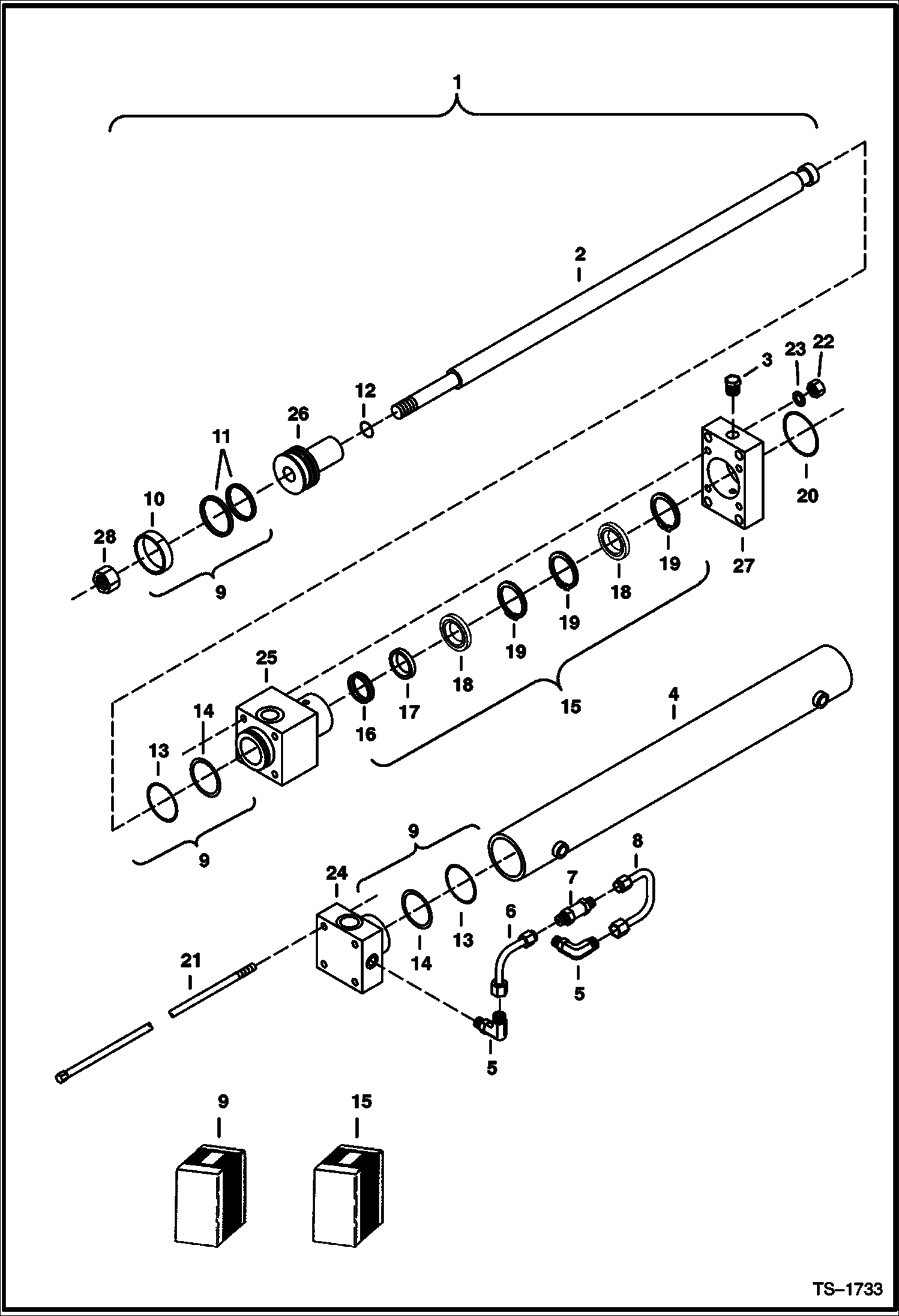

Запчасти Bobcat CONCRETE PUMP PUMP CYLINDER Concrete Pump - S/N Prefix 2331 Loader

1

6676294

CYLINDER ASSY W/Ref. 2-23

2

6676295

ROD

3

6676299

BREATHER

4

6676296

CASE

5

55E606

ELBOW

5

58K012

O-RING 10 flat

5

79K6

O RING 10 boss

6

6676300

TUBELINE

7

6676301

CHECK VALVE

8

6676302

TUBELINE

9

6676298

SEAL KIT W/Ref. 10-14

10

RING NSS - bearing

11

SEAL NSS - teflon

12

O-RING NSS

13

O-RING NSS

14

SEAL NSS - backup

15

6676297

SEAL KIT W/Ref. 16-20

16

SEAL NSS - 2-piece

17

SEAL NSS

18

SEAL ASSY NSS

19

RING NSS - retaining

20

O-RING NSS

21

6676306

TIE ROD 38.25'' long

21

6676310

TIE ROD 30.00'' long

22

59D10

NUT

23

28E10

WASHER

24

6680133

BASE

25

6680134

HEAD

26

6680135

PISTON

27

6680136

PLATE

28

85D14

NUT
