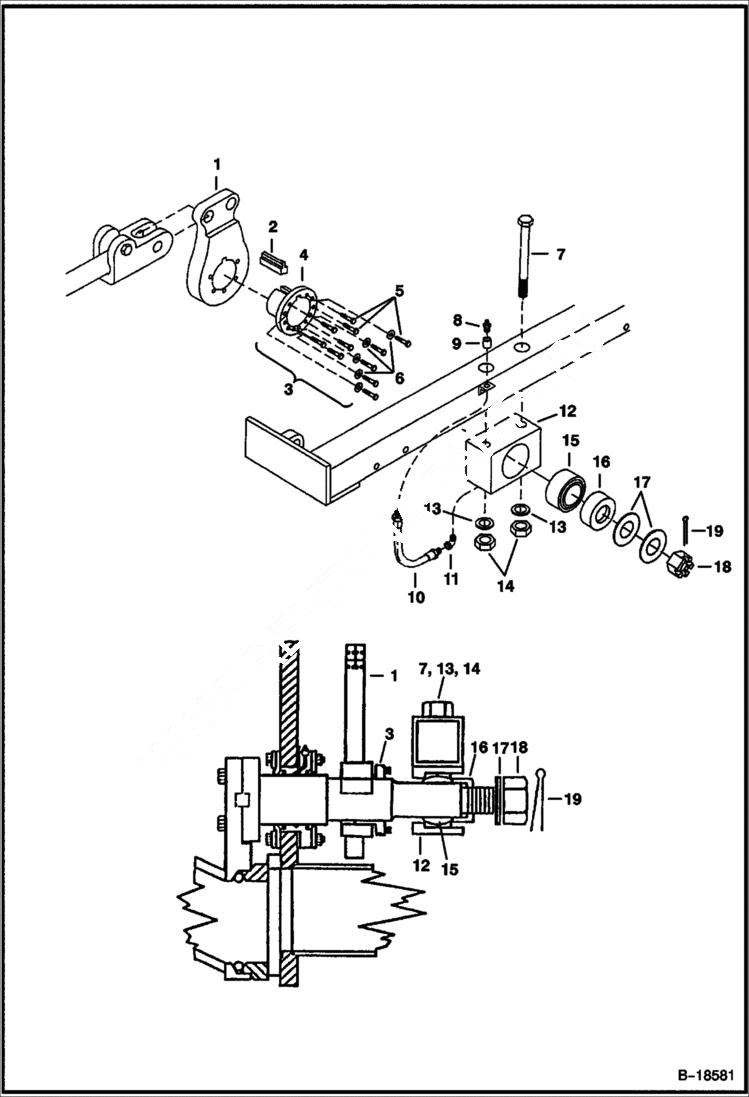

Запчасти Bobcat CONCRETE PUMP CRANK ARM ASSEMBLY Concrete Pump - S/N Prefix 2331 Loader

1

6676284

CRANK ARM

2

6679119

KEY, STEP stepped - Was 7J009208B - B

3

6676286

BUSHING ASSY W/Ref. 4-6

4

BUSHING NSS - Order Ref. 3

5

17C620

BOLT

6

28E6

WASHER

7

17C12128

BOLT

8

10H25

FITTING, GREASE 5

9

6676287

COUPLER

10

6676288

HOSE

11

6676289

ELBOW

12

6676290

BLOCK

13

28E12

WASHER

14

85D12

NUT, 5

15

6676291

BEARING

16

6676292

SLEEVE

17

6676293

WASHER

18

4D24

NUT,SLOTTED

19

1F840

PIN,COTTER
