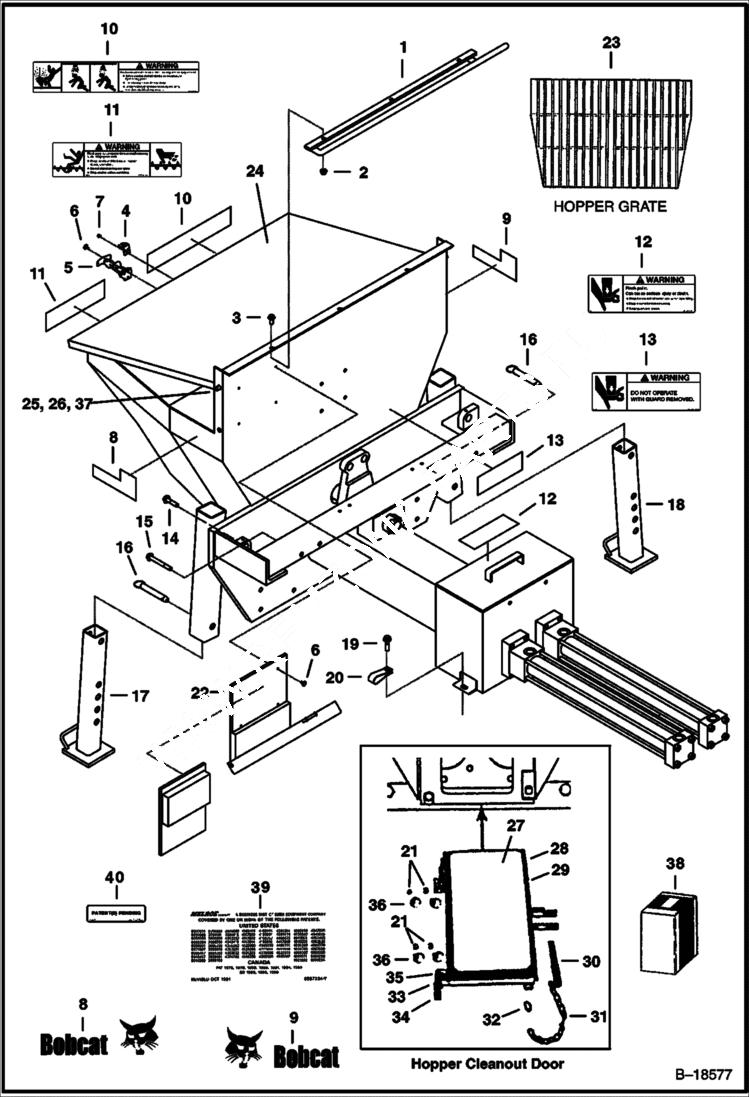

Запчасти Bobcat CONCRETE PUMP HOPPER & ATTACHING PARTS Concrete Pump - S/N Prefix 2331 Loader

1

6906032

HANDLE

2

55D6

NUT

3

35C616

BOLT 5

4

1547283

LATCH ASY Was 6906111 - A

5

1547283

LATCH ASY

5

1F308

PIN, COTTER if equipped

6

6657352

RIVET

7

6657353

RIVET

8

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - B

9

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - B

10

6905980

DECAL warning, pipeline

11

6905981

DECAL warning, pump

12

6905982

DECAL warning, box

13

6905983

DECAL warning, guard

14

BOLT NLA - Order 31C832 bolt - Was 35C832 - A

15

31C864

BOLT

16

6906008

PIN

17

STAND NLA - Was 6906020 - A

18

STAND NLA - Was 6906018 - A

19

35C828

BOLT

20

6906043

CLAMP

21

61D4

NUT 5

22

6675615

BOX manual

23

6676278

GRATE hopper

24

6678859

COVER hopper - includes (2) of Ref. 37 - Was 6676276 - A

25

6676277

BUSHING

26

1F416

PIN

27

6676268

DOOR hopper cleanout

28

6676269

GASKET door

29

6676270

RETAINER gasket

30

6676271

WEDGE PIN

31

6676272

CHAIN

32

6676273

LINK

33

6676274

HINGE PIN

34

61D10

NUT

35

7D10

NUT

36

6676275

BOLT

37

6678860

PIN

38

6906040AR

TRANS KIT

38

6906040BR

TRANS KIT

38

6906041AR

DECAL KIT

38

6906041BR

DECAL KIT

38

6906041JP

DECAL KIT

39

DECAL NLA - patent - Was 6557224 - C

40

DECAL PATENT PEND NLA - Was 6810666 - C
