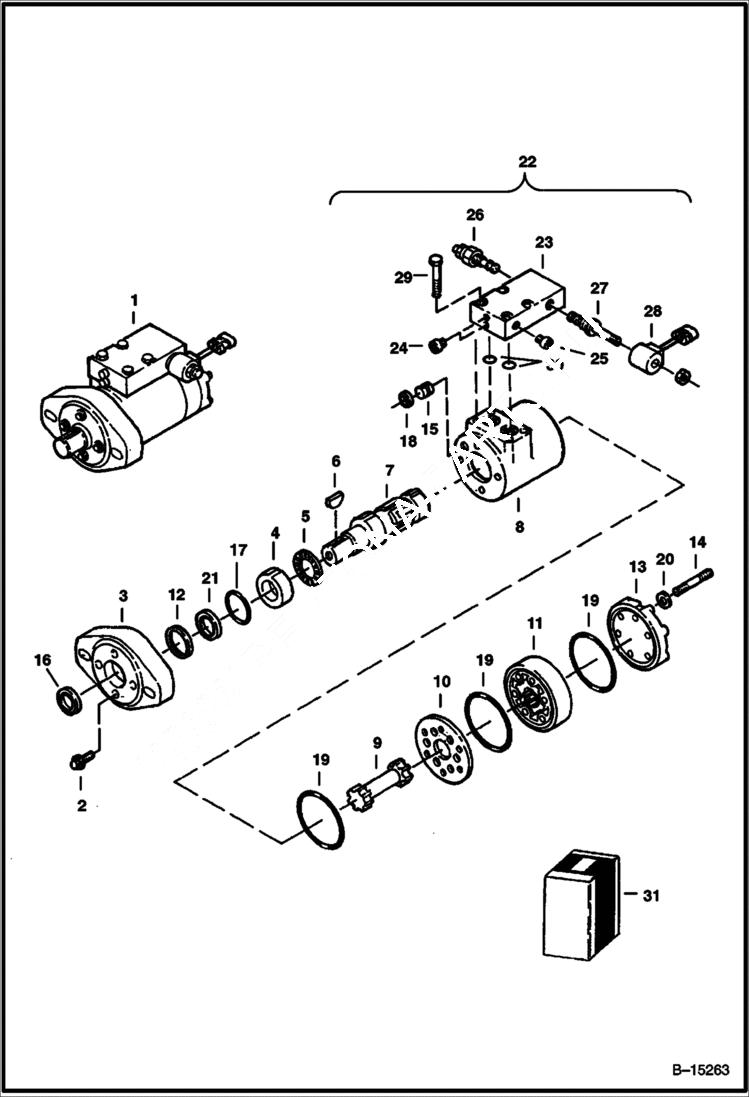

Запчасти Bobcat CONCRETE MIXER CONCRETE MIXER (Hydraulic Motor) (6785) (A016) (AK74) Loader

1

MOTOR ASSY NLA - W/Ref. 2-30 - model 101-2675-009 - Order 6676584 motor - Was 6673784 - A

1

6676584

MOTOR HYD W/Ref. 2-30 - model 101-2839-009

2

6665325

SCREW cap

3

7022754

FLANGE, MOUNTING Was 6651239 - A

4

7019134

CUP, BEARING Was 6513279 - A

5

6513280

BEARING thrust needle

6

6634899

KEY woodruff

7

6634900

SHAFT straight

8

6673813

HOUSING

9

6653555

DRIVE Use W/NLA 6673784 motor

9

6641050

DRIVE Use W/ 6676584 motor

10

6635659

SPACER PLATE

11

6673815

GEROTOR Use W/NLA 6673784 motor

11

7008817

GEROTOR Use W/ 6676584 motor

12

6651241

WASHER

13

6635662

END CAP

14

6673816

SCREW Use W/NLA 6673784 motor

14

7008818

SCREW Use W/ 6676584 motor

15

6653268

PLUG

16

6634895

SEAL

17

25K30124

O RING 10

18

6673814

SEAL

19

6665328

SEAL

20

SEAL NSS

21

6651240

SEAL

22

6674332

VALVE ASSY W/Ref. 23 - 28

23

6674326

MANIFOLD

24

6674327

PLUG

25

6674328

PLUG

26

6674329

RELIEF VALVE

27

6674330

SPOOL

27

6674333

SEAL KIT

28

6671026

COIL .64'' dia hole - Was 6674331 - B,D

29

BOLT NLA - Was 6674334 - A

30

25K30026

O RING 10

31

6653269

SEAL KIT W/Ref. 16 - 21
