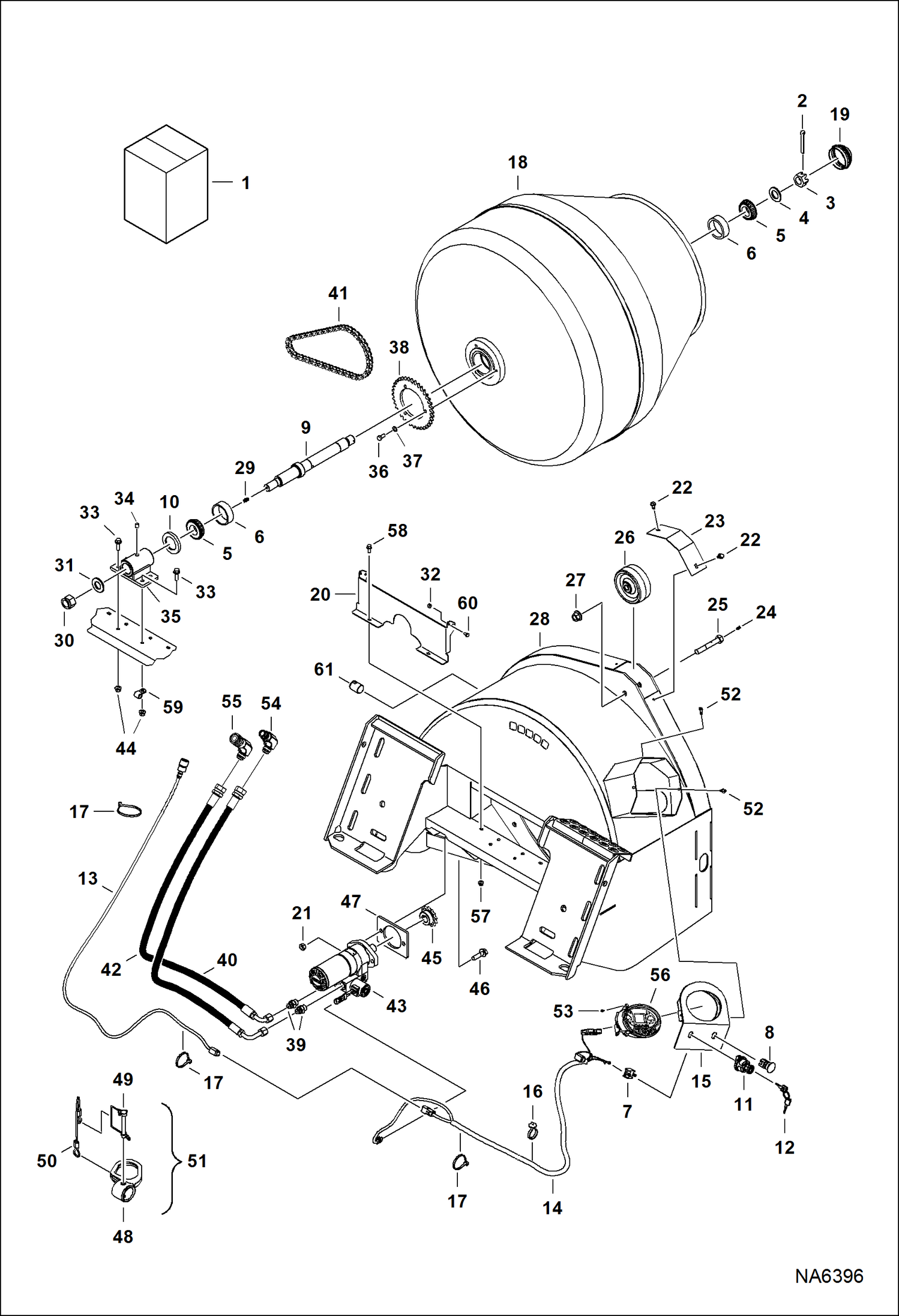

Запчасти Bobcat CONCRETE MIXER CONCRETE MIXER (AK74) Loader

1

CONCRETE MIXER SALES #7186695

2

1F632

PIN

3

6D18

NUT CASTL

4

6673771

WASHER

5

6673775

BEARING

6

6673776

RACE

7

6673180

SWITCH, E STOP

8

6673181

CONTACT

9

6673770

SHAFT

10

6673781

SEAL

11

6693245

SWITCH, IGN

12

6693241

KEY 10 Was 6709527 - A

13

7150497

HARNESS, INPUT 7-PIN

14

7196551

HARNESS, CONCRETE MIXER

15

7192950

MOUNT, PANEL DISPLAY

16

6675734

STRAP, TIE

17

6624289

STRAP, TIE

18

6688665

DRUM

19

7024437

CAP, GREASE

20

7183658

COVER, CHAIN

21

85D8

NUT, 5

22

84G3110

SCREW

23

7192957

COVER, WHEEL

24

10H35

FITTING, GREASE 10

25

6673761

BOLT

26

6673779

WHEEL

27

83D10

NUT 5

28

7183660

FRAME, MAIN ASSY

29

10H25

FITTING, GREASE 5

30

60D16

NUT

31

25E31

WASHER

32

87D4

NUT

33

31C620

BOLT

34

15G808

SET SCREW

35

7184113

COLLAR, SHAFT

36

17C612

BOLT 5

37

4E6

WASHER

38

6673762

SPROCKET

39

15KB0808

FITTING, HYD CONNECTOR

40

7186108

HOSE, HYD

40

79K8

O RING 10

41

7185302

CHAIN 60 links

42

7186109

HOSE, HYD

43

6676584

MOTOR HYD See Illustration CONCRETE MIXER/ B15263

44

83D6

NUT 5

45

6673780

SPROCKET

46

31C828

BOLT

47

6673769

PLATE

48

GUIDE NSS - Order Ref. 51

49

7161559

PIN, SNAPPER

50

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

50

6558309

WIRE ROPE bulk - sold per foot

50

6558310

SLEEVE

51

7161953

GUIDE, HOSE ASSY Ref. 48-50

52

84G2510

BOLT

53

58G406

BOLT

54

7168432

COUPLER, FF MALE

55

7168433

COUPLER, FF FEMALE

56

7020381

PANEL, DISPLAY

57

55D5

NUT

58

31C512

BOLT

59

30H31

CLAMP 10

60

17C408

BOLT

61

7170300

PIN, PIVOT
