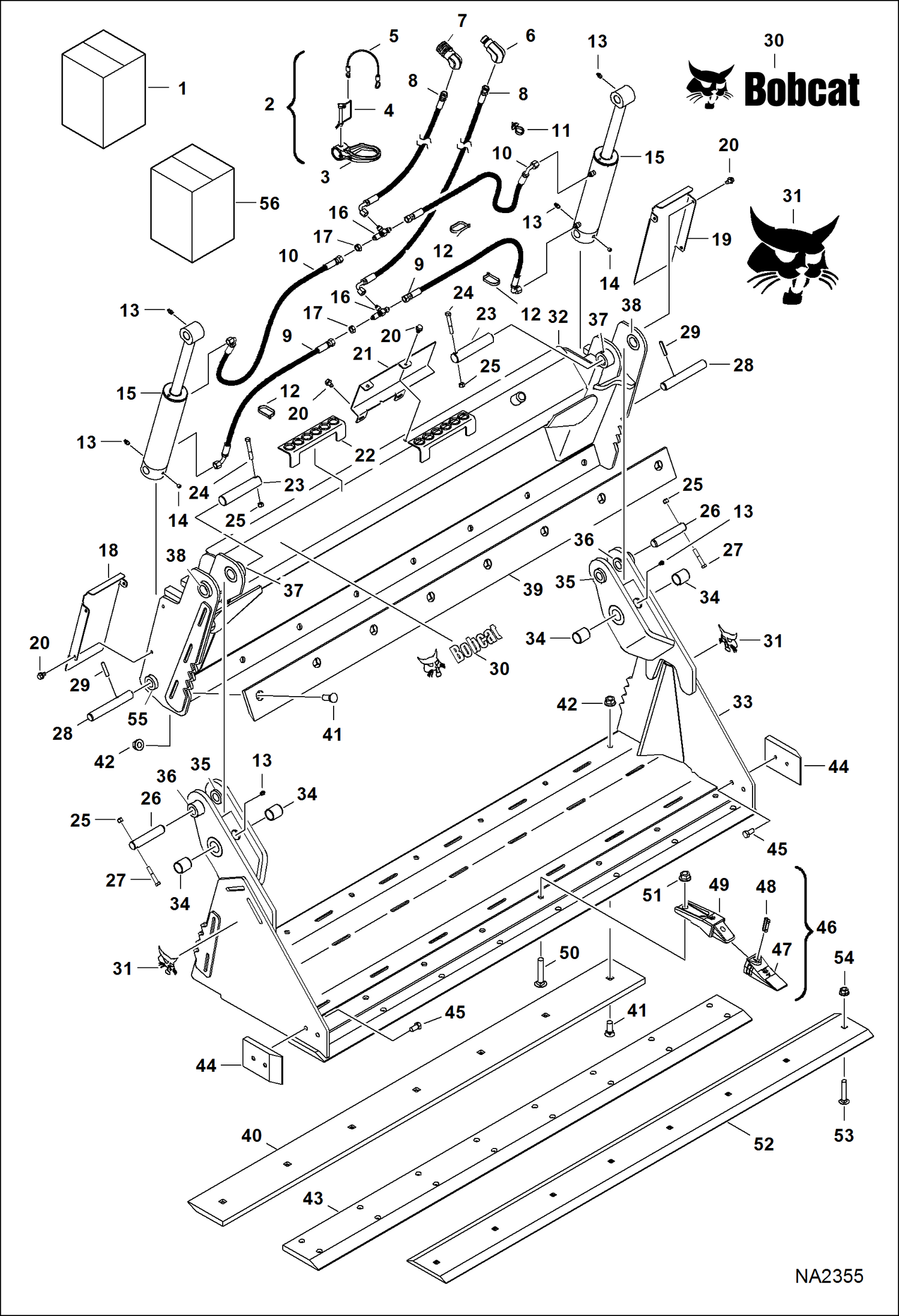

Запчасти Bobcat COMBINATION BUCKET COMBINATION BUCKET 62 (AEMY) 68 (AEMZ) 74 (AENO) 80 (AEN1) 84 (AEN2) Loader

1

COMBINATION BUCKET SALES #7167310 - 62''

1

COMBINATION BUCKET SALES #7167311 - 68''

1

COMBINATION BUCKET SALES #7167312 - 74''

1

COMBINATION BUCKET SALES #7167313 - 80''

1

COMBINATION BUCKET SALES #7167314 - 84''

2

7161953

GUIDE, HOSE ASSY Ref. 3-5

3

GUIDE NSS - Order Ref. 2

4

7161559

PIN, SNAPPER

5

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve - Was 7167775 - D

5

6558309

WIRE ROPE bulk - sold per foot

5

6558310

SLEEVE

6

7167304

COUPLER, MALE

7

7167305

COUPLER, FEMALE

8

7167497

HOSE, HYD

9

7170017

HOSE, HYD for 62'' Combo Bucket

9

7169440

HOSE, HYD for 68'' Combo Bucket

9

7169241

HOSE, HYD for 74'' Combo Bucket

9

7169939

HOSE, HYD for 80'' Combo Bucket

9

7165067

HOSE, HYD for 84'' Combo Bucket

10

7170018

HOSE, HYD for 62'' Combo Bucket

10

7169441

HOSE, HYD for 68'' Combo Bucket

10

7169242

HOSE, HYD for 74'' Combo Bucket

10

7169940

HOSE, HYD for 80'' Combo Bucket

10

7165068

HOSE, HYD for 84'' Combo Bucket

11

6675734

STRAP, TIE buttonhead tie

12

6624289

STRAP, TIE

13

10H25

FITTING, GREASE 5

14

16F2

PLUG

15

7166114

CYLINDER, BUCKET COMBO See Illustration CYLINDER/ NA2354

16

91K5

TEE

17

86F5

NUT Was 7D8 - B,D

18

7165688

COVER RH

19

7165689

COVER LH

20

84G3710

SCREW

21

7169800

COVER, HOSE for 62'', 68'' & 74'' Combo Buckets

21

7169941

COVER, HOSE for 80'' & 84'' Combo Buckets

22

6577917

STEP weld-on

23

6705862

PIN

24

17C640

BOLT 5

25

85D6

NUT, 5

26

6705863

PIN

27

17C636

BOLT

28

7165454

PIN

28

7165069

PIN

29

14J3728

PIN

30

7109473

DECAL, LOGO BOBCAT AND HEAD

31

6809228

DECAL

32

7166085

BUCKET, COMBO REAR 62''

32

7166084

BUCKET, COMBO REAR 68''

32

7163839

BUCKET, COMBO REAR 74''

32

7164487

BUCKET, COMBO REAR 80''

32

7164484

BUCKET, COMBO REAR 84''

33

7167160

BUCKET, COMBO FRONT 62''

33

7167159

BUCKET, COMBO FRONT 68''

33

7163840

BUCKET, COMBO FRONT 74''

33

7164488

BUCKET, COMBO FRONT 80''

33

7164485

BUCKET, COMBO FRONT 84''

34

6562067

BUSHING press fit

35

6533176

BUSHING weld-on

36

6705876

BUSHING weld-on

37

6624872

BUSHING weld-on

38

6705866

BUSHING weld-on

39

7167253

EDGE, CUTTING BOLT-ON 62'' for rear bucket

39

7167252

EDGE, CUTTING BOLT-ON 68'' for rear bucket

39

7164098

EDGE, CUTTING BOLT-ON 74'' for rear bucket

39

7164586

EDGE, CUTTING BOLT-ON 80'' for rear bucket

39

7164583

EDGE, CUTTING BOLT-ON 84'' for rear bucket

40

7167251

EDGE, CUTTING BOLT-ON 62''

40

7167250

EDGE, CUTTING BOLT-ON 68''

40

7164099

EDGE, CUTTING BOLT-ON 74''

40

7164585

EDGE, CUTTING BOLT-ON 80''

40

7164584

EDGE, CUTTING BOLT-ON 84''

41

39C1028

BOLT, PLOW qty. (14) for 62'' & 68'', qty. (15) for 74'', qty. (16) for 80'', qty. (17) for 84''

42

89D10

NUT qty. (14) for 62'' & 68'', qty. (15) for 74'', qty. (16) for 80'', qty. (17) for 84''

43

6729367

EDGE, CUTTING WELD-ON 62''

43

6729368

EDGE, CUTTING WELD-ON 68''

43

6729369

EDGE, CUTTING WELD-ON 74'' front

43

6729370

EDGE, CUTTING WELD-ON 80'' front

43

6807717

EDGE, CUTTING FRONT WELD-ON 84'' 84'' weld-on front

44

6719407

EDGE, CUTTING BOLT-ON 4'' side cutter

45

17C816

BOLT

46

6737322

KIT, TOOTH BUCKET 8 W/Ref. 47-51 - qty. (7) for 62'' & 68'', qty. (8) for 74'' & 80'', qty. (9) for 84''

47

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - (7) for 62'' & 68'', (8) for 74'' & 80'', (9) for 84''

48

6737326

PIN, FLEX BUCKET TOOTH qty. (7) for 62'' & 68'', qty. (8) for 74'' & 80'', qty. (9) for 84''

49

SHANK NSS - order Ref. 46

50

6729510

BOLT qty. (7) for 62'' & 68'', qty. (8) for 74'' & 80'', qty. (9) for 84''

51

57D10

NUT qty. (7) for 62'' & 68'', qty. (8) for 74'' & 80'', qty. (9) for 84''

52

6718005

EDGE, CUTTING BOLT-ON 62''

52

6718006

EDGE, CUTTING BOLT-ON 68''

52

6718007

EDGE, CUTTING BOLT ON 74''

52

6718008

EDGE, CUTTING BOLT-ON 80''

52

6807069

EDGE, CUTTING BOLT ON BEVELED REV 84.75'' 84'' bolt-on front

53

39C1032

BOLT qty. (7) for 62'' & 68'', qty. (8) for 74'' & 80'', qty. (9) for 84'' - W/Ref. 47 - 51

54

85D10

NUT, 5 qty. (7) for 62'' & 68'', qty. (8) for 74'' & 80'', qty. (9) for 84'' - W/Ref. 47 - 51

55

6533176

BUSHING outer (shown) - 1.17'' long

55

7165262

BUSHING inner (not shown) - 2.65'' long

56

KIT, TRANSLATION NSS - translation kit #7179103AR - order components

56

KIT, TRANSLATION NSS - translation kit #7179103BR - order components
