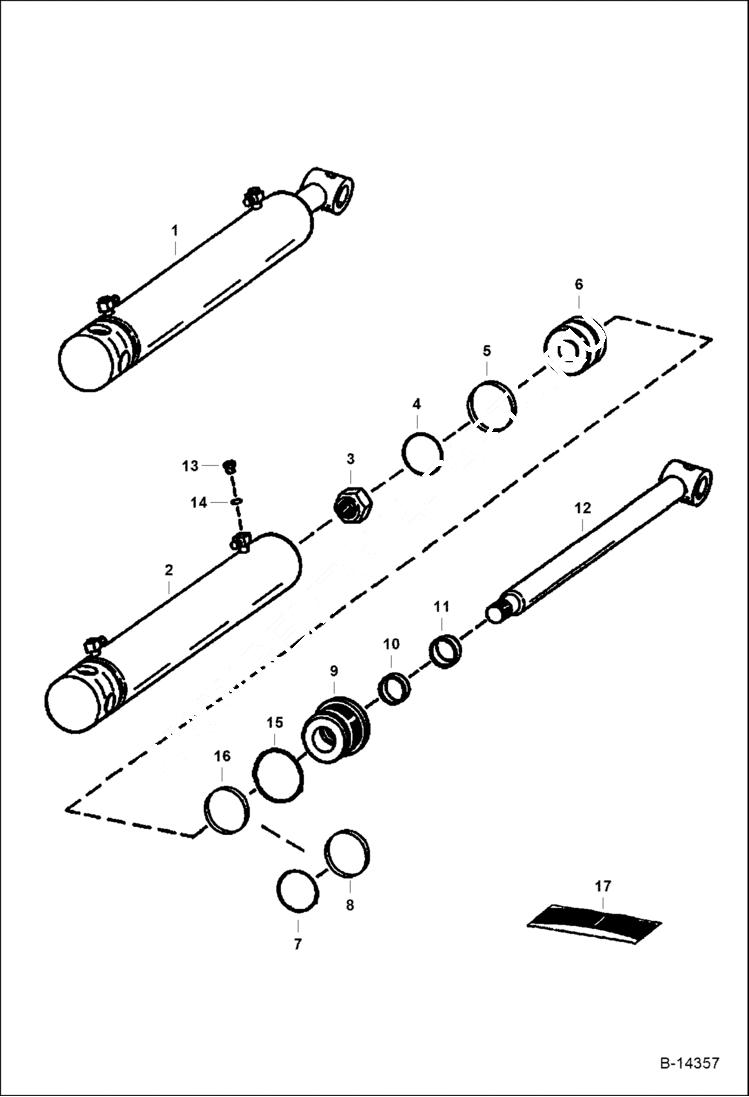

Запчасти Bobcat COMBINATION BUCKET CYLINDER Combination Bucket Loader

1

CYLINDER See Illustration CYLINDER/ B18236 - NLA - Ref. 2-15 - Was 6589416 - A

2

6815652

CASE Was 6666931 - A

3

92D12

NUT

4

25K30202

O RING 10 Was 54K30202 - B

5

1522534

SEAL

6

6589419

PISTON

7

25K40208

O RING 10 Was 54K40208 - B

8

73K228

BACK-UP RING back-up - Was 80K228 - A

9

6538582

HEAD Was 6628031 - A

10

6665184

SEAL Was 6667324 - B,D

11

6665208

SEAL

12

SHAFT, ROD CYL BUCKET NLA - .75'' threads - Order 6808219 shaft, 6807494 piston & 92D14 nut - Was 6589426 - A

12

6808219

SHAFT, ROD CYL BUCKET .875'' threads

13

PLUG NLA - flat boss face - Was 47K000002B - A

13

90KV2

PLUG tapered boss face

14

79K3

O RING 10 flat boss face

14

95K3

O'RING tapered boss face

15

82K230

O-RING Was 58K230 - A

16

7008778

SEAL, QUAD

17

7137867

KIT, SEAL Ref. 3-5, 10, 11, 15, & 16 - Use W/ .75'' threaded shaft - Was 6803331 - A

17

7137866

KIT, SEAL Ref. 3-5, 10, 11, 15, & 16 - Use W/ .875'' threaded shaft
