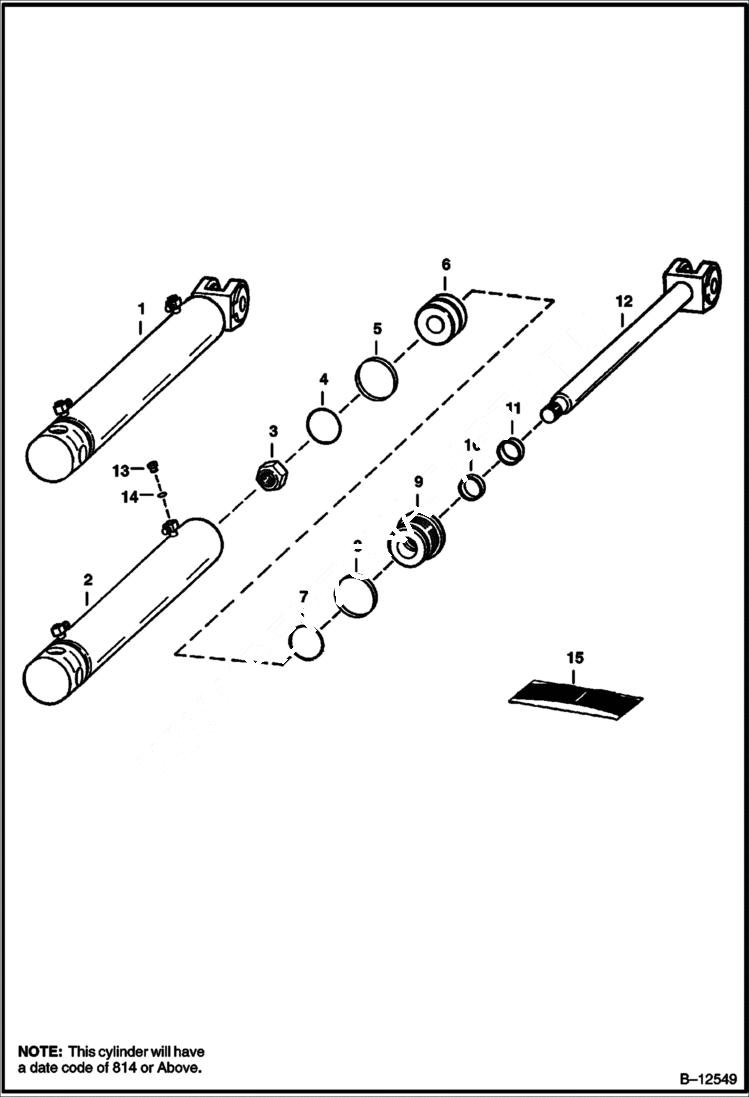

Запчасти Bobcat COMBINATION BUCKET CYLINDER Combination Bucket Loader

1

6531599

CYLINDER

2

6531601

CASE

3

92D14

NUT Was 86D000014B - A

4

O-RING NSS

5

O-RING NSS

6

6593092

PISTON

7

O-RING NSS

8

WASHER NSS - back-up

9

6533265

HEAD Was 6593483 - A

10

SEAL NSS

11

SEAL NSS

12

6594174

ROD

13

PLUG NLA - flat boss face - Was 47K-2 - A

13

90KV2

PLUG tapered boss face

14

79K3

O RING 10 for flat boss face

14

95K3

O'RING for tapered boss face

15

6591670

SEAL KIT Ref. 4, 5, 7, 8, 10 & 11
