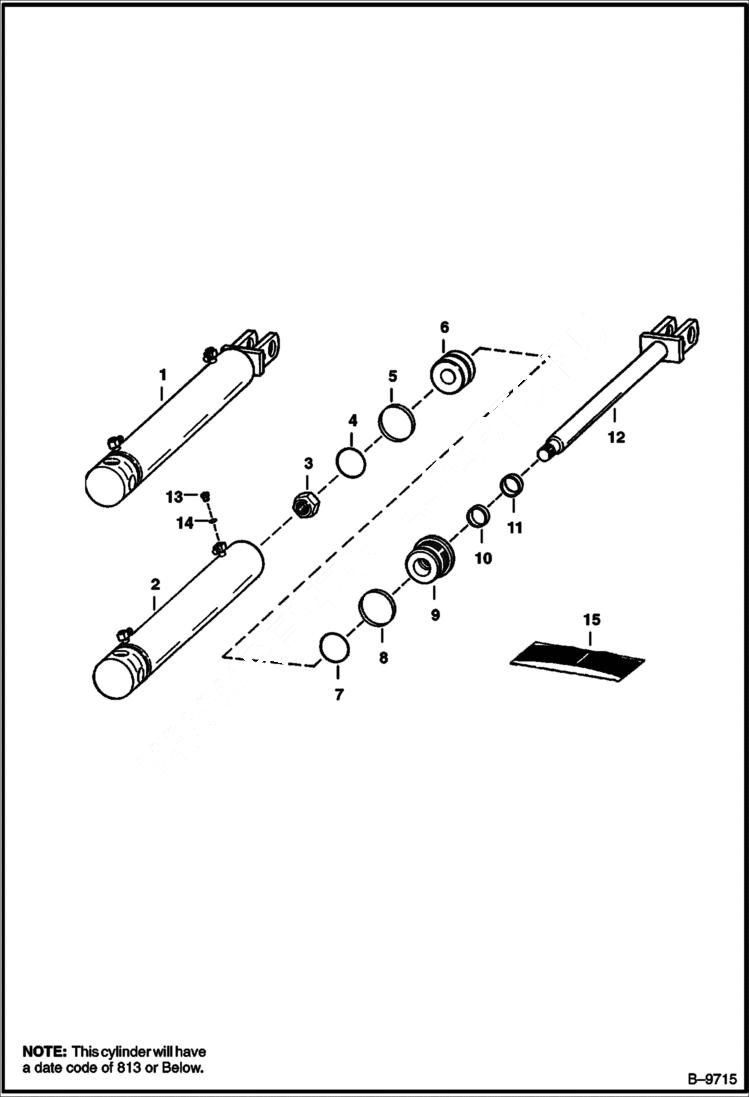

Запчасти Bobcat COMBINATION BUCKET CYLINDER Combination Bucket Loader

1

CYLINDER NLA - R.H. - Order 6531599 - Was 6594173 - A

1

CYLINDER NLA - L.H. - Order 6531599 - Was 6594185 - A

2

CASE NLA - R.H. - Order 6531601 - Was 6594183 - A

2

CASE NLA - L.H. - Order 6531601 - Was 6594187 - A

3

92D14

NUT Was 86D000014B - A

4

O-RING NSS

5

O-RING NSS

6

6593092

PISTON

7

O-RING NSS

8

WASHER NSS - back-up

9

6533265

HEAD Was 6593483 - A

10

SEAL NSS

11

SEAL NSS

12

6594174

ROD

13

47K2

PLUG

14

79K3

O RING 10

15

6591670

SEAL KIT Ref. 4, 5, 7, 8, 10 & 11
