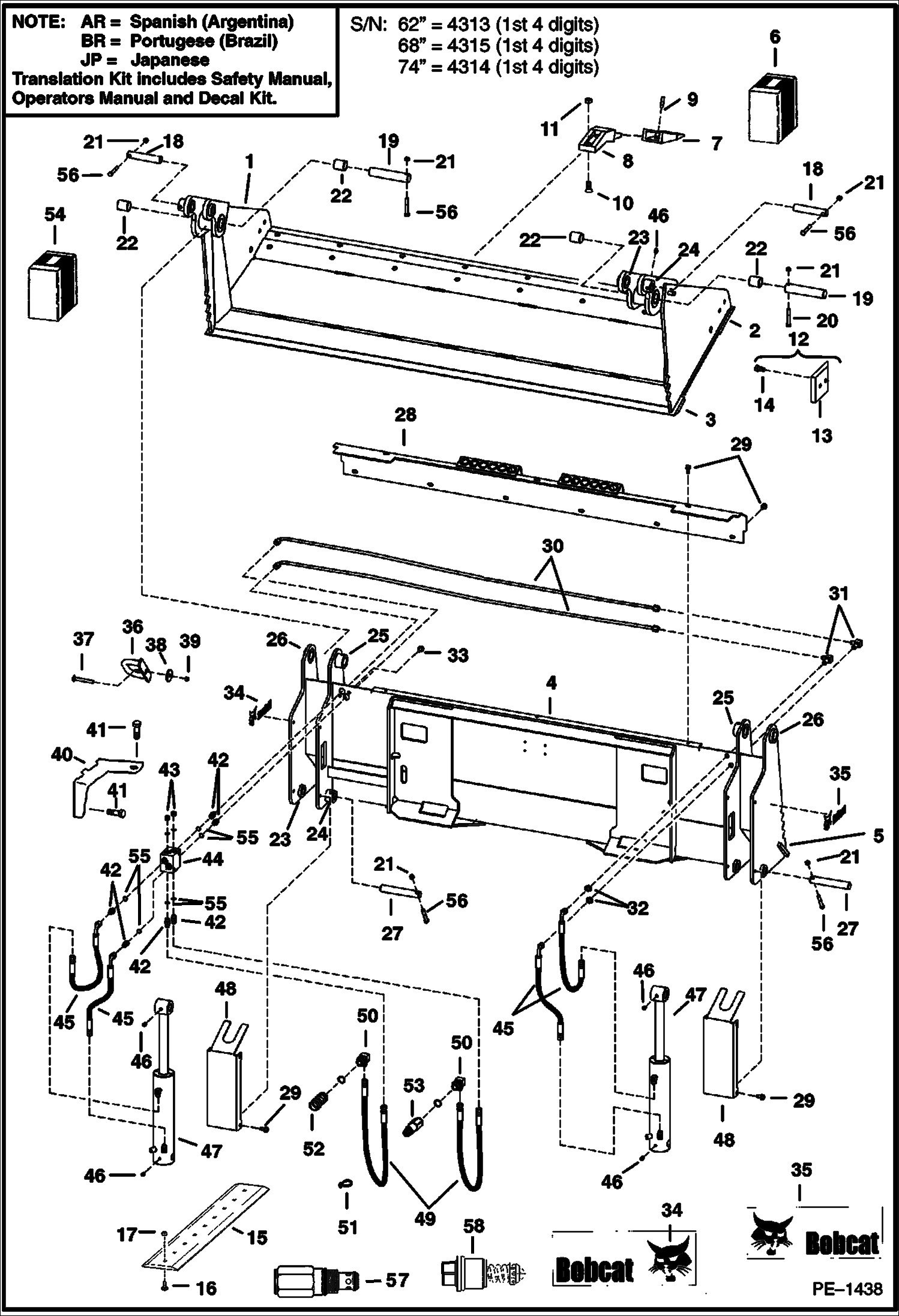

Запчасти Bobcat COMBINATION BUCKET COMBINATION BUCKET (62, 68 & 74 - With Bolt-on Teeth) Loader

1

6811391

CLAMSHELL front - 62''

1

6811392

CLAMSHELL front - 68''

1

6811393

CLAMSHELL front - 74''

2

6729367

EDGE, CUTTING WELD-ON 62''

2

6729368

EDGE, CUTTING WELD-ON 68''

2

6729369

EDGE, CUTTING WELD-ON 74''

3

6811422

EDGE, CUTTING WELD ON BEVELED 62'' weld-on 62''

3

6713381

EDGE, CUTTING WELD ON BEVELED 68.01'' weld-on 68''

3

6713768

EDGE, CUTTING WELD ON BEVELED 74'' weld-on 74''

4

6813043

BUCKET rear - 62'' - Was 6705874 - A

4

6706382

REAR BUCKET rear - 68''

4

6713763

REAR BUCKET rear - 74''

5

6813048

EDGE, CUTTING WELD ON 62'' weld-on 62'' - Was 6705872 - A

5

6706381

EDGE, CUTTING WELD ON 68.01'' weld-on 68''

5

6713772

EDGE, CUTTING WELD ON 74.50'' weld-on 74''

6

6737322

KIT, TOOTH BUCKET 8 with 8 tooth assy's & hardware - WRef. 7-11 - Was 6732465 - A

6

KIT NLA - 8 tooth - Order 6737322 - W/Ref. 7-11 - Was 6732465 - A

7

6737325

TOOTH, BUCKET 10 See BTI376 - 140 mm (5.5'') long - (7) for 62'' & 68'', (8) for 74'' & 80'' - Was 6728801 - A

7

7102097

TOOTH, WIDE 4 See BTI376 - 140 mm (5.5'') long x 114,3 mm (4.5'') wide - Used on corners of bucket - not in kit - Was 6728811 - A

8

SHANK NSS - order Ref. 6

9

14J3732

PIN, STRAIGHT 5 See BTI376 - (7) for 62'' & 68'', (8) for 74''

9

6737326

PIN, FLEX BUCKET TOOTH See BTI376 - (7) for 62'' & 68'', (8) for 74''

10

6729510

BOLT (14) for 62'' & 68'', (16) for 74''

11

57D10

NUT (14) for 62'' & 68'', (16) for 74''

12

6729084

KIT, EDGE CUTTING side edge - w/ref. 13 & 14

13

6719407

EDGE, CUTTING BOLT-ON 4'' threaded

14

17C816

BOLT

15

6718005

EDGE, CUTTING BOLT-ON 62''

15

6718006

EDGE, CUTTING BOLT-ON 68''

15

6718007

EDGE, CUTTING BOLT ON 74''

16

39C1032

BOLT (7) for 62'' & 68'', (8) for 74''

17

85D10

NUT, 5 (7) for 62'' & 68'', (8) for 74''

18

6705863

PIN

19

6705862

PIN

20

17C640

BOLT 5

21

85D6

NUT, 5 Was 87D000006B - A

22

6562067

BUSHING

23

6533176

BUSHING weld-on

24

6705876

BUSHING weld-on

25

6624872

BUSHING weld-on

26

6705866

BUSHING weld-on

27

6705861

PIN

28

6706801

COVER 62'' - 50.98'' overall length

28

6813044

COVER 62'' - 51.58'' overall length

28

6706800

COVER 68''

28

6713764

COVER 74''

29

84G3712

BOLT 5

30

6809861

TUBELINE 62''

30

6809862

TUBELINE 68''

30

6809863

TUBELINE 74''

31

ELBOW NLA - bulkhead - Was 88FN00005B - A

31

88F5

ELBOW bulkhead

32

86F5

NUT

33

35C612

BOLT

34

6727323

DECAL, LOGO BOBCAT AND HEAD

35

6727324

DECAL, LOGO BOBCAT AND HEAD

36

6706160

GUIDE

37

17C648

BOLT 5

37

17C656

BOLT

37

17C664

BOLT

38

872229

WASHER

39

85D6

NUT, 5

40

6813042

GUARD 62'' only - Was 6806968 - A

41

84G3716

SCREW 5

42

ADAPTOR NLA - W/Ref. 55 - tapered boss face - Was 15KV00005B - A

42

15KB0606

FITTING, HYD CONNECTOR W/Ref. 55 - flat boss face

43

90KV5

PLUG tapered boss face

43

90K5

PLUG flat boss face

44

6806339

BLOCK, PORT

45

6807660

HOSE

46

10H25

FITTING, GREASE 5

47

CYLINDER See Illustration CYLINDER/ B18236

48

6705860

COVER

49

6711670

HOSE for 62 '' Combination Bucket - Was 6708339 - A

49

6717507

HOSE, HYD ASSY for 68'' & 74'' Combination Bucket

50

6589193

ELBOW

51

6624289

STRAP, TIE

52

6672960

COUPLER, FF FEMALE straight

53

6674688

COUPLER, FF MALE straight

54

6809377AR

KIT translation - see note

54

6809377BR

KIT translation - see note

55

99K6

O RING tapered boss face

55

79K6

O RING 10 flat boss face

56

17C636

BOLT

57

6678574

RELIEF VALVE 3500 PSI - .875'' threads - F Series & Newer prior to D- Series valve

58

6684645

VALVE, ANTI CAV 3500 PSI - .750'' threads - med frame w/ D series valve

58

6685304

VALVE 3300 PSI - used with 5600 Toolcat
