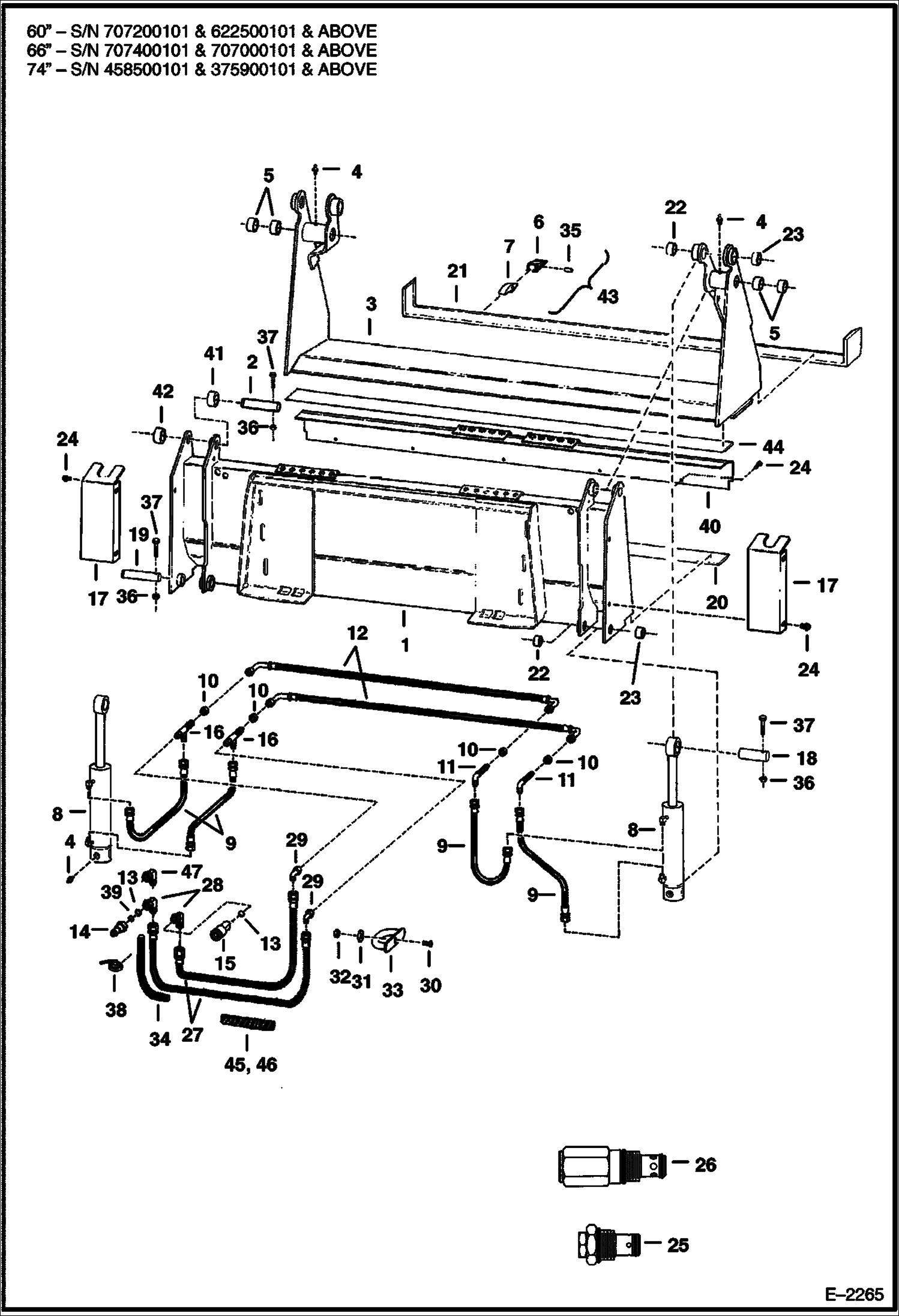

Запчасти Bobcat COMBINATION BUCKET COMBINATION BUCKET 60, 66 & 74 (1524, 1676 & 1880mm) - S/N 707200101, 622500101, 707400101, 707000101, 458500101 & 375900101 & Abv Loader

1

6705874

REAR BUCKET W/Frame - 60''(1524mm) Bucket

1

6706382

REAR BUCKET W/Frame-66''(1676mm) Bucket

1

6713763

REAR BUCKET W/Frame-74''(1880mm) Bucket

2

6705862

PIN

3

6811391

CLAMSHELL W/O Teeth - 60''(1524mm) Bucket- Was 6705885 - A

3

6811392

CLAMSHELL W/O Teeth - 66''(1676mm) Bucket- Was 6706377 - A

3

6811393

CLAMSHELL W/O Teeth - 74''(1880mm) Bucket- Was 6713762 - A

3

6811391

CLAMSHELL W/O Teeth-60''(1524mm) Bucket- Was 6707068 - A

3

6811392

CLAMSHELL W/O Teeth-66''(1676mm) Bucket- Was 6707069 - A

3

6811393

CLAMSHELL W/O Teeth-74''(1880mm) Bucket- Was 6714589 - A

4

10H25

FITTING, GREASE 5

5

6562067

BUSHING

6

1550017

TOOTH, BUCKET 25 60'' - Was 6664982 - A

6

6630424

TOOTH 66'' & 74''

7

6707129

SHANK 60'' - weld on

7

SHANK NSS - 66'' & 74'' - weld on - see ref. 43

8

CYLINDER See Illustration CYLINDER/ B18236 See Illustration CYLINDER/ B14357

9

6707443

HOSE

10

86F5

NUT

11

88F5

ELBOW

12

6707446

HOSE 60''(1524mm) Bucket

12

6707447

HOSE 66''(1676mm) Bucket

12

6713776

HOSE 74''(1880mm) Bucket

13

79K10

O RING 10 Use with poppet couplers

13

79K12

O RING 10 Use with flush face couplers

14

6598757

COUPLER, POPPET MALE straight

14

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long - Was 6667808 - A

14

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long

14

6679841

SEAL Was 6672026 - A

15

6598758

COUPLER, POPPET FEMALE straight

15

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

15

48K16

O RING 10 for poppet coupler

15

6665430

BACKUP RING for poppet coupler

16

91K5

TEE Was 91KN00005B - A

16

97K6

O RING

17

6705860

COVER

18

6705863

PIN

19

6705861

PIN

20

6705872

CUTTING EDGE Weld on - 60''(1524mm) Bucket

20

6706381

EDGE, CUTTING WELD ON 68.01'' Weld on - 66''(1676mm) Bucket

20

6713772

EDGE, CUTTING WELD ON 74.50'' Weld on - 74''(1880mm) Bucket

21

6705881

EDGE, CUTTING WELD ON BEVELED 60.39'' Weld on - 60''(1524mm) Bucket

21

6706376

EDGE, CUTTING WELD ON BEVELED 67.01'' Weld on - 66''(1676mm) Bucket

21

6713767

EDGE, CUTTING WELD ON BEVELED 75'' Weld on - 74''(1880mm) Bucket

22

6705876

BUSHING Weld on

23

6533176

BUSHING Weld on

24

84G3712

BOLT 5

25

6513594

RELIEF VALVE Use in Gresen valve

26

6684679

RELIEF VALVE Use in Bobcat valve - Was 6666931 - A

26

6514641

RELIEF VALVE Use in Cessna valve

27

6711670

HOSE 60''(1524mm) Bucket - Was 6708339 - A

27

6717507

HOSE, HYD ASSY 66'' & 74''(1676 & 1880mm) Bucket - Was 6708340 - A

28

1300913

ELBOW Use with poppet couplers

28

6589193

ELBOW Use with flush face couplers

29

11K5

FITTING

30

37C664

BOLT

31

872229

WASHER

32

85D6

NUT, 5

33

6706160

GUIDE

34

HOSE COVER NLA - 39''(991mm) long-order 6649389

34

6649389

HOSE COVER Bulk-sold per foot

35

18J2028

PIN, ROLL for 60''(1524mm) Bucket

35

6567620

PIN for 66'' & 74''(1676 & 1880mm) Bucket

36

85D6

NUT, 5 Was 87D000006B - A

37

17C640

BOLT 5

38

6624289

STRAP, TIE

39

6660556

ORIFICE .875'' threads - used with poppet couplers

39

6668115

ORIFICE 1.06'' threads - used with flush face couplers - do not use with 6674688 coupler

40

6813044

COVER 60''(1524mm) Bucket - Was 6706801 - A

40

6706800

COVER 66''(1676mm) Bucket

40

6713764

COVER 74''(1880mm) Bucket

41

6624872

BUSHING

42

6705866

BUSHING

43

6630397

TOOTH ASSY for 66'' & 74''(1676 & 1880mm) bucket - W/Ref. 6, 7 & 35

44

6713380

EDGE, CUTTING WELD ON BEVELED 61.39'' weld-on - 60''(1524mm) bucket

44

6713381

EDGE, CUTTING WELD ON BEVELED 68.01'' weld-on - 66''(1676mm) bucket

44

6713768

EDGE, CUTTING WELD ON BEVELED 74'' weld-on - 74''(1880mm) bucket

45

HOSE COVER NLA - order Ref. 46 - covers Ref. 27

46

6656155

HOSE COVER bulk - sold per foot

47

6678056

ELBOW with built-in .070'' orifice
