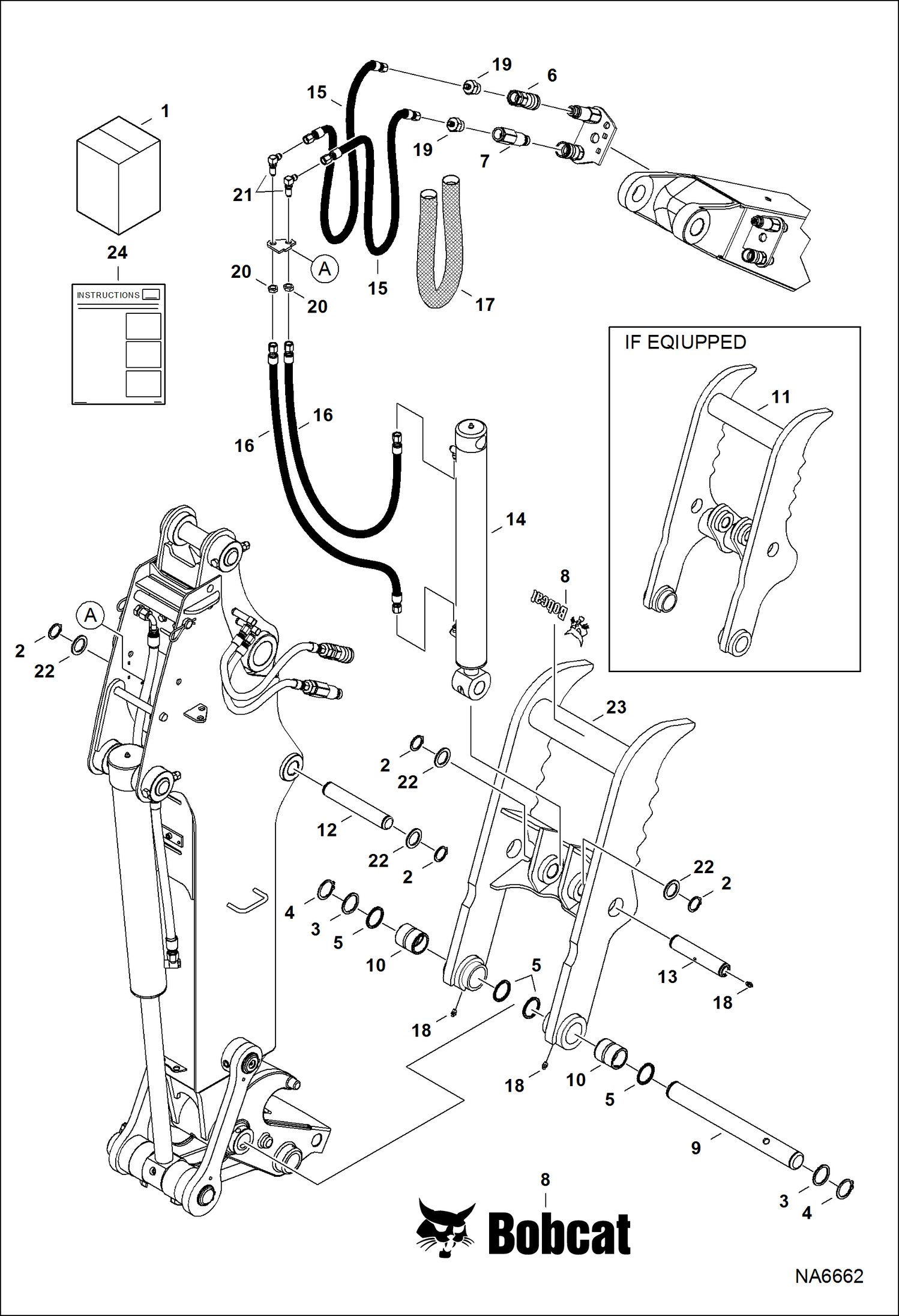

Запчасти Bobcat CLAMPS CLAMP (Kit) (Extendable Arm) (AYK8) Экскаваторы

1

KIT, CLAMP SALES #7221951 - for E42 & E45 extendable arm - Ref. 2-23

1

KIT, CLAMP SALES #7221950 - for E55 extendable arm - Ref. 2-23

2

6534154

RING

3

6628547

WASHER

4

6668787

RING

5

6669287

SEAL

6

6672960

COUPLER, FF FEMALE

7

6674688

COUPLER, FF MALE

8

6727324

DECAL, LOGO BOBCAT AND HEAD

9

7166241

PIN, PIVOT

10

7172745

BUSHING, WEAR

11

7205680

CLAMP, W/A

12

7205682

PIN, PIVOT CYL

13

7205684

PIN, PIVOT CYL

14

7206581

CYLINDER, CLAMP

15

7207042

HOSE, HYD E42 & E45

15

7207015

HOSE, HYD E55

16

7207043

HOSE, HYD E42 & E45

16

7207010

HOSE, HYD E55

17

7221203

GUARD, HOSE

18

10H25

FITTING, GREASE 5

19

15KB0612

FITTING, HYD CONNECTOR

19

79K12

O RING 10

20

86F5

NUT

21

88F5

ELBOW

22

6534111

WASHER

23

6989451

INSTRUCTIONS
