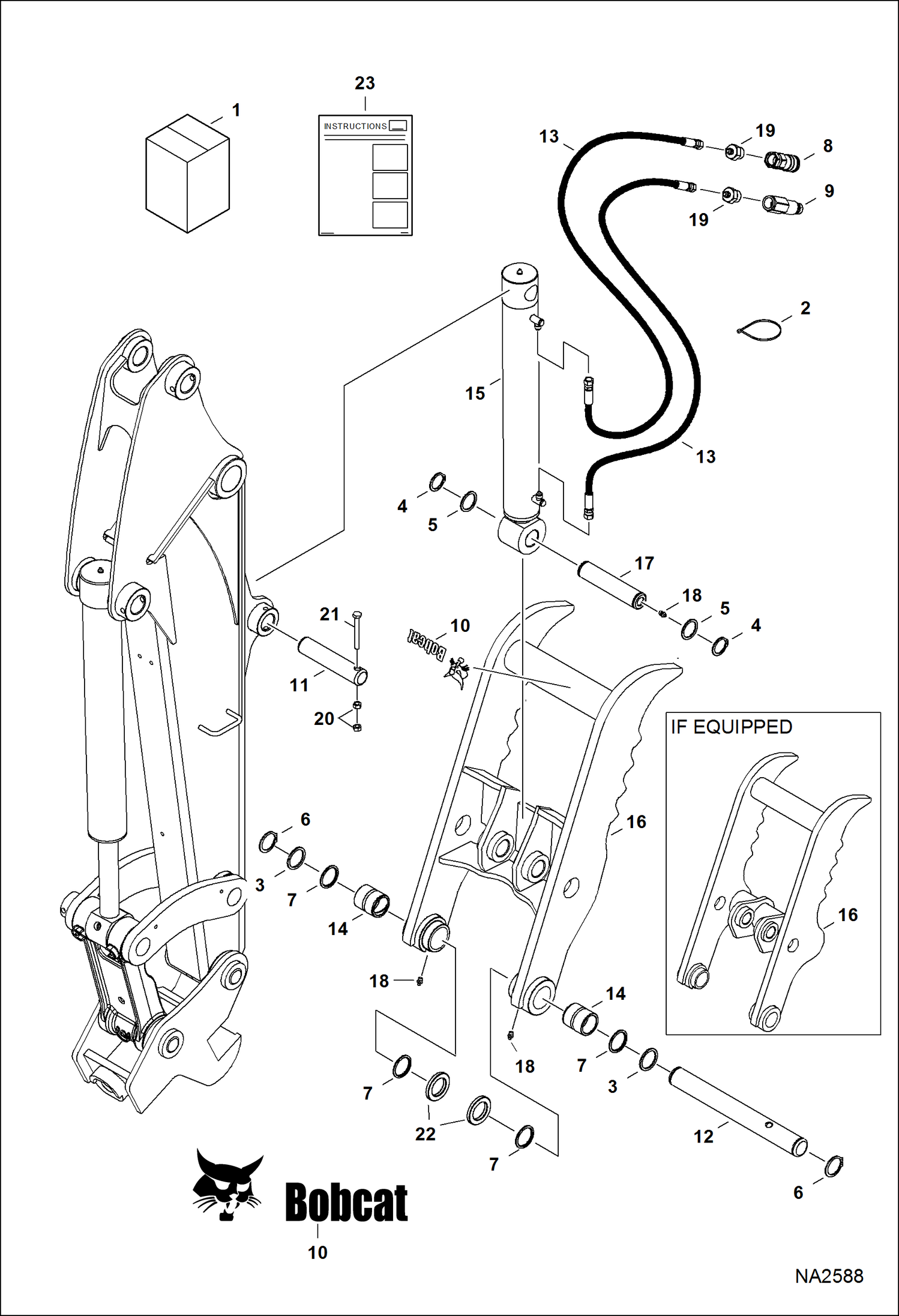

Запчасти Bobcat CLAMPS CLAMP (Kit)(W/Tag Bucket) (AJ6B) Экскаваторы

1

KIT, CLAMP SALES #7182696 - std arm - Ref. 2-23

1

KIT, CLAMP SALES #7182697 - long arm - Ref. 2-23

2

6610510

TIE

3

6628547

WASHER

4

6665618

RING

5

6666549

WASHER

6

6668787

RING

7

6669287

SEAL

8

6672960

COUPLER, FF FEMALE straight

9

6674688

COUPLER, FF MALE straight

10

6727324

DECAL, LOGO BOBCAT AND HEAD

11

7208468

PIN, PIVOT Was 7166240 - B

12

7166241

PIN, PIVOT

13

7201261

HOSE, HYD 53'' (1346 mm) long - Was 7167232 - A

13

7201260

HOSE, HYD 64.5'' (1638 mm) long - Was 7167233 - A

14

7172745

BUSHING, WEAR

15

CYLINDER, CLAMP See Illustration CLAMP/ NA2580

16

7198224

CLAMP, W/A Was 7175653 - A

17

7177698

PIN, PIVOT

18

10H25

FITTING, GREASE 5

19

15KB0612

FITTING, HYD CONNECTOR

20

4DM10

NUT

21

7CM1090

BOLT, HEX SOCKET

22

7183717

SPACER

23

6989451

INSTRUCTIONS
