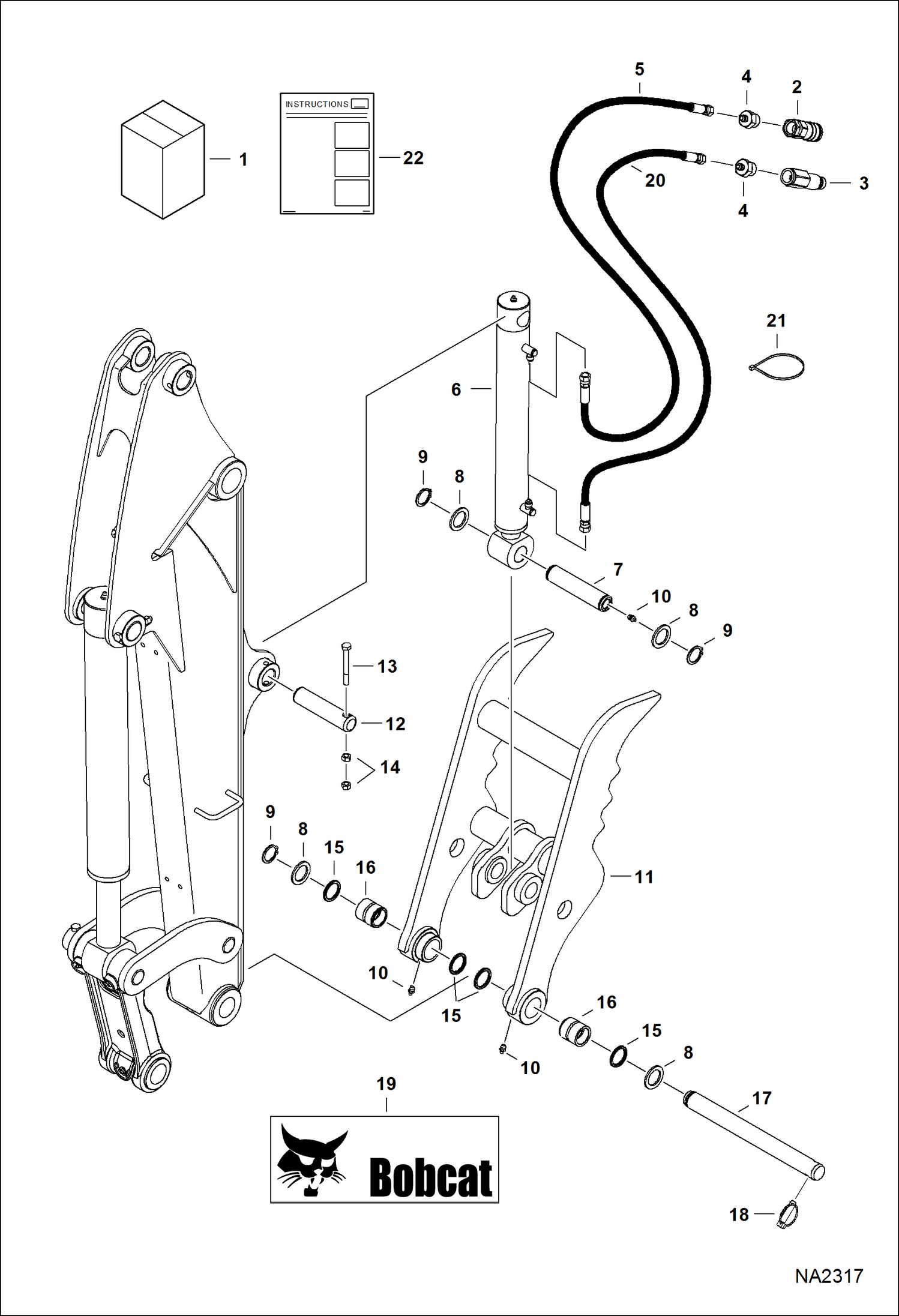

Запчасти Bobcat CLAMPS CLAMP (Kit)(W/O X-Change)(E32 & E35) (AFM1) Экскаваторы

1

KIT, CLAMP SALES #7171390 - for standard arm - W/Ref. 2-22

1

KIT, CLAMP SALES #7171391- for Long Arm - W/Ref. 2-22

2

6672960

COUPLER, FF FEMALE straight

3

6674688

COUPLER, FF MALE straight

4

15KB0612

FITTING, HYD CONNECTOR

5

7211703

HOSE, HYD for 7171390 standard arm kit - Was 7183403 - C

5

7211898

HOSE, HYD for 7171391 long arm kit - Was 7157683 - C

6

7199435

CYLINDER, CLAMP See Illustration CLAMP/ PE3415 Was 6817386 - A

7

7171044

PIN

8

6534111

WASHER

9

6534154

RING retainer

10

10H25

FITTING, GREASE 5

11

7150440

CLAMP

12

7151864

PIN, PIVOT CLAMP

13

7CM1090

BOLT, HEX SOCKET

14

4DM10

NUT

15

6652915

SEAL, OIL

16

6808246

BUSHING wear

17

7104318

PIN

18

6560382

PIN, LOCK

19

6727324

DECAL, LOGO BOBCAT AND HEAD

20

7211704

HOSE, HYD for 7171390 standard arm kit - Was 7183402 - C

20

7211898

HOSE, HYD for 7171391 long arm kit - Was 7157683 - C

21

6610510

TIE

22

6987291

INSTRUCTIONS
