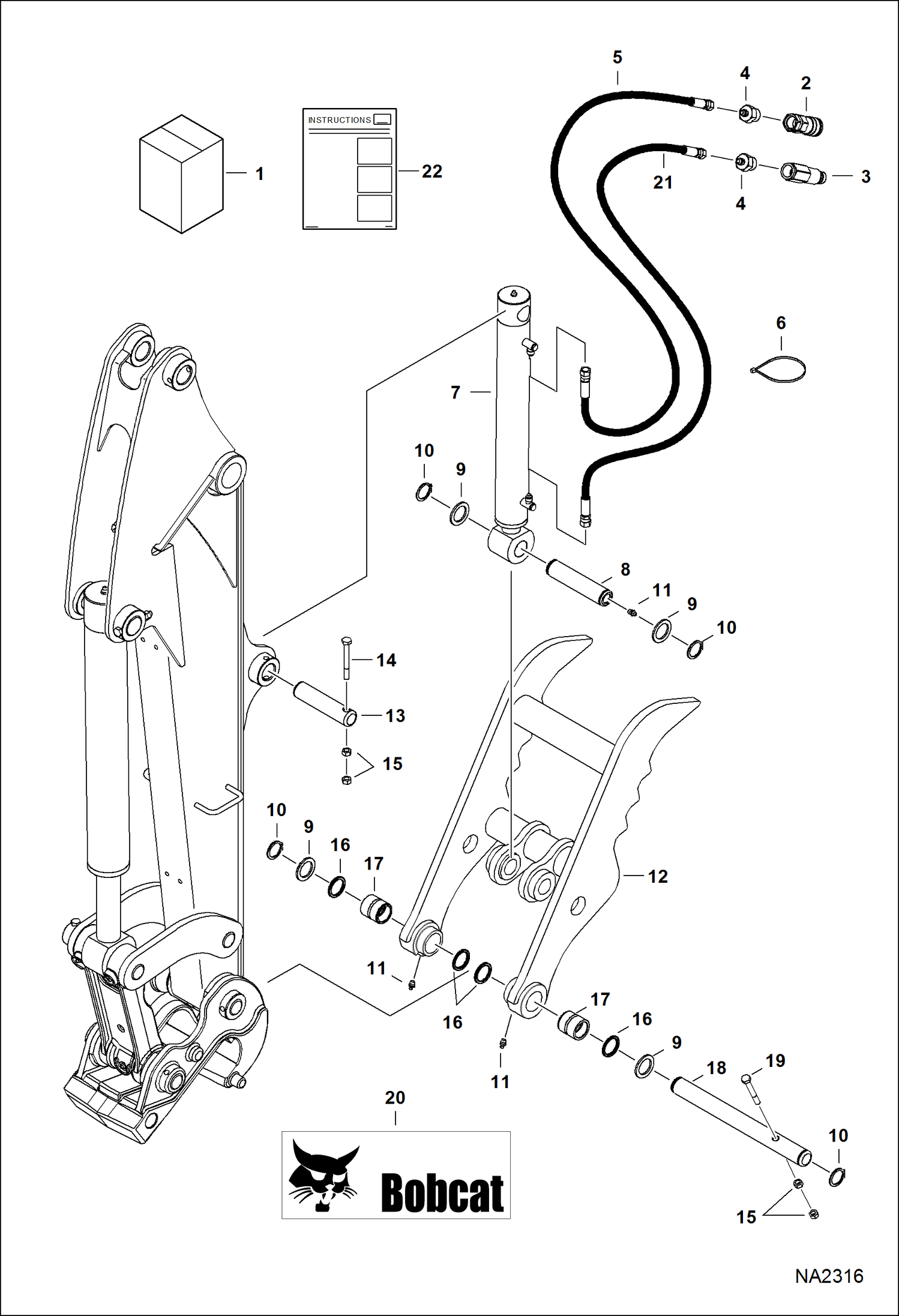

Запчасти Bobcat CLAMPS CLAMP (Kit)(W/X-Change)(E32 & E35) (AFM1) Экскаваторы

1

KIT, CLAMP SALES #7171388 - for Standard Arm - W/Ref. 2-22

1

KIT, CLAMP SALES #7171389 - for Long Arm - W/Ref. 2-22

2

6672960

COUPLER, FF FEMALE straight

3

6674688

COUPLER, FF MALE straight

4

15KB0612

FITTING, HYD CONNECTOR

5

7211703

HOSE, HYD for 7171388 standard arm kit - Was 7183403 - C

5

7211898

HOSE, HYD for 7171389 long arm kit - Was 7157683 - C

6

6610510

TIE

7

7199435

CYLINDER, CLAMP See Illustration CLAMP/ PE3415 Was 6817386 - A

8

7171044

PIN

9

6534111

WASHER

10

6534154

RING retainer

11

10H25

FITTING, GREASE 5

12

7150440

CLAMP

13

7151864

PIN, PIVOT CLAMP

14

7CM1090

BOLT, HEX SOCKET

15

4DM10

NUT

16

6652915

SEAL, OIL

17

6808246

BUSHING wear

18

7157744

PIN, PIVOT CLAMP

19

7CM1080

BOLT

20

6727324

DECAL, LOGO BOBCAT AND HEAD

21

7211704

HOSE, HYD for 7171388 standard arm kit - Was 7183402 - C

21

7211898

HOSE, HYD for 7171389 long arm kit - Was 7157683 - C

22

6987291

INSTRUCTIONS
