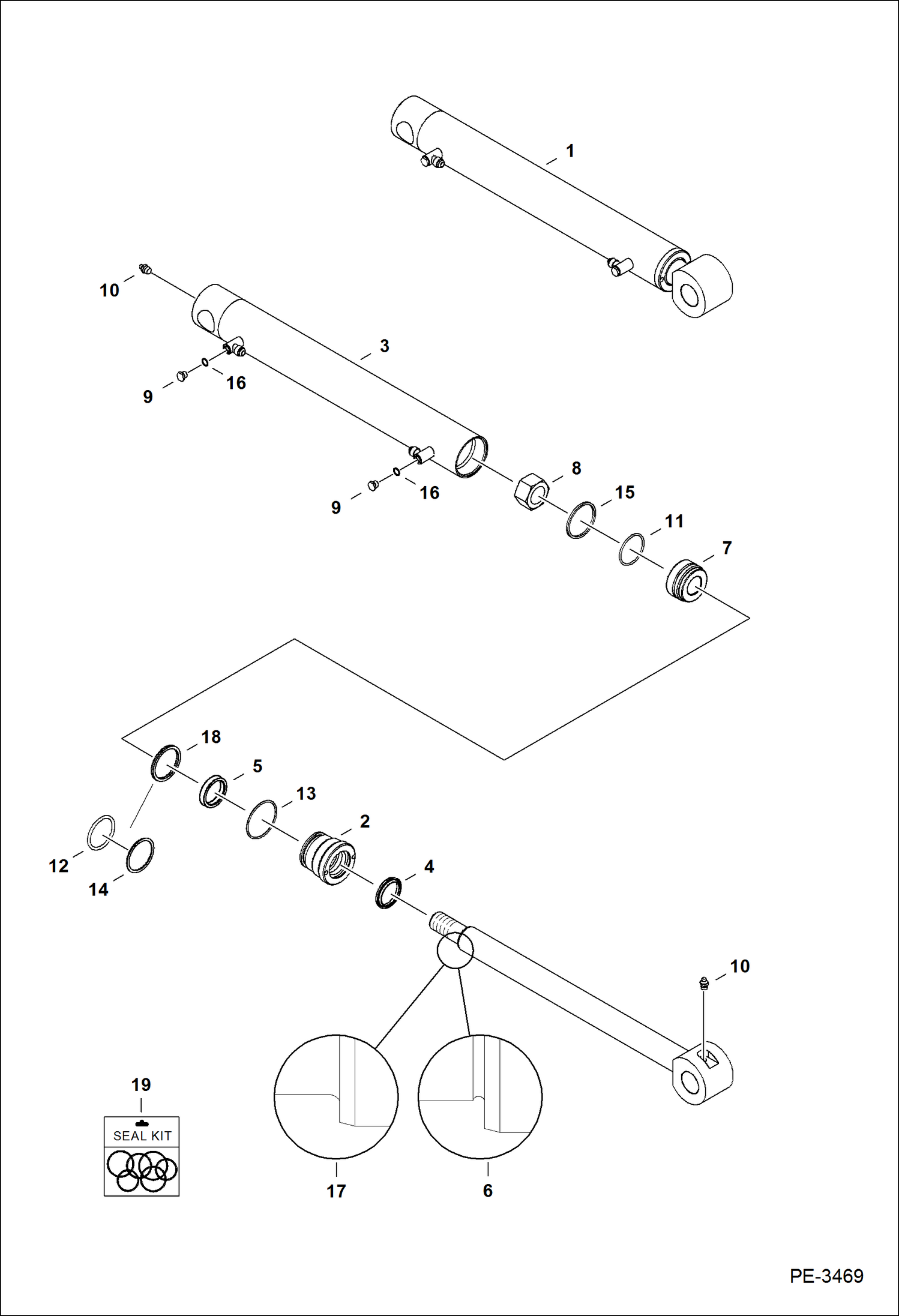

Запчасти Bobcat CLAMPS CLAMP (Hydraulic Cylinder)(335,435) Экскаваторы

1

CYLINDER NLA - W/Ref. 2-16 - Order 7148455 - Was 6814063 - A

1

7148455

CYLINDER W/Ref. 2-5 & 7-17

2

6597009

HEAD

3

6814069

HOUSING

4

6686999

WIPER, ROD CYL

5

6667327

SEAL

6

ROD NLA - Order 7148456 rod & 7147316 piston - Also Order Ref. 10 - Was 6814065 - A

7

7147316

PISTON Was 6814068 - A

8

6810540

NUT piston

9

6812171

PLUG W/Ref. 16

10

10H25

FITTING, GREASE 5 grease

11

25K30202

O RING 10 Was 54K30202 - B

12

25K40208

O RING 10 Was 54K40208 - B

13

82K230

O-RING

14

73K228

BACK-UP RING back-up

15

1522534

SEAL piston

16

75K6

O-RING

17

7148456

ROD Also Order Ref. 10

18

7008778

SEAL, QUAD

19

7137869

KIT, SEAL Ref. 4, 5, 8, 11, 13, 15, & 18 - Was 6813752 - A
