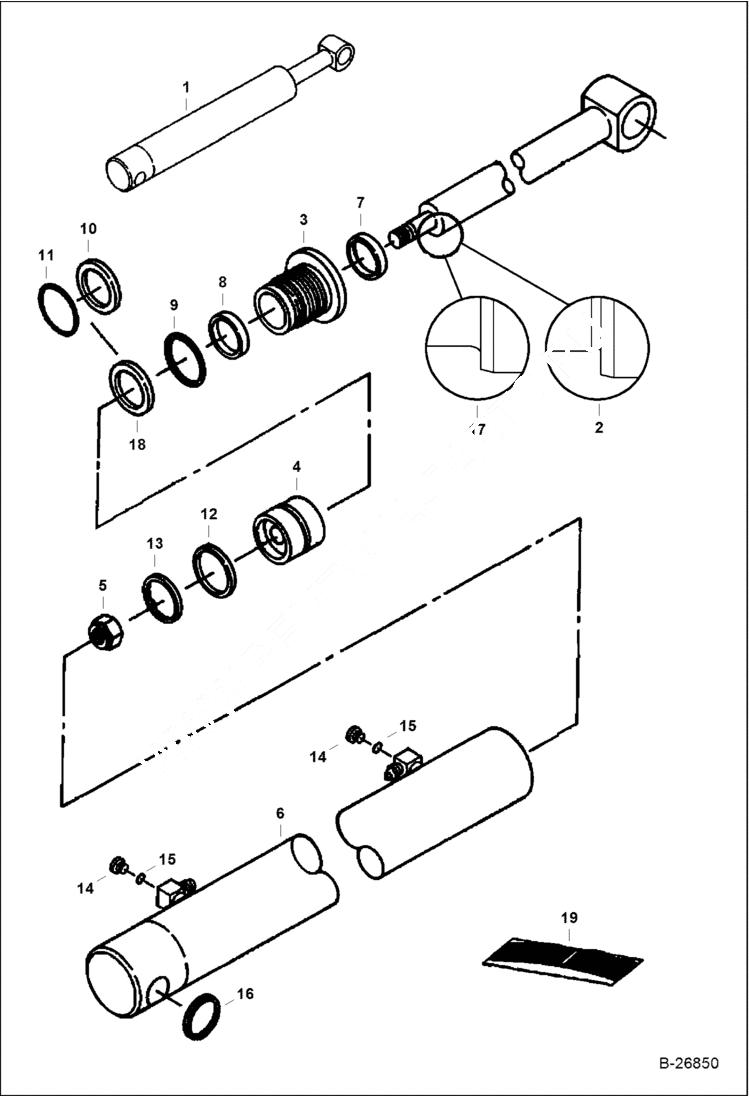

Запчасти Bobcat CLAMPS CLAMP CYLINDER 2.75 I.D. & 3.25 O.D. Housing Экскаваторы

1

CYLINDER NLA - Ref. 2-15 - Order cylinder 7146420, (2) hose 6808277 & (2) 15KB812 connector

1

CYLINDER NLA - W/Ref. 2-15 - 37 degree flare fitting - Order 7146420 - Was 6808069 - A

1

7146420

CYLINDER W/Ref. 3-15 & 17

2

ROD NLA - Order 7146679 rod & 7147310 piston - Was 6806360

3

6532564

HEAD

4

7147310

PISTON Was 6806368 - A

5

92D20

NUT

6

6806364

HOUSING for face seal fitting

6

6808070

HOUSING for 37 degree flare fitting

7

6686998

WIPER, ROD CYL Was 6666545 - A

8

6667328

SEAL

9

25K40224

O RING 10 Was 54K40224 - B

10

25K60212

O RING 10 Was 54K60212 - B

11

73K332

RING

12

6516229

PISTON SEAL

13

25K30210

O-RING Was 54K30210 - B

14

PLUG NLA - W/Ref. 16 - tapered boss face - allen socket head - Was 90KV00005B - B

14

90K5

PLUG W/Ref. 16 - flat boss face - allen socket head

14

6812171

PLUG W/Ref. 15 - flat boss face - allen socket head

15

95K6

O'RING tapered boss face

15

75K6

O-RING flat boss face

16

6806866

SPACER Use on base end

17

7146679

ROD

18

7008356

SEAL, QUAD

19

7137933

KIT, SEAL W/Ref. 5, 7-9, 12, 13, & 18 - Was 6810717 - A
