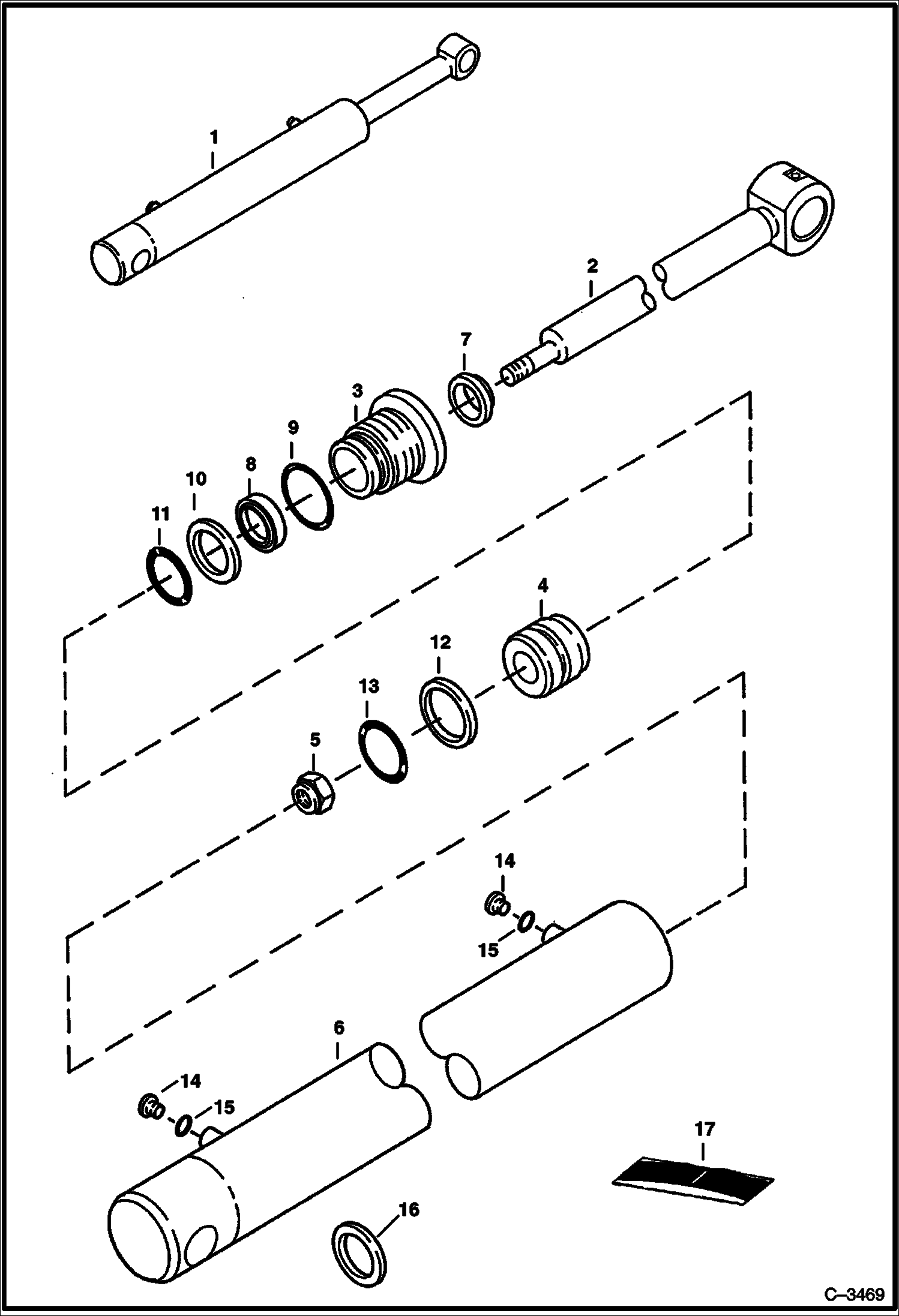

Запчасти Bobcat CLAMPS CLAMP (NAP Hydraulic Cylinder)(337,341) (3.25 I.D. & 3.75 O.D. Housing) Экскаваторы

1

CYLINDER NLA - Ref. 2-16 - Order 7146420 , (2) hose 6808277 & (2) 755054B connector - Was 6802570 - A

2

ROD NLA - Order 7146420 - Was 6802551 - A

3

6537294

HEAD

4

6802584

PISTON

5

92D20

NUT

6

HOUSING NLA - Order 6806357 - Was 6802550 - A

7

6686998

WIPER, ROD CYL Was 6666545 - A

8

6667328

SEAL Was 6538277 - A

9

82K236

O-RING Was 58K000236B - A

10

73K234

BACK-UP RING back-up - Was 80K234 - A

11

58K234

O RING 10 Was 54K40300 - B

12

6513466

PISTON RG

13

25K30226

O RING 10 Was 54K30226 - B

14

47K5

PLUG W/Ref. 16

15

79K6

O RING 10

16

6802557

SPACER

17

7137966

SEAL KIT W/Ref. 5, 9-15 - Was 6810470 - A
