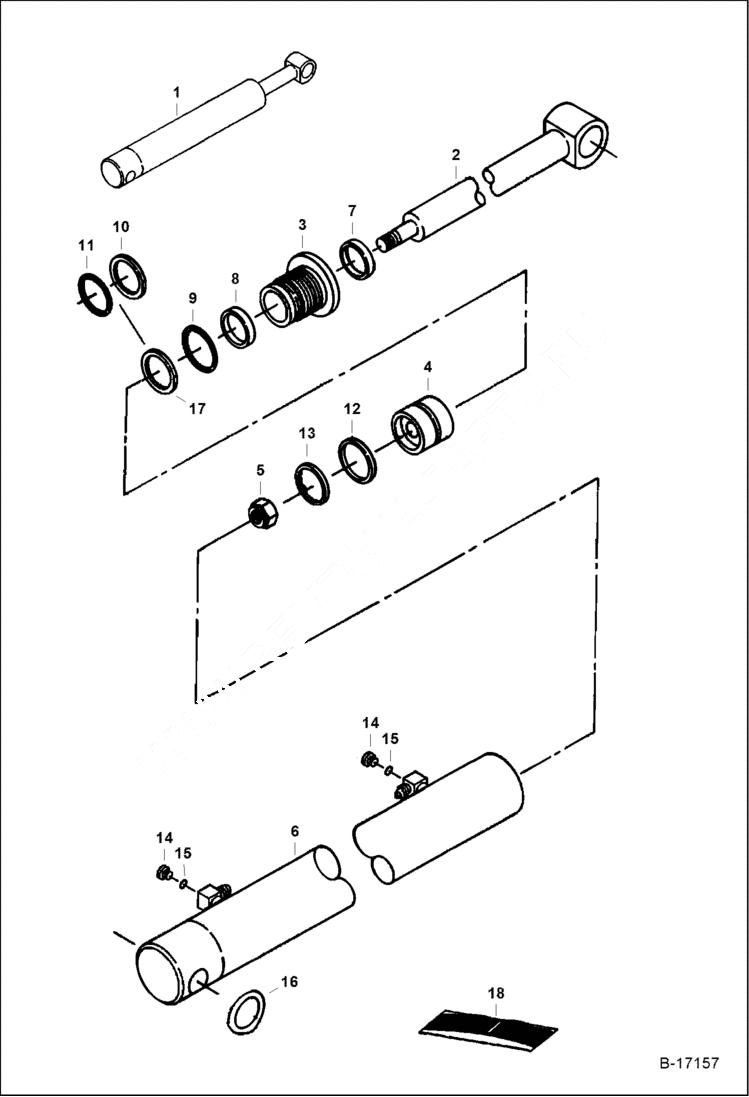

Запчасти Bobcat CLAMPS CLAMP (NAP Hydraulic Cylinder)(225,231,325,328,331,334) (2.25 I.D. & 2.625 O.D. Housing) Экскаваторы

1

CYLINDER See Illustration CLAMP/ PE3415 NLA - Order 6817386 Cylinder - Was 6805607

2

6802237

ROD W/Ref. 7

3

6539236

HEAD

4

6806356

PISTON

5

6810539

NUT Was 6804592 - A

6

6805709

HOUSING

7

6690707

WIPER, ROD CYL Was 6665086 - A

8

6538141

SEAL

9

82K140

O-RING Was 58K140 - A

10

80K328

BK UP RG Back-up

11

25K60128

O RING 10 Was 54K60128 - A

12

6519328

SEAL

13

25K30126

O RING 10 Was 54K30126 - B

14

90KV2

PLUG W/Ref. 15

15

95K3

O'RING

16

6806111

SPACER See Illustration CLAMP/ TS1576 Use W/Cylinder 6805607

17

SEAL. QUAD NLA - Order Ref. 10 & 11 - Was 7207334 - A

18

7135557

KIT, SEAL Ref. 5, 7-13 - Was 6816535 - A
