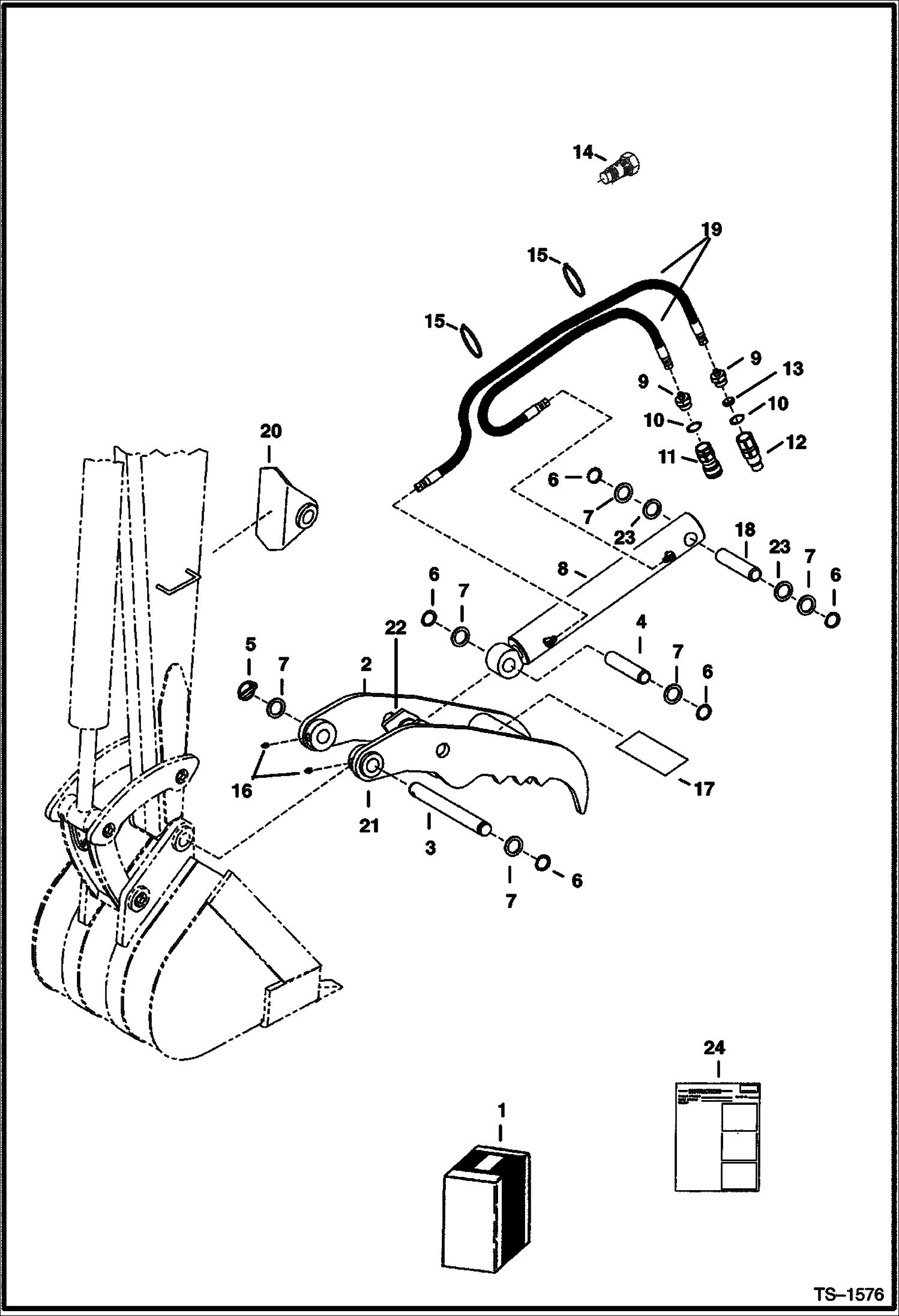

Запчасти Bobcat CLAMPS CLAMP (225,231,325,328,331,334,430) (279,4 mm - 11 Wide Clamp) Экскаваторы

1

KIT See Illustration CLAMP/ PE2289 NLA - Clamp - read instructions for special ordering information(See Link Ref. 24) - Was SALES # 6714449

2

6713831

CLAMP 11'' (279,4 mm) wide

3

6713824

PIN, PIVOT CLAMP 13.8'' (350,52 mm) long

4

6595660

PIN Use at both ends of cylinder - 162 mm (6.38'') long

4

6595660

PIN

5

6560382

PIN, LOCK Lock Ring

6

6534154

RING

7

6534111

WASHER

8

CYLINDER See Illustration CLAMP/ B17156 See Illustration CLAMP/ PE3415 See Illustration CLAMP/ B17157

9

15KB0612

FITTING, HYD CONNECTOR W/Ref. 10 - Was 6578812 - A

10

79K12

O RING 10

11

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

12

6674688

COUPLER, FF MALE straight - Was 6667808 - A

12

6679841

SEAL Was 6672026 - A

13

6668115

ORIFICE Use on male coupler - not in kit

14

6674259

VALVE relief - 2950# - base end - not in kit

14

6680065

VALVE relief - 2950# - base end

15

6624289

STRAP, TIE

16

10H25

FITTING, GREASE 5

17

6727324

DECAL, LOGO BOBCAT AND HEAD Was 6567987 - A

18

6806894

PIN

19

6714274

HOSE 37'' (940 mm) long

19

6711670

HOSE 46'' (1168 mm) long

19

6714741

HOSE, HYD ASSY W/GUARD 12'' (304,8 mm) hose extension - for long arm option only - not included with kit - must be ordered separately

20

6713832

MOUNT Clamp Cylinder ( if required) not included with Clamp Kit - newer models are factory equipped with mount - check before ordering to determine if needed

21

6713827

BUSHING weld-on

22

6713828

BUSHING weld-on

23

6806111

SPACER Use W/Cylinder 6805607 - not in kit

24

6900367

INSTRUCTIONS
